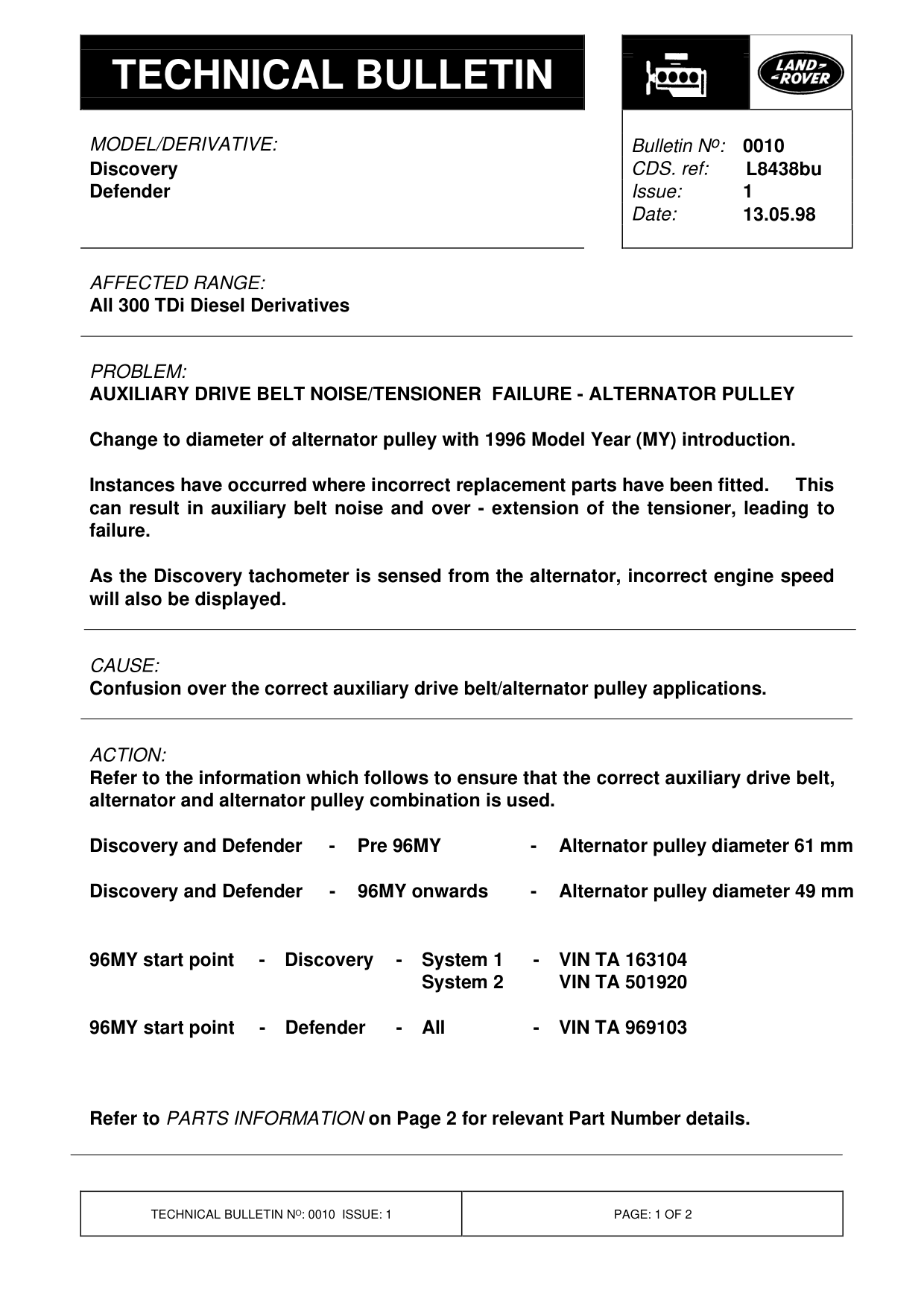

Auxiliary drive belt noise/tensioner failure - alternator pulley

AUXILIARY DRIVE BELT NOISE/TENSIONER FAILURE - ALTERNATOR PULLEY

Model

Discovery Defender

Affected vehicles

All 300 TDi Diesel Derivatives

Date

1998-05-13

Reference

Bulletin 0010, CDS ref L8438bu

Bulletin text

Discovery Defender

AFFECTED RANGE:

All 300 TDi Diesel Derivatives

PROBLEM:

AUXILIARY DRIVE BELT NOISE/TENSIONER FAILURE - ALTERNATOR PULLEY

Change to diameter of alternator pulley with 1996 Model Year (MY) introduction.

Instances have occurred where incorrect replacement parts have been fitted. This can result in auxiliary belt noise and over - extension of the tensioner, leading to failure.

As the Discovery tachometer is sensed from the alternator, incorrect engine speed will also be displayed.

CAUSE:

Confusion over the correct auxiliary drive belt/alternator pulley applications.

ACTION:

Refer to the information which follows to ensure that the correct auxiliary drive belt, alternator and alternator pulley combination is used.

Discovery and Defender Pre 96MY

Discovery and Defender 96MY onwards

96MY start point Discovery System 1 System 2

96MY start point Defender All

Refer to PARTS INFORMATION on Page 2 for relevant Part Number details.

Bulletin N o : 0010

1 13.05.98

Alternator pulley diameter 61 mm

Alternator pulley diameter 49 mm

VIN TA 163104 VIN TA 501920

VIN TA 969103

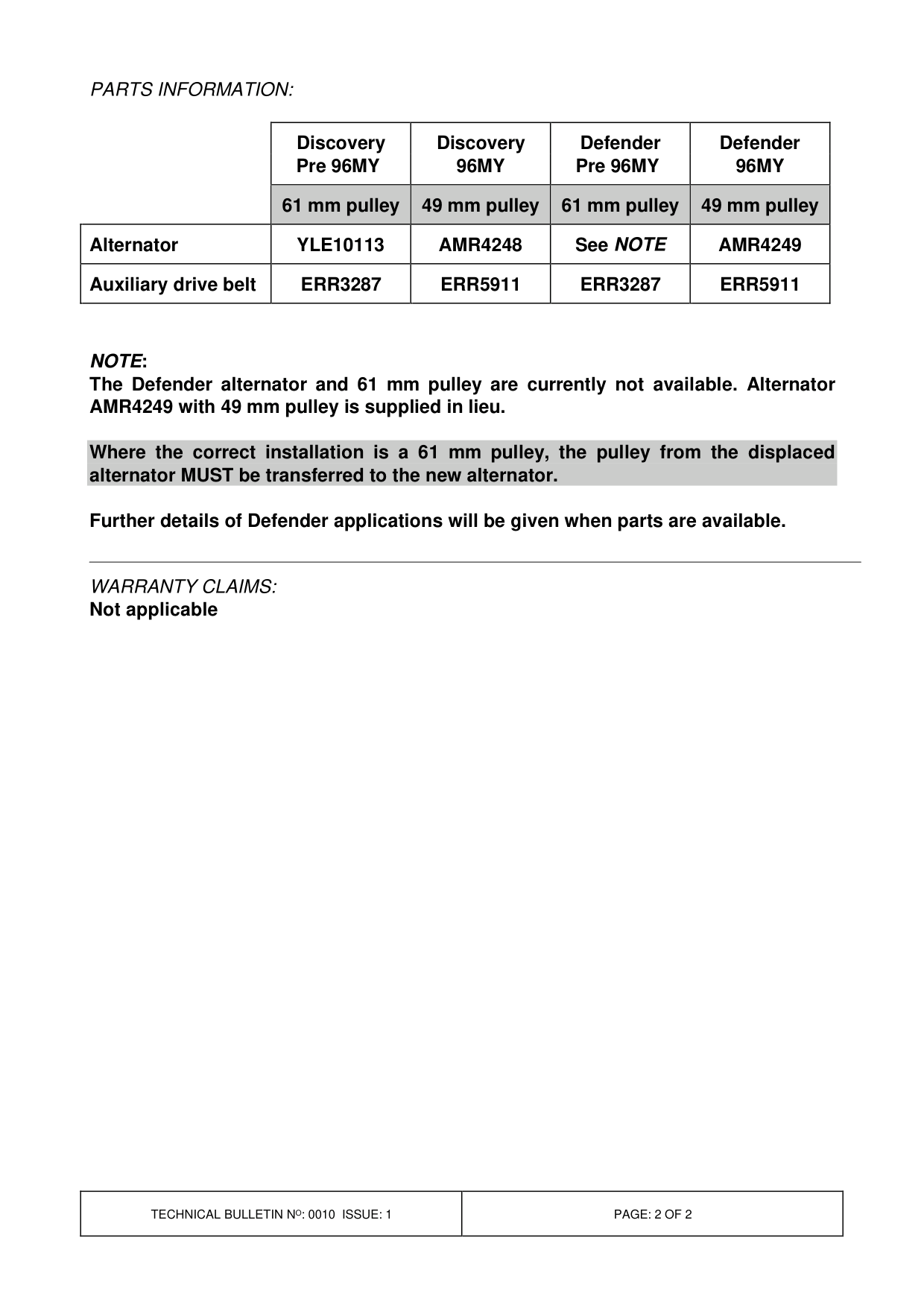

PARTS INFORMATION:

Discovery Pre 96MY

61 mm pulley

Alternator YLE10113

Auxiliary drive belt ERR3287

NOTE:

The Defender alternator and 61 mm pulley are currently not available. Alternator AMR4249 with 49 mm pulley is supplied in lieu.

Where the correct installation is a 61 mm pulley, the pulley from the displaced alternator MUST be transferred to the new alternator.

Further details of Defender applications will be given when parts are available.

WARRANTY CLAIMS: Not applicable

Discovery Defender Defender 96MY Pre 96MY 96MY

49 mm pulley 61 mm pulley 49 mm pulley

AMR4248 See NOTE AMR4249

ERR5911 ERR3287 ERR5911
