Cylinder head gasket - new part introduction

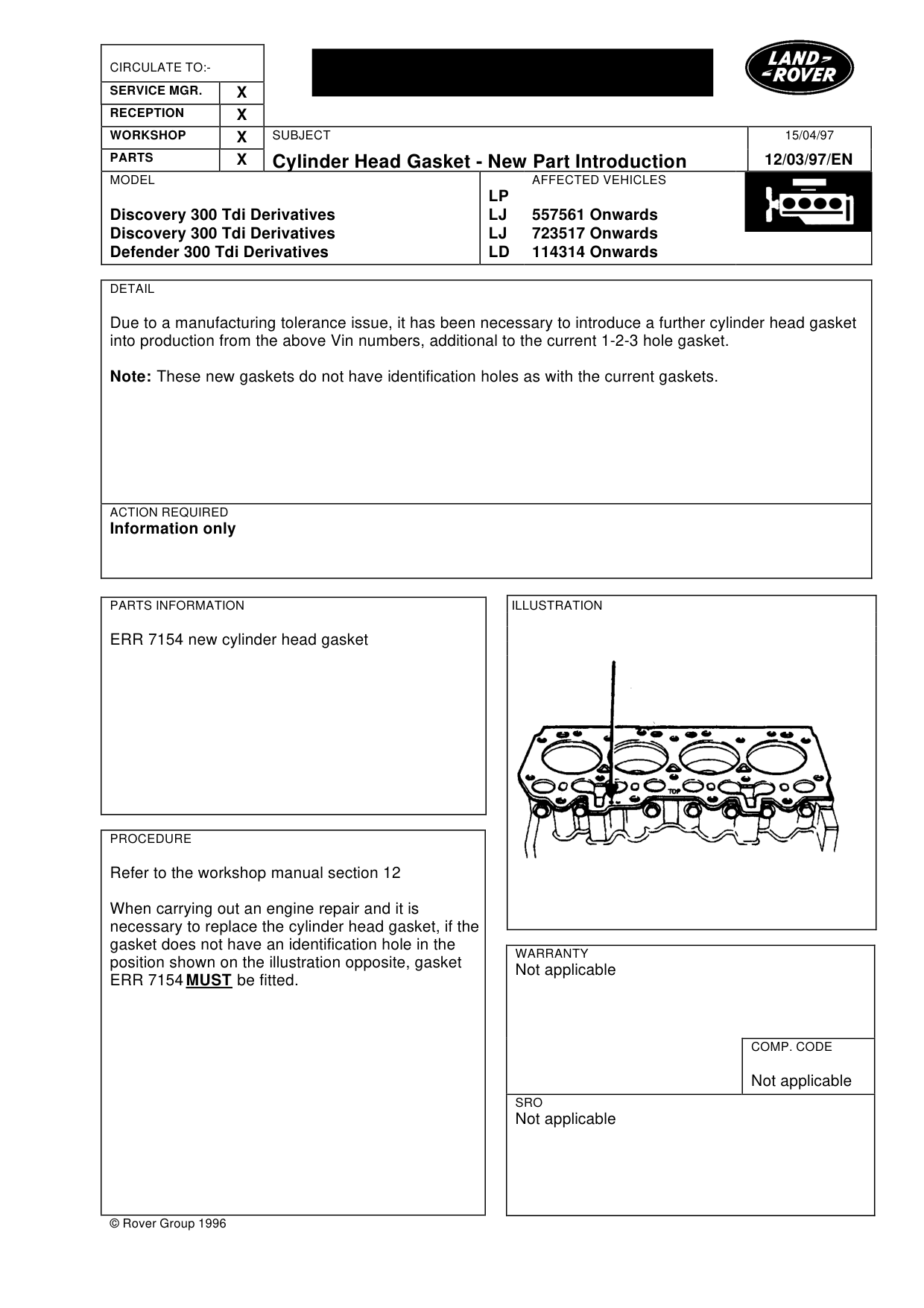

CYLINDER HEAD GASKET - NEW PART INTRODUCTION

Model

Discovery 300 Tdi Derivatives Discovery 300 Tdi Derivatives Defender 300 Tdi Derivatives

Affected vehicles

557561 Onwards 723517 Onwards 114314 Onwards

Date

1997-04-15

Reference

15/04/97

Bulletin text

Cylinder Head Gasket - New Part Introduction

MODEL

Discovery 300 Tdi Derivatives Discovery 300 Tdi Derivatives Defender 300 Tdi Derivatives

DETAIL

Due to a manufacturing tolerance issue, it has been necessary to introduce a further cylinder head gasket into production from the above Vin numbers, additional to the current 1-2-3 hole gasket.

Note: These new gaskets do not have identification holes as with the current gaskets.

ACTION REQUIRED

Information only

PARTS INFORMATION

ERR 7154 new cylinder head gasket

PROCEDURE

Refer to the workshop manual section 12

When carrying out an engine repair and it is necessary to replace the cylinder head gasket, if the gasket does not have an identification hole in the position shown on the illustration opposite, gasket ERR 7154 MUST be fitted.

© Rover Group 1996

15/04/97

12/03/97/EN

AFFECTED VEHICLES

LP LJ 557561 Onwards LJ 723517 Onwards LD 114314 Onwards

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
