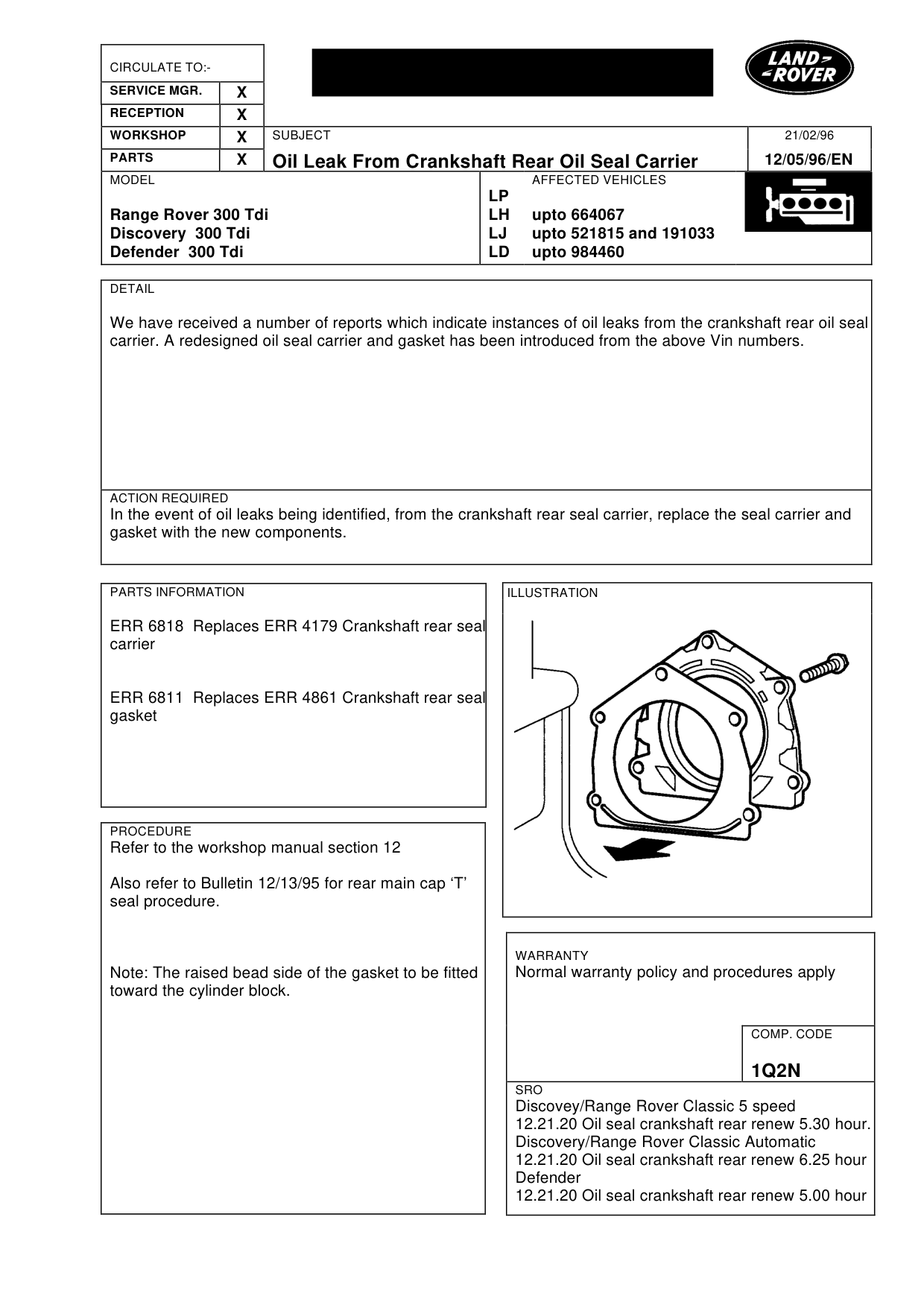

Oil leak from crankshaft rear oil seal carrier

OIL LEAK FROM CRANKSHAFT REAR OIL SEAL CARRIER

Model

Range Rover 300 Tdi Discovery 300 Tdi Defender 300 Tdi

Affected vehicles

upto 664067 upto 521815 and 191033 upto 984460

Date

1996-02-21

Reference

21/02/96

Bulletin text

Oil Leak From Crankshaft Rear Oil Seal Carrier

MODEL

Range Rover 300 Tdi Discovery 300 Tdi Defender 300 Tdi

DETAIL

We have received a number of reports which indicate instances of oil leaks from the crankshaft rear oil seal carrier. A redesigned oil seal carrier and gasket has been introduced from the above Vin numbers.

ACTION REQUIRED

In the event of oil leaks being identified, from the crankshaft rear seal carrier, replace the seal carrier and gasket with the new components.

PARTS INFORMATION

ERR 6818 Replaces ERR 4179 Crankshaft rear seal carrier

ERR 6811 Replaces ERR 4861 Crankshaft rear seal gasket

PROCEDURE

Refer to the workshop manual section 12

Also refer to Bulletin 12/13/95 for rear main cap ‘T’ seal procedure.

Note: The raised bead side of the gasket to be fitted toward the cylinder block.

21/02/96

12/05/96/EN

AFFECTED VEHICLES

LP LH upto 664067 LJ upto 521815 and 191033 LD upto 984460

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

1Q2N

SRO

Discovey/Range Rover Classic 5 speed 12.21.20 Oil seal crankshaft rear renew 5.30 hour. Discovery/Range Rover Classic Automatic 12.21.20 Oil seal crankshaft rear renew 6.25 hour Defender 12.21.20 Oil seal crankshaft rear renew 5.00 hour
