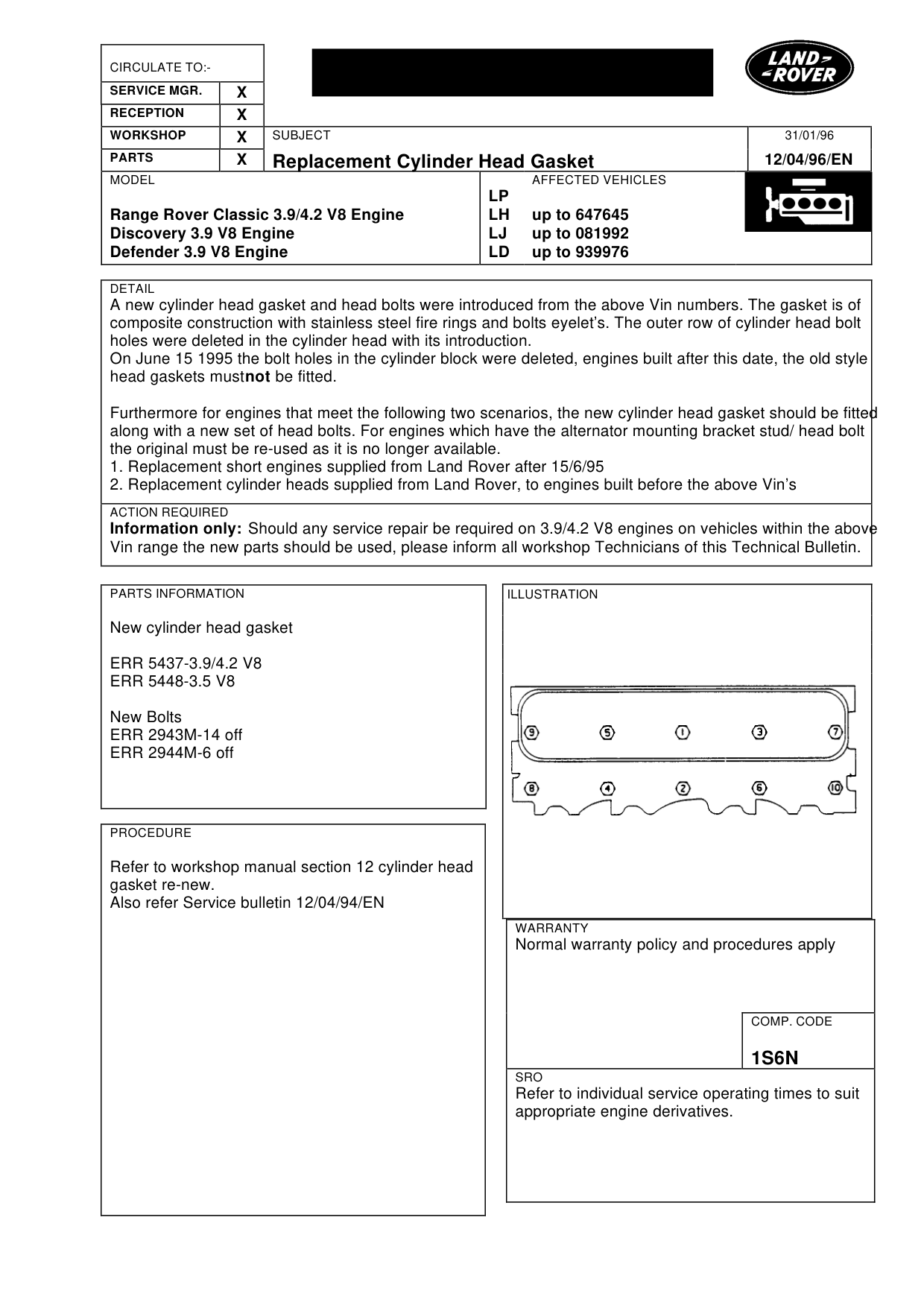

Replacement cylinder head gasket

REPLACEMENT CYLINDER HEAD GASKET

Model

Range Rover Classic 3.9/4.2 V8 Engine Discovery 3.9 V8 Engine Defender 3.9 V8 Engine

Affected vehicles

up to 647645 up to 081992 up to 939976

Date

1996-01-31

Reference

31/01/96

Bulletin text

Replacement Cylinder Head Gasket

MODEL

Range Rover Classic 3.9/4.2 V8 Engine Discovery 3.9 V8 Engine Defender 3.9 V8 Engine

DETAIL

A new cylinder head gasket and head bolts were introduced from the above Vin numbers. The gasket is of composite construction with stainless steel fire rings and bolts eyelet’s. The outer row of cylinder head bolt holes were deleted in the cylinder head with its introduction. On June 15 1995 the bolt holes in the cylinder block were deleted, engines built after this date, the old style head gaskets must not be fitted.

Furthermore for engines that meet the following two scenarios, the new cylinder head gasket should be fitted along with a new set of head bolts. For engines which have the alternator mounting bracket stud/ head bolt the original must be re-used as it is no longer available. 1. Replacement short engines supplied from Land Rover after 15/6/95 2. Replacement cylinder heads supplied from Land Rover, to engines built before the above Vin’s

ACTION REQUIRED

Information only: Should any service repair be required on 3.9/4.2 V8 engines on vehicles within the above Vin range the new parts should be used, please inform all workshop Technicians of this Technical Bulletin.

PARTS INFORMATION

New cylinder head gasket

ERR 5437-3.9/4.2 V8 ERR 5448-3.5 V8

New Bolts ERR 2943M-14 off ERR 2944M-6 off

PROCEDURE

Refer to workshop manual section 12 cylinder head gasket re-new. Also refer Service bulletin 12/04/94/EN

31/01/96

12/04/96/EN

AFFECTED VEHICLES

LP LH up to 647645 LJ up to 081992 LD up to 939976

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

1S6N

SRO

Refer to individual service operating times to suit appropriate engine derivatives.
