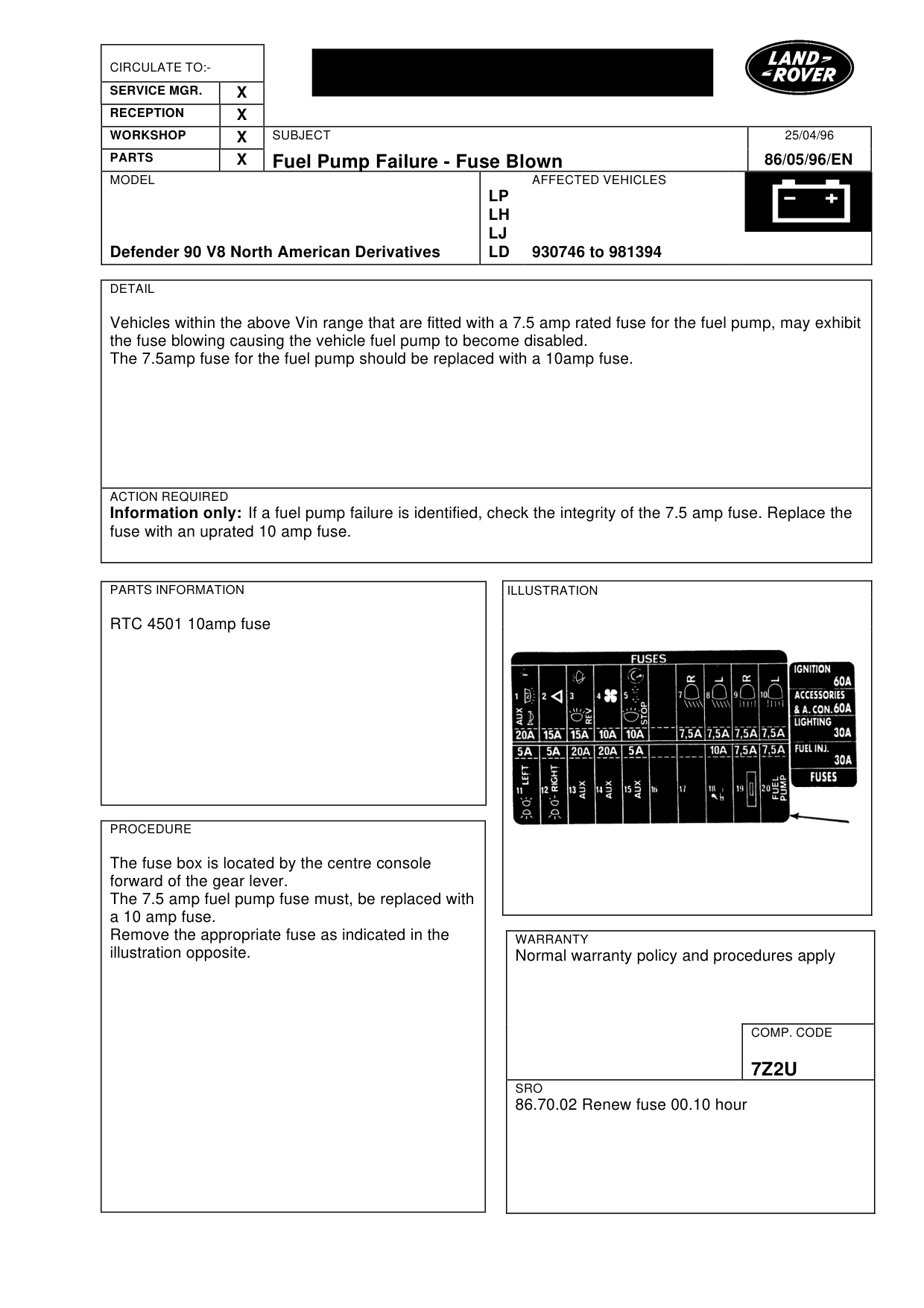

Fuel pump failure - fuse blown

FUEL PUMP FAILURE - FUSE BLOWN

Model

Defender 90 V8 North American Derivatives

Affected vehicles

930746 to 981394

Date

1996-04-25

Reference

25/04/96

Bulletin text

Fuel Pump Failure - Fuse Blown

MODEL

Defender 90 V8 North American Derivatives

DETAIL

Vehicles within the above Vin range that are fitted with a 7.5 amp rated fuse for the fuel pump, may exhibit the fuse blowing causing the vehicle fuel pump to become disabled. The 7.5amp fuse for the fuel pump should be replaced with a 10amp fuse.

ACTION REQUIRED

Information only: If a fuel pump failure is identified, check the integrity of the 7.5 amp fuse. Replace the fuse with an uprated 10 amp fuse.

PARTS INFORMATION

RTC 4501 10amp fuse

PROCEDURE

The fuse box is located by the centre console forward of the gear lever. The 7.5 amp fuel pump fuse must, be replaced with a 10 amp fuse. Remove the appropriate fuse as indicated in the illustration opposite.

25/04/96

86/05/96/EN

AFFECTED VEHICLES

LP LH LJ LD 930746 to 981394

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

7Z2U

SRO

86.70.02 Renew fuse 00.10 hour
