Power steering box replacement

POWER STEERING BOX REPLACEMENT

Model

All models

Affected vehicles

All derivatives

Date

1994-02-18

Reference

18/02/94

Bulletin text

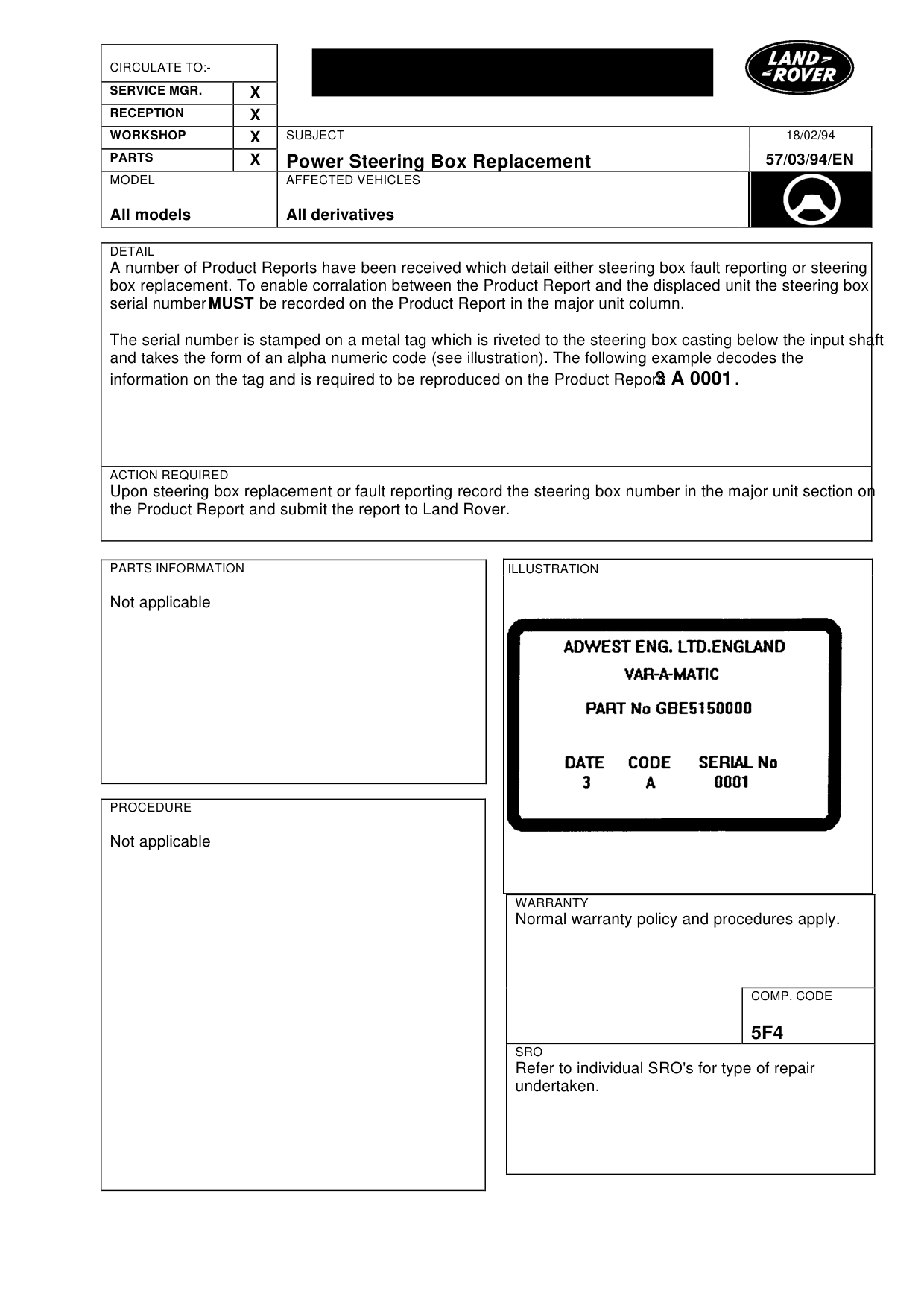

Power Steering Box Replacement

MODEL AFFECTED VEHICLES

All models All derivatives

DETAIL

A number of Product Reports have been received which detail either steering box fault reporting or steering box replacement. To enable corralation between the Product Report and the displaced unit the steering box serial number MUST be recorded on the Product Report in the major unit column.

The serial number is stamped on a metal tag which is riveted to the steering box casting below the input shaft and takes the form of an alpha numeric code (see illustration). The following example decodes the information on the tag and is required to be reproduced on the Product Report:

ACTION REQUIRED

Upon steering box replacement or fault reporting record the steering box number in the major unit section on the Product Report and submit the report to Land Rover.

PARTS INFORMATION

Not applicable

PROCEDURE

Not applicable

18/02/94

57/03/94/EN

3 A 0001 .

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

5F4

SRO

Refer to individual SRO's for type of repair undertaken.
