Clutch pipe joint to master cylinder

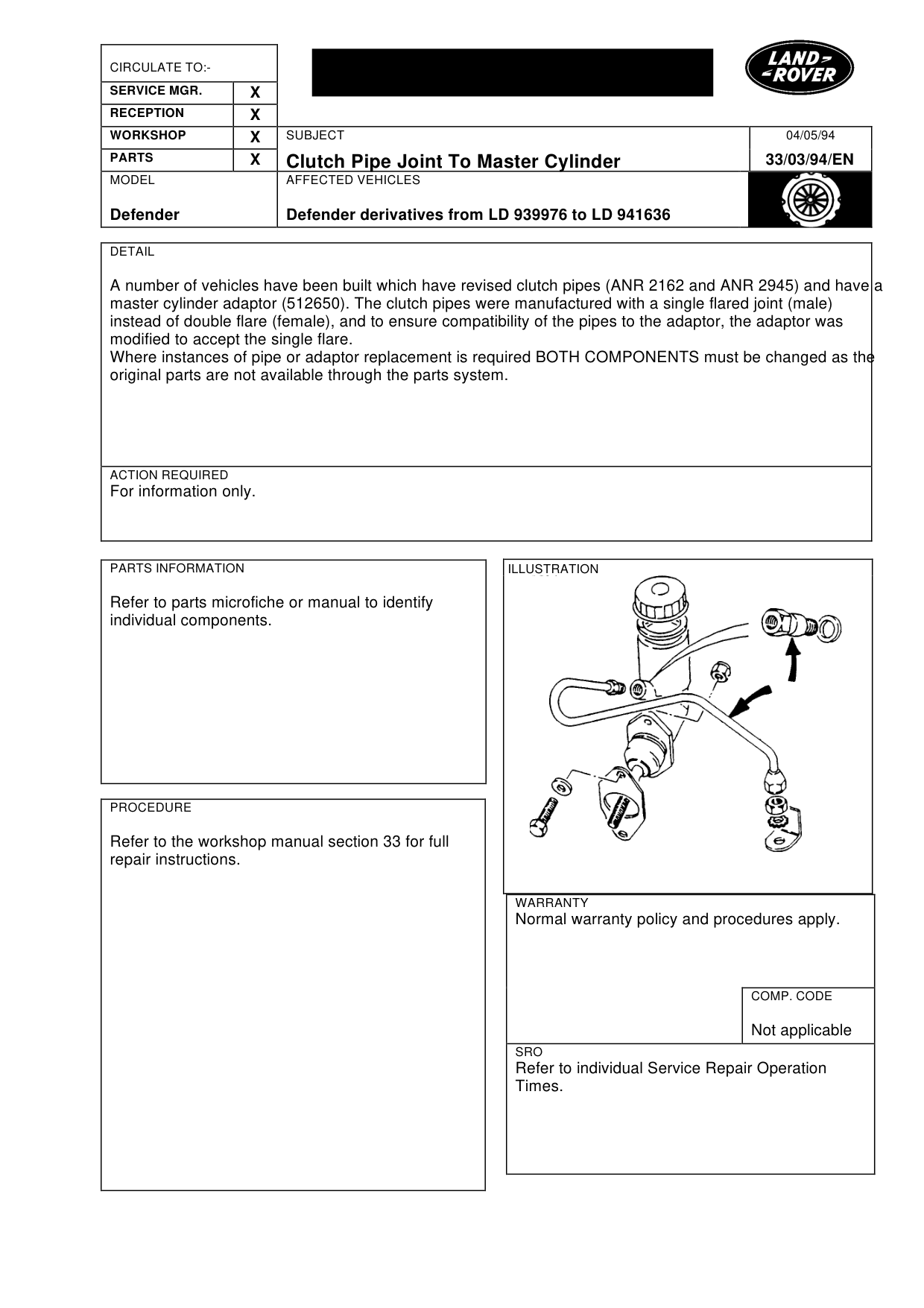

CLUTCH PIPE JOINT TO MASTER CYLINDER

Model

Defender

Affected vehicles

Defender derivatives from LD 939976 to LD 941636

Date

1994-05-04

Reference

04/05/94

Bulletin text

Clutch Pipe Joint To Master Cylinder

MODEL AFFECTED VEHICLES

Defender Defender derivatives from LD 939976 to LD 941636

DETAIL

A number of vehicles have been built which have revised clutch pipes (ANR 2162 and ANR 2945) and have a master cylinder adaptor (512650). The clutch pipes were manufactured with a single flared joint (male) instead of double flare (female), and to ensure compatibility of the pipes to the adaptor, the adaptor was modified to accept the single flare. Where instances of pipe or adaptor replacement is required BOTH COMPONENTS must be changed as the original parts are not available through the parts system.

ACTION REQUIRED

For information only.

PARTS INFORMATION

Refer to parts microfiche or manual to identify individual components.

PROCEDURE

Refer to the workshop manual section 33 for full repair instructions.

04/05/94

33/03/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

Not applicable

SRO

Refer to individual Service Repair Operation Times.
