R380 Gearbox - Mainshaft New Part Introduction

MODEL

New Range Rover R380 Gearbox Derivatives Range Rover Classic R380 Gearbox Derivatives Discovery R380 Gearbox Derivatives Defender R380 Gearbox Derivatives

DETAIL

th gear retaining segment groove, a new mainshaft has been To improve mainshaft strength around the 5 introduced with a larger diameter fillet radius inside the groove. This change also requires modified segments so that they seat in their correct position within the groove. In the event of a need to change a mainshaft, the new mainshaft part number should be quoted together with the new segments. If a mainshaft replacement is undertaken on vehicles prior gearbox number 0417153J then the segment retaining ring must be replaced by the later type. Note: The new segments are interchangeable between the old and new mainshaft but the old segments will only fit the old mainshaft. Note: Issue 2 of this bulletin supersedes previous 37/07/96 as the information in the detail and parts sections has been amended.

ACTION REQUIRED

In the event of a mainshaft failure, repair using the new introduced mainshaft see new part number.

PARTS INFORMATION

FTC 5287 Mainshaft

FTC 5288 Segments 2 off

FTC 4524 Segment ring (later type)

PROCEDURE

Refer to the workshop manual section 37 for strip and re-assembly of the mainshaft.

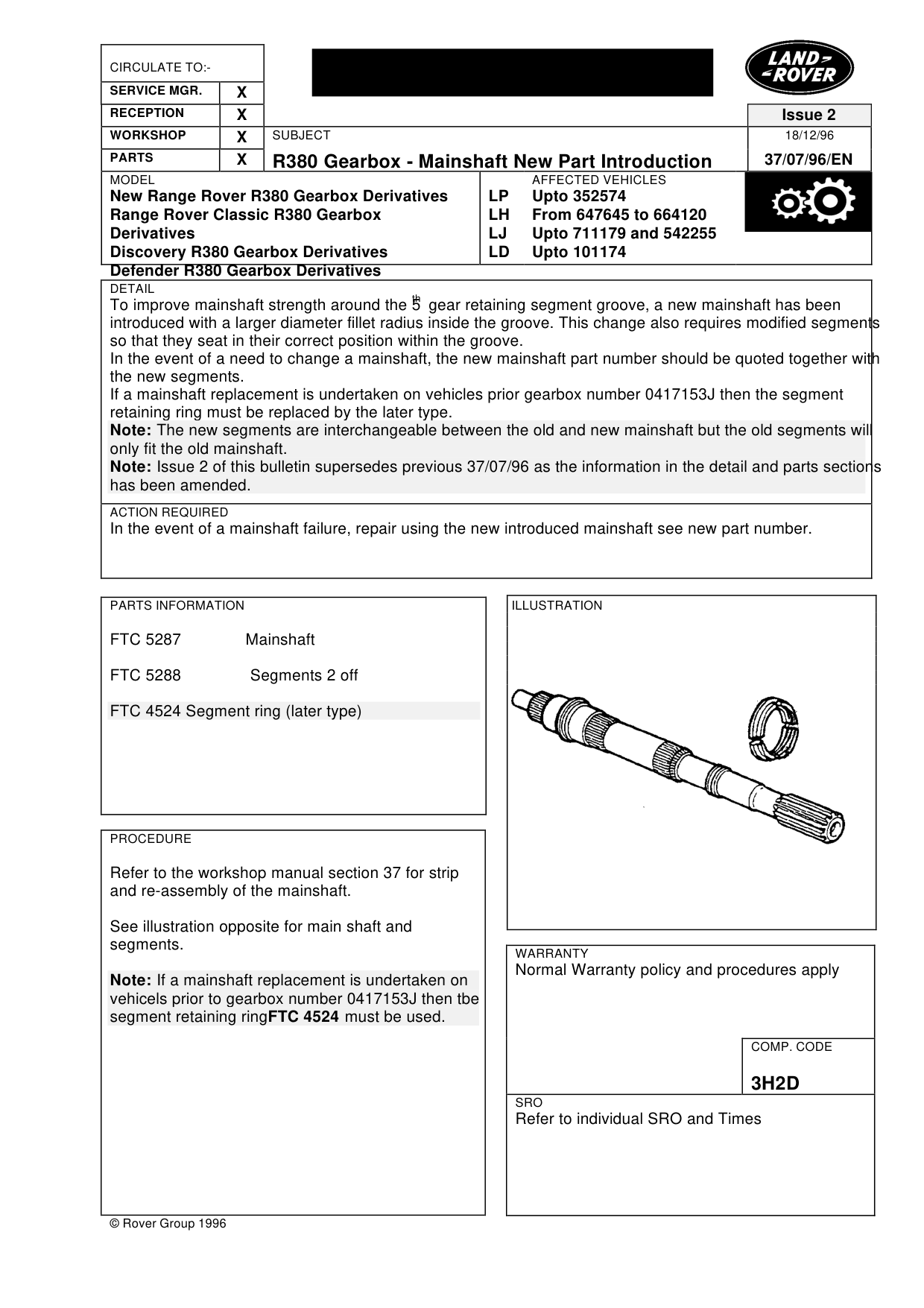

See illustration opposite for main shaft and segments.

Note: If a mainshaft replacement is undertaken on vehicels prior to gearbox number 0417153J then tbe segment retaining ring FTC 4524 must be used.

© Rover Group 1996

Issue 2 18/12/96

37/07/96/EN

AFFECTED VEHICLES

LP Upto 352574 LH From 647645 to 664120 LJ Upto 711179 and 542255 LD Upto 101174

WARRANTY

Normal Warranty policy and procedures apply

COMP. CODE

3H2D

SRO

Refer to individual SRO and Times
