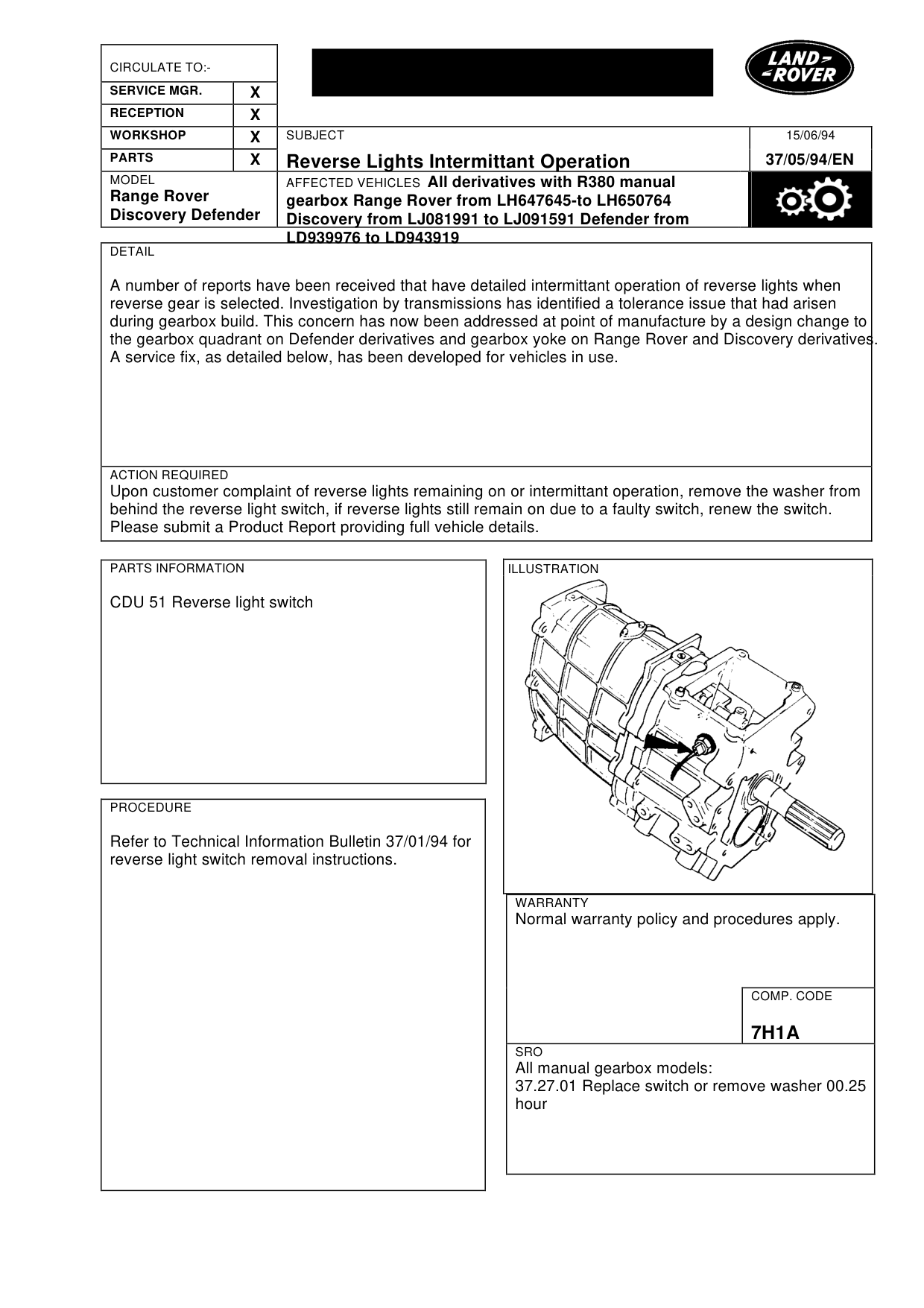

Reverse lights intermittant operation R380

REVERSE LIGHTS INTERMITTANT OPERATION R380

Model

Range Rover Discovery Defender

Date

1994-06-15

Reference

15/06/94

Bulletin text

Reverse Lights Intermittant Operation AFFECTED VEHICLES All derivatives with R380 manual

MODEL

Range Rover gearbox Range Rover from LH647645-to LH650764 Discovery Defender Discovery from LJ081991 to LJ091591 Defender from LD939976 to LD943919

DETAIL

A number of reports have been received that have detailed intermittant operation of reverse lights when reverse gear is selected. Investigation by transmissions has identified a tolerance issue that had arisen during gearbox build. This concern has now been addressed at point of manufacture by a design change to the gearbox quadrant on Defender derivatives and gearbox yoke on Range Rover and Discovery derivatives. A service fix, as detailed below, has been developed for vehicles in use.

ACTION REQUIRED

Upon customer complaint of reverse lights remaining on or intermittant operation, remove the washer from behind the reverse light switch, if reverse lights still remain on due to a faulty switch, renew the switch. Please submit a Product Report providing full vehicle details.

PARTS INFORMATION

CDU 51 Reverse light switch

PROCEDURE

Refer to Technical Information Bulletin 37/01/94 for reverse light switch removal instructions.

15/06/94

37/05/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

7H1A

SRO

All manual gearbox models: 37.27.01 Replace switch or remove washer 00.25 hour
