300Tdi Defender
76
CHASSIS AND BODY
24
REPAIR

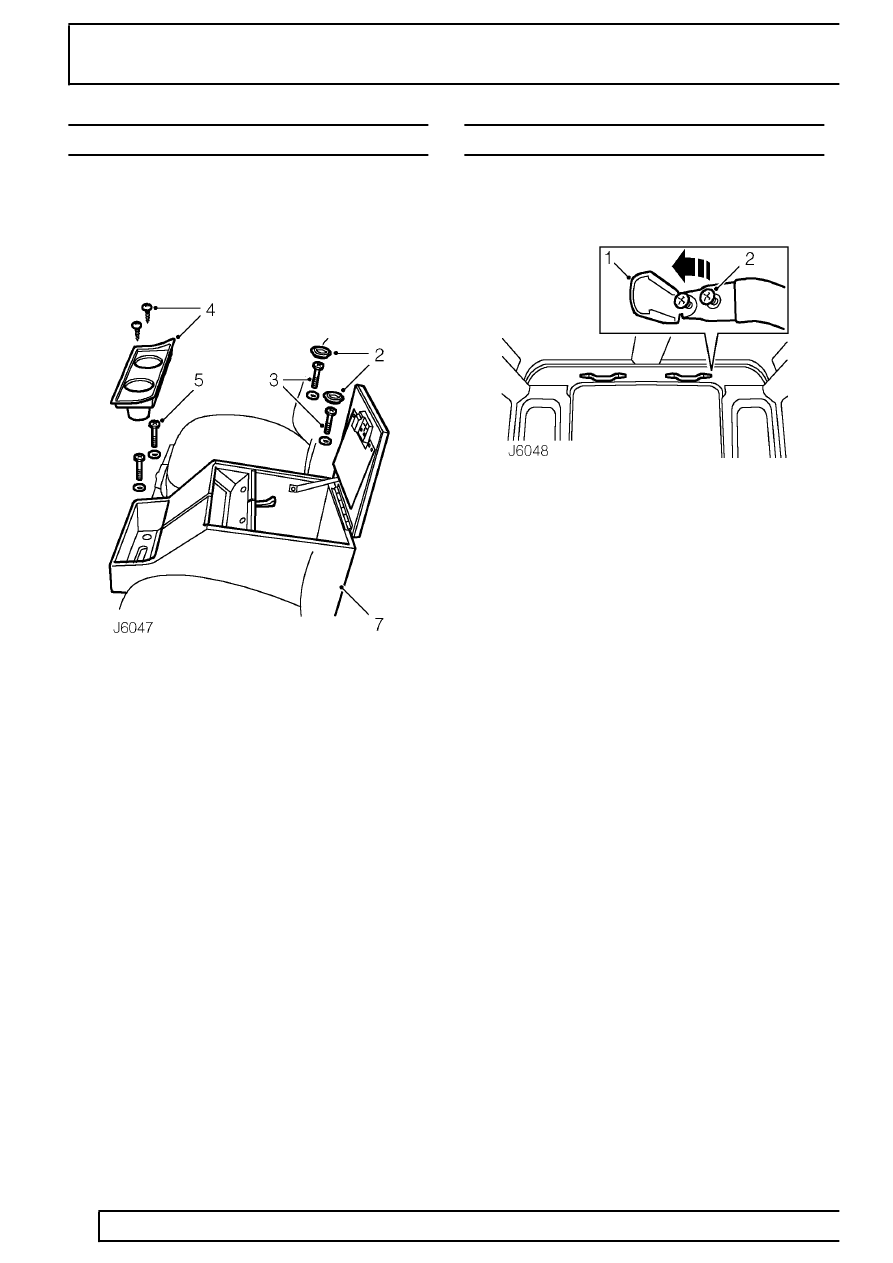

CUBBY BOX - 90/110 STATION WAGON
Service repair no - 76.25.04
Remove
1. Remove radio/cassette player, if fitted.
2. Open cubby box lid and remove 2 caps
concealing fixing bolts.
3. Remove fixing bolts and washers.
4. Remove 2 screws and lift cup holder from cubby
box.
5. Unscrew 2 bolts securing front of cubby box to
floor mounting.
6. Lift cubby box and, if applicable, release
radio/cassette player leads.
7. If fitted, disconnect multi-plug from EGR control
unit, located on base of cubby box.
8. Remove cubby box.
Refit
9. Position cubby box to mounting and, if
applicable, insert radio/ cassette player leads.
10. Secure front of cubby box to floor and fit cup
holder.
11. Open cubby box lid, secure in position, and fit
bolt caps.
12. Fit radio/cassette player, if fitted.
REAR GRAB HANDLE - 90/110 STATION WAGON
Service repair no - 76.58.35
Remove
1. Carefully prise top and bottom edges of finisher
caps from grab handle and then hinge outwards
to gain access to fixing screws.
2. Remove 4 fixing screws and detach grab handle
from rear end trim panel.
Refit
3. Position grab handle on rear end trim panel and
secure with 4 fixing screws.
4. Press finisher caps over screws.
