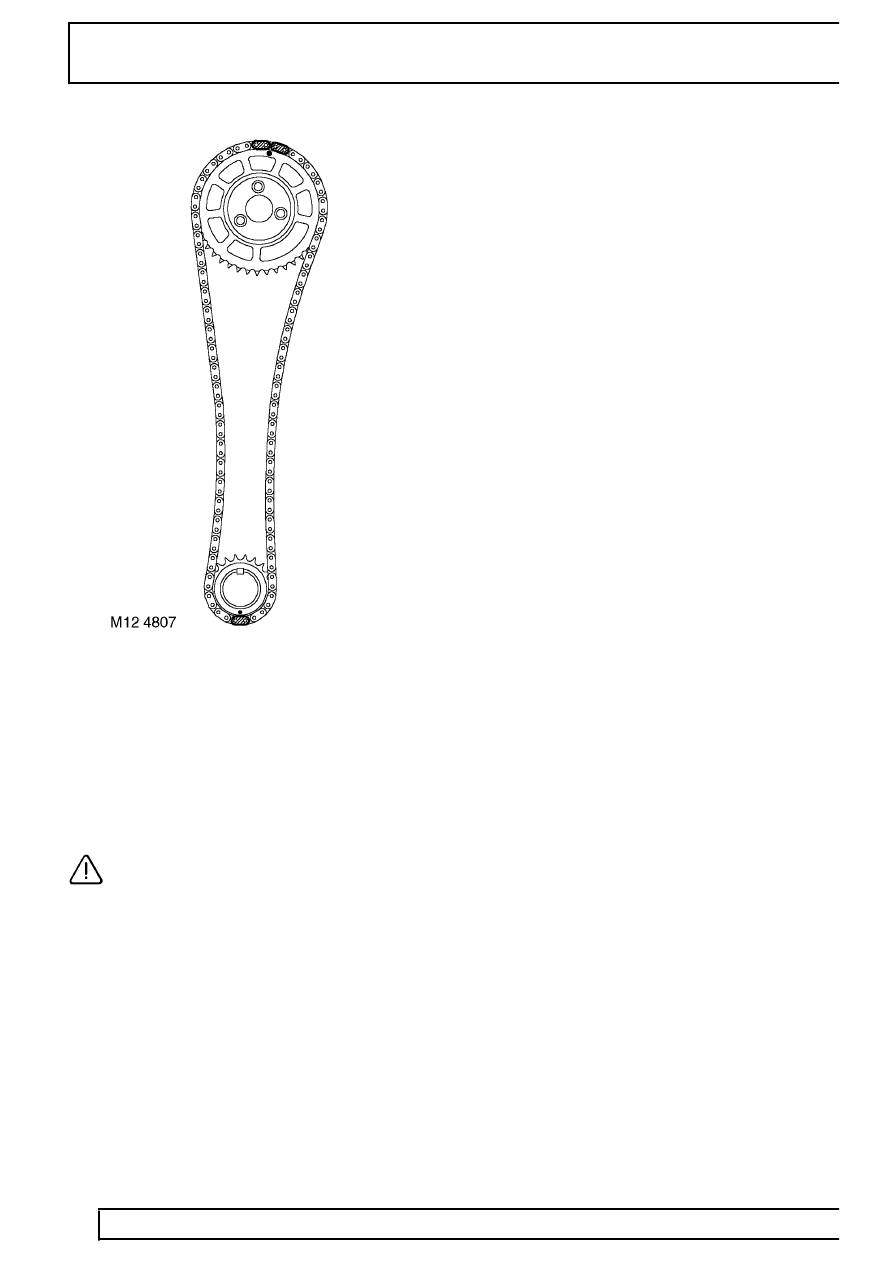

23. Fit camshaft sprocket to timing chain with timing
mark between the 2 bluelinks.
24. Fit timing chain to crankshaft sprocket aligning
blue link to timing mark.
25. Clean timing cover and mating face.
26. Apply an even film of sealant, Part No. STC
4600 to timing cover and spread to an even film
using a roller.
CAUTION: Assembly and bolt tightening
must be completed within 20 minutes of
applying sealant.
27. With assistance, fit timing cover, connect
vacuum pump drain hose and working
progressively, tighten bolts to 27 Nm (20 lbf.ft) .
28. Secure vacuum hose clip.
29. Fit cylinder head gasket. See this Section.
30. Fit sump gasket. See this Section.
31. Fit crankshaft front oil seal. See this Section.
