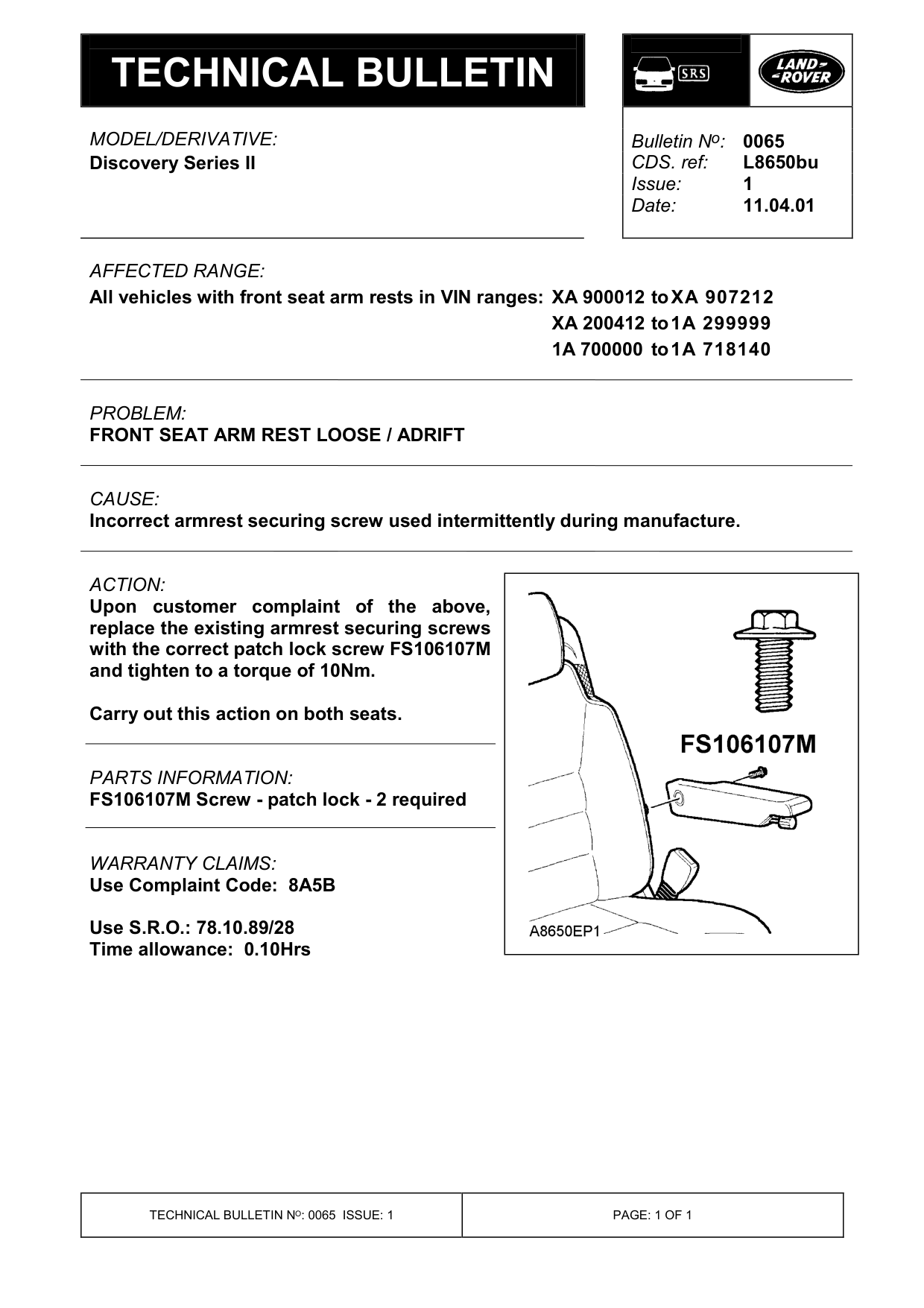

Front seat arm rest loose / adrift

FRONT SEAT ARM REST LOOSE / ADRIFT

Model

Discovery Series II

Affected vehicles

XA 900012 toXA 907212 XA 200412 to1A 299999 All vehicles with front seat arm rests in VIN ranges: 1A 700000 to1A 718140

Date

2001-04-11

Reference

Bulletin 0065, CDS ref L8650bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All vehicles with front seat arm rests in VIN ranges:

PROBLEM:

FRONT SEAT ARM REST LOOSE / ADRIFT

CAUSE:

Incorrect armrest securing screw used intermittently during manufacture.

ACTION:

Upon customer complaint of the above, replace the existing armrest securing screws with the correct patch lock screw FS106107M and tighten to a torque of 10Nm.

Carry out this action on both seats.

PARTS INFORMATION:

FS106107M Screw - patch lock - 2 required

WARRANTY CLAIMS: Use Complaint Code: 8A5B

Use S.R.O.: 78.10.89/28 Time allowance: 0.10Hrs

Bulletin N o : 0065

XA 900012 toXA 907212 XA 200412 to1A 299999 1A 700000 to1A 718140
