Tail door vibration

TAIL DOOR VIBRATION

Model

Discovery Series II

Affected vehicles

All derivatives fitted with sub woofers up to VIN 2A 736340

Date

2002-01-09

Reference

Bulletin 0088, CDS ref L8686bu

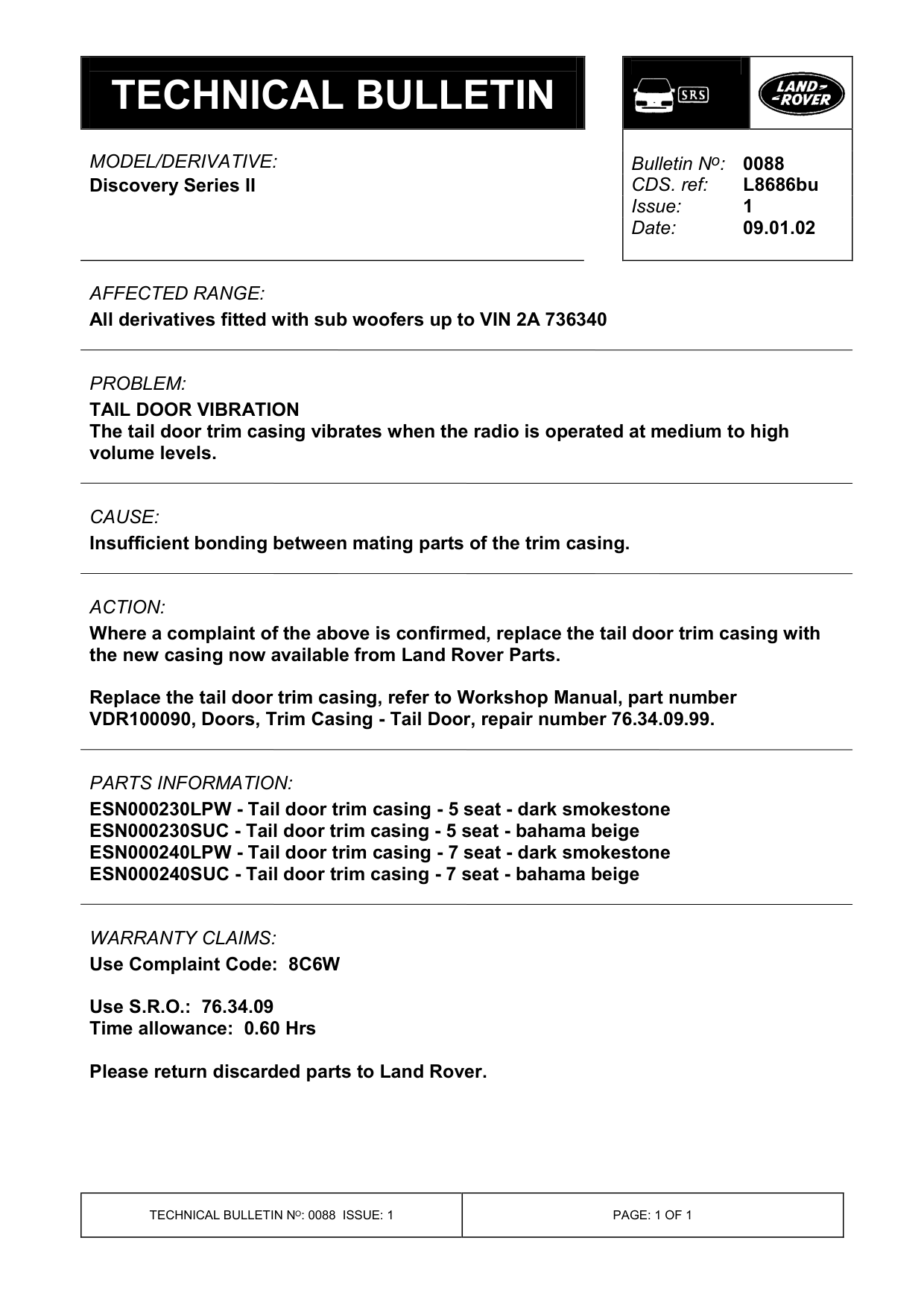

Bulletin text

Discovery Series II

AFFECTED RANGE:

All derivatives fitted with sub woofers up to VIN 2A 736340

PROBLEM:

TAIL DOOR VIBRATION The tail door trim casing vibrates when the radio is operated at medium to high volume levels.

CAUSE:

Insufficient bonding between mating parts of the trim casing.

ACTION:

Where a complaint of the above is confirmed, replace the tail door trim casing with the new casing now available from Land Rover Parts.

Replace the tail door trim casing, refer to Workshop Manual, part number VDR100090, Doors, Trim Casing - Tail Door, repair number 76.34.09.99.

PARTS INFORMATION:

ESN000230LPW - Tail door trim casing - 5 seat - dark smokestone ESN000230SUC - Tail door trim casing - 5 seat - bahama beige ESN000240LPW - Tail door trim casing - 7 seat - dark smokestone ESN000240SUC - Tail door trim casing - 7 seat - bahama beige

WARRANTY CLAIMS: Use Complaint Code: 8C6W

Use S.R.O.: 76.34.09 Time allowance: 0.60 Hrs

Please return discarded parts to Land Rover.

Bulletin N o : 0088
