Brake noise / squeal

BRAKE NOISE / SQUEAL

Model

Discovery II

Affected vehicles

All derivatives in VIN ranges: XA 900000 to XA 907212 YA 200000 to 1A 299999 1A 700000 to 1A 728964 Front discs 1A 700000 to 1A 733858 Rear discs

Date

2001-12-12

Reference

Bulletin 0013, CDS ref L8680bu

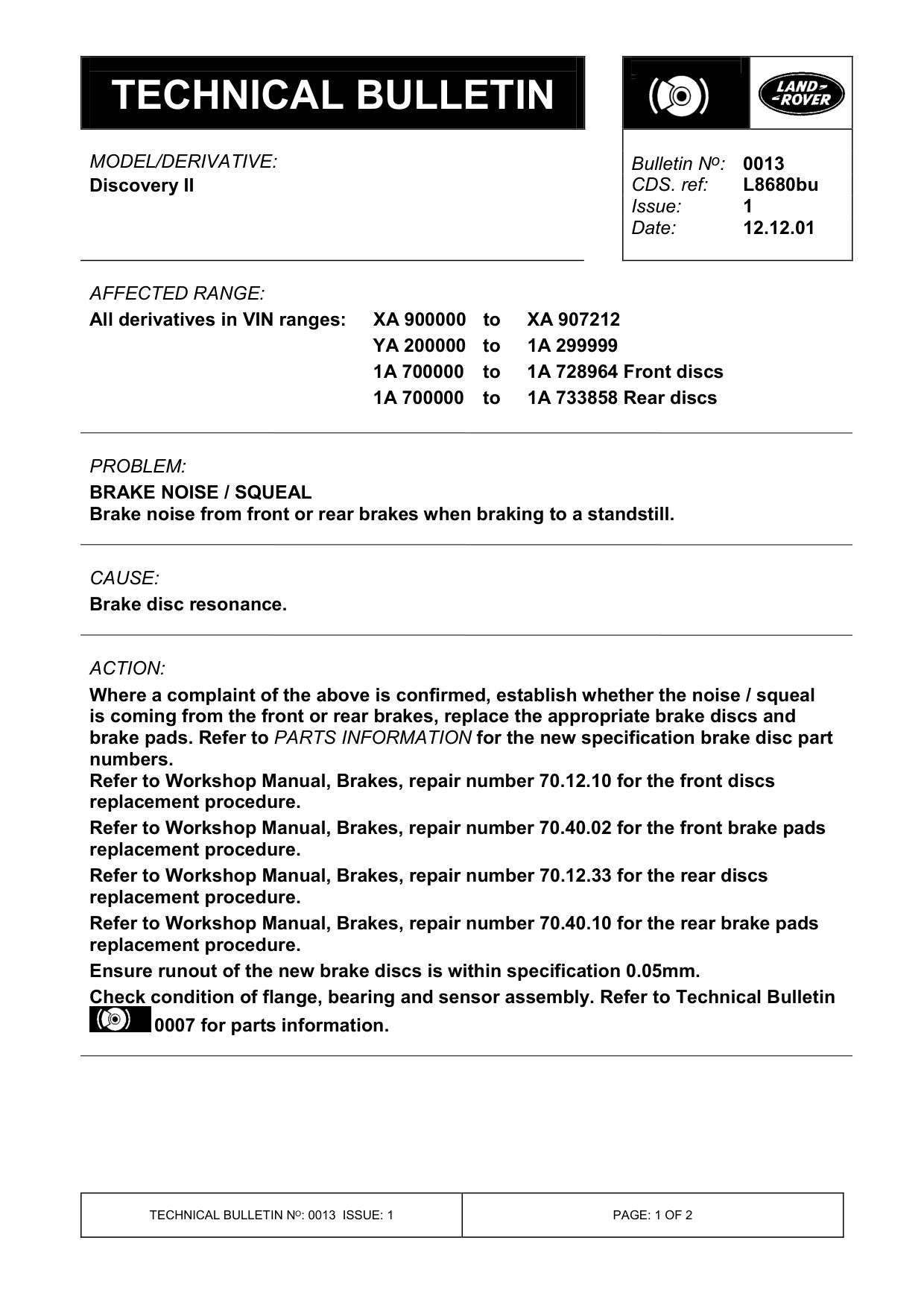

Bulletin text

Discovery II

AFFECTED RANGE:

All derivatives in VIN ranges: XA 900000 YA 200000 1A 700000 1A 700000

PROBLEM:

BRAKE NOISE / SQUEAL Brake noise from front or rear brakes when braking to a standstill.

CAUSE:

Brake disc resonance.

ACTION:

Where a complaint of the above is confirmed, establish whether the noise / squeal is coming from the front or rear brakes, replace the appropriate brake discs and brake pads. Refer to PARTS INFORMATION for the new specification brake disc part numbers. Refer to Workshop Manual, Brakes, repair number 70.12.10 for the front discs replacement procedure. Refer to Workshop Manual, Brakes, repair number 70.40.02 for the front brake pads replacement procedure. Refer to Workshop Manual, Brakes, repair number 70.12.33 for the rear discs replacement procedure. Refer to Workshop Manual, Brakes, repair number 70.40.10 for the rear brake pads replacement procedure. Ensure runout of the new brake discs is within specification 0.05mm. Check condition of flange, bearing and sensor assembly. Refer to Technical Bulletin 0007 for parts information.

Bulletin N o : 0013

to XA 907212 to 1A 299999 to 1A 728964 Front discs to 1A 733858 Rear discs

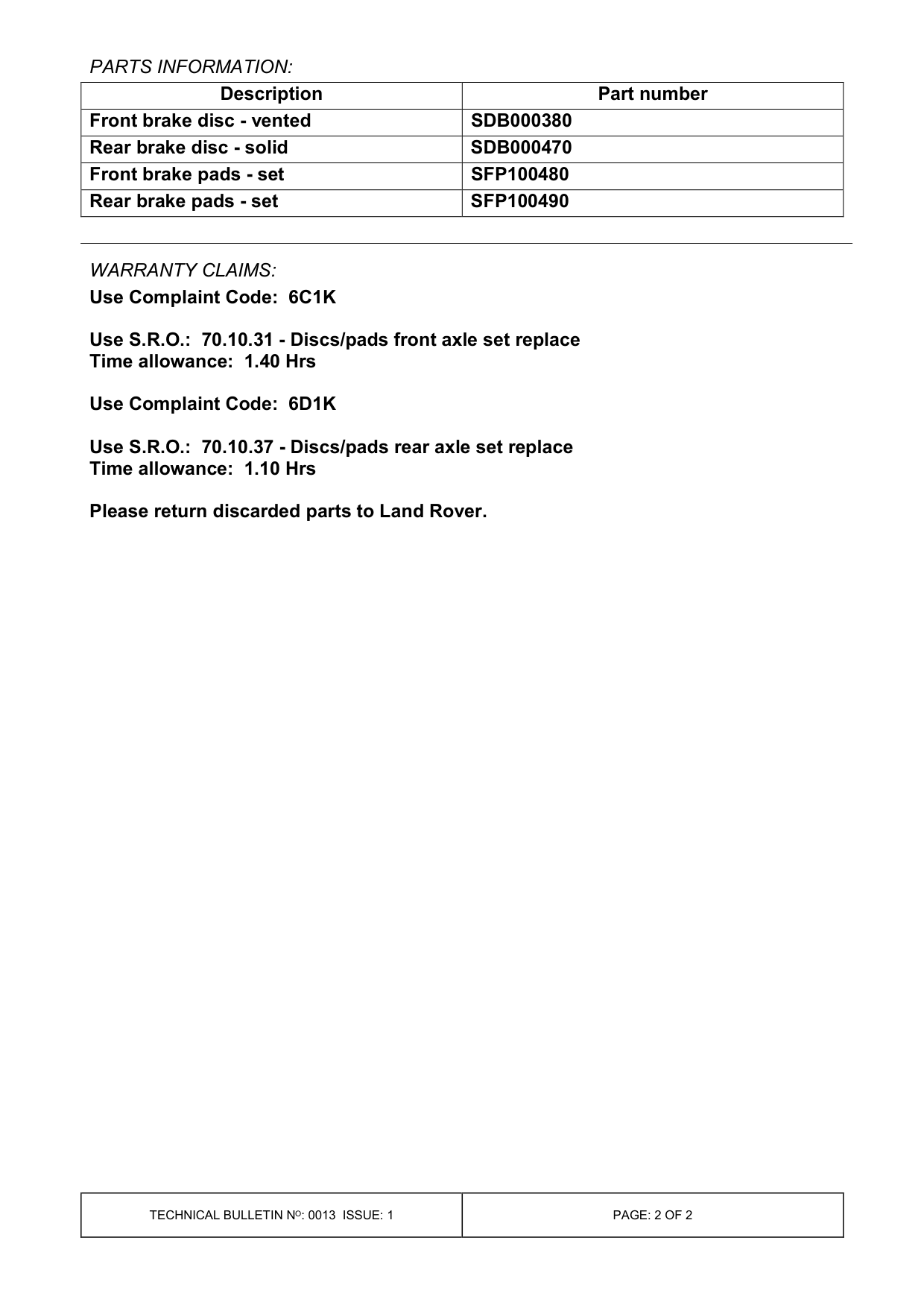

PARTS INFORMATION:

Description Front brake disc - vented Rear brake disc - solid Front brake pads - set Rear brake pads - set

WARRANTY CLAIMS: Use Complaint Code: 6C1K

Use S.R.O.: 70.10.31 - Discs/pads front axle set replace Time allowance: 1.40 Hrs

Use Complaint Code: 6D1K

Use S.R.O.: 70.10.37 - Discs/pads rear axle set replace Time allowance: 1.10 Hrs

Please return discarded parts to Land Rover.

Part number SDB000380 SDB000470 SFP100480 SFP100490
