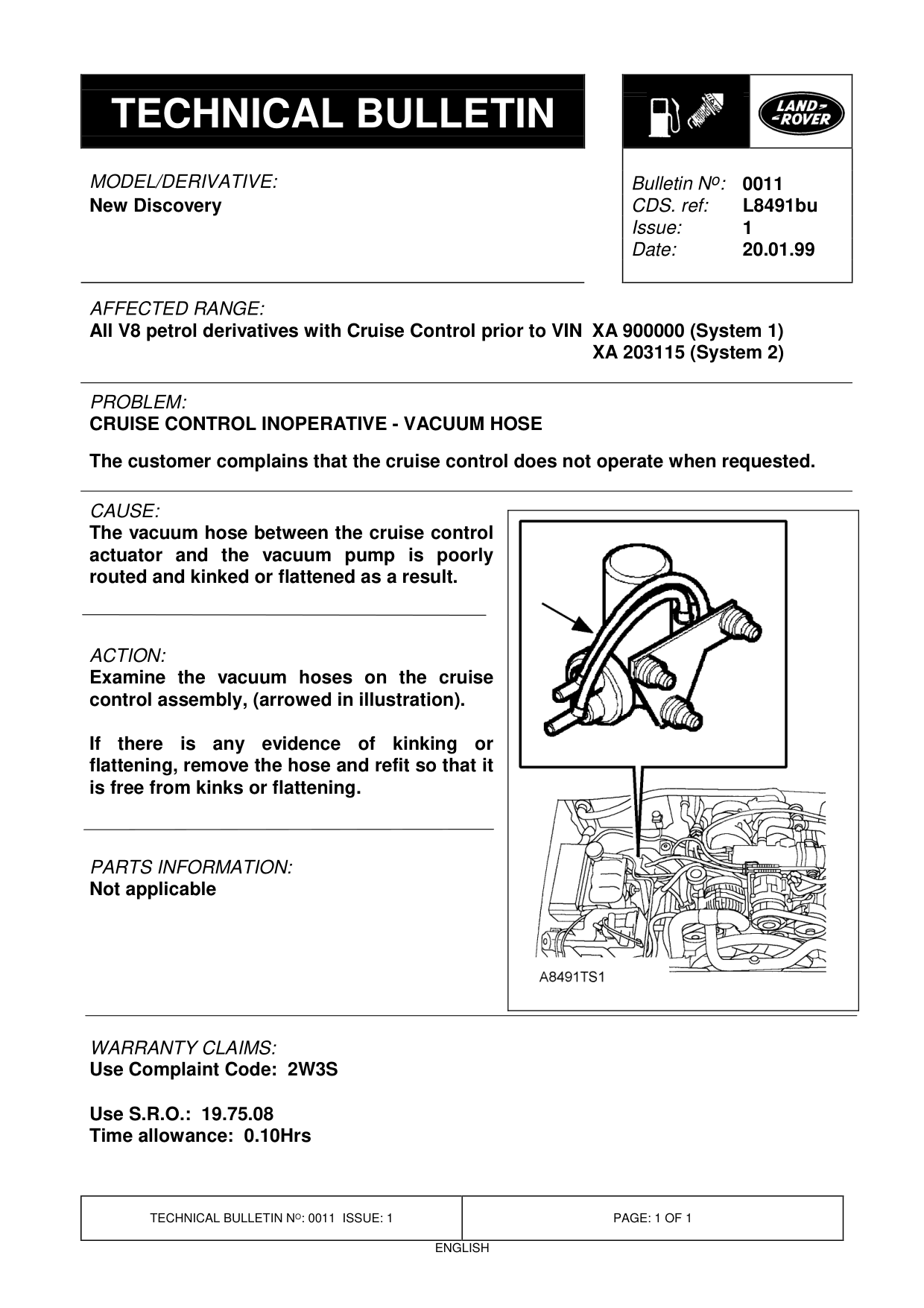

Cruise control inoperative - vacuum hose

CRUISE CONTROL INOPERATIVE - VACUUM HOSE

Model

New Discovery

Affected vehicles

All V8 petrol derivatives with Cruise Control prior to VIN XA 900000 (System 1) XA 203115 (System 2)

Date

1999-01-20

Reference

Bulletin 0011, CDS ref L8491bu

Bulletin text

New Discovery

AFFECTED RANGE:

All V8 petrol derivatives with Cruise Control prior to VIN XA 900000 (System 1)

PROBLEM:

CRUISE CONTROL INOPERATIVE - VACUUM HOSE The customer complains that the cruise control does not operate when requested.

CAUSE:

The vacuum hose between the cruise control actuator and the vacuum pump is poorly routed and kinked or flattened as a result.

ACTION:

Examine the vacuum hoses on the cruise control assembly, (arrowed in illustration).

If there is any evidence of kinking flattening, remove the hose and refit so that it is free from kinks or flattening.

PARTS INFORMATION:

Not applicable

WARRANTY CLAIMS: Use Complaint Code: 2W3S

Use S.R.O.: 19.75.08 Time allowance: 0.10Hrs

Bulletin N o : 0011 L8491bu 1 20.01.99

XA 203115 (System 2)

or
