Handset bar code information incomplete

HANDSET BAR CODE INFORMATION INCOMPLETE

Model

New Discovery

Affected vehicles

All vehicles

Date

1999-01-20

Reference

Bulletin 0002, CDS ref L8499bu

Bulletin text

New Discovery

AFFECTED RANGE:

All vehicles

PROBLEM:

HANDSET BAR CODE INFORMATION INCOMPLETE

Bar code information requested from Land Rover Traceability may be supplied incomplete, i.e: some characters are missing which prevent the handset from being programmed.

CAUSE:

Bar codes supplied by Traceability have a maximum of 15 characters. TestBook requires a total of 18 characters in the first bar code and 17 in the second.

ACTION:

When entering a bar code supplied by Traceability, additional characters must be added as follows:

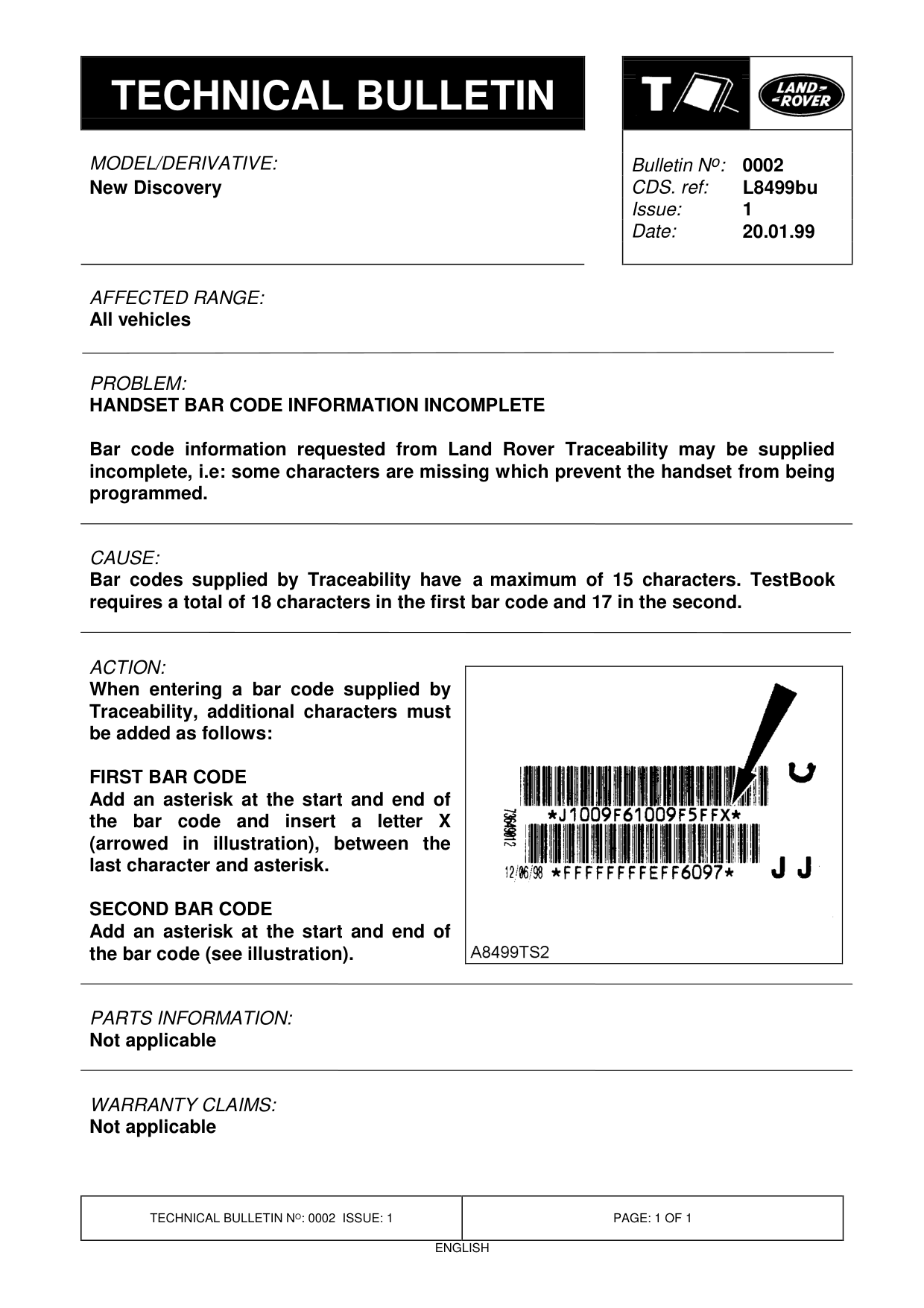

FIRST BAR CODE Add an asterisk at the start and end of the bar code and insert a letter (arrowed in illustration), between the last character and asterisk.

SECOND BAR CODE Add an asterisk at the start and end of the bar code (see illustration).

PARTS INFORMATION:

Not applicable

WARRANTY CLAIMS: Not applicable

Bulletin N o : 0002 L8499bu 1 20.01.99
