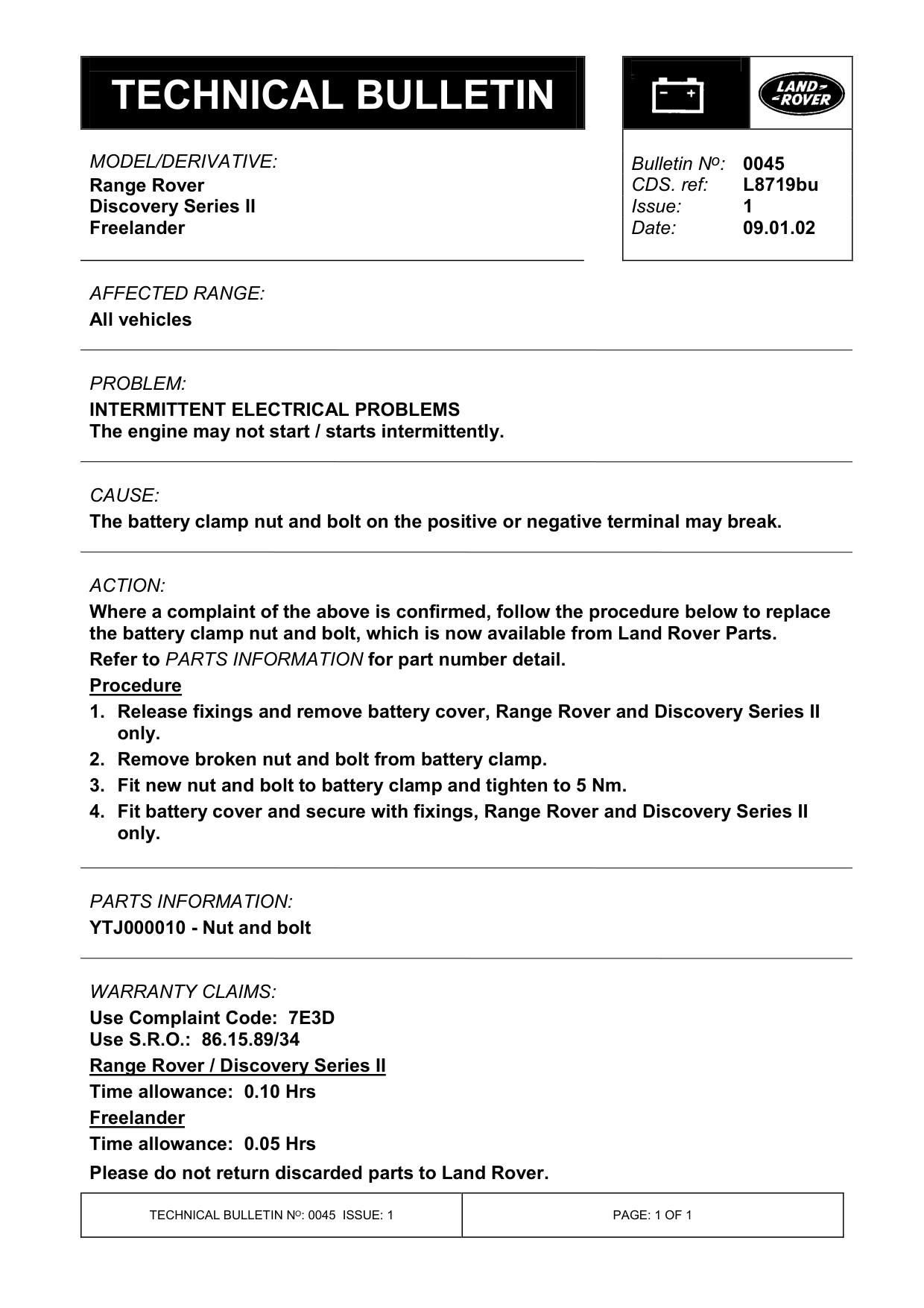

Intermittent electrical problems

INTERMITTENT ELECTRICAL PROBLEMS

Model

Range Rover Discovery Series II Freelander

Affected vehicles

All vehicles

Date

2002-01-09

Reference

Bulletin 0045, CDS ref L8719bu

Bulletin text

Range Rover Discovery Series II Freelander

AFFECTED RANGE:

All vehicles

PROBLEM:

INTERMITTENT ELECTRICAL PROBLEMS The engine may not start / starts intermittently.

CAUSE:

The battery clamp nut and bolt on the positive or negative terminal may break.

ACTION:

Where a complaint of the above is confirmed, follow the procedure below to replace the battery clamp nut and bolt, which is now available from Land Rover Parts. Refer to PARTS INFORMATION for part number detail. Procedure 1. Release fixings and remove battery cover, Range Rover and Discovery Series II only. 2. Remove broken nut and bolt from battery clamp. 3. Fit new nut and bolt to battery clamp and tighten to 5 Nm. 4. Fit battery cover and secure with fixings, Range Rover and Discovery Series II only.

PARTS INFORMATION:

YTJ000010 - Nut and bolt

WARRANTY CLAIMS: Use Complaint Code: 7E3D Use S.R.O.: 86.15.89/34 Range Rover / Discovery Series II Time allowance: 0.10 Hrs Freelander Time allowance: 0.05 Hrs Please do not return discarded parts to Land Rover.

Bulletin N o : 0045
