Tail lamp cracked

TAIL LAMP CRACKED

Model

Discovery Series II

Affected vehicles

All vehicles

Date

2001-10-17

Reference

Bulletin 0077, CDS ref L8716bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All vehicles

PROBLEM:

TAIL LAMP CRACKED

CAUSE:

Due to Body in White specification, stresses can be placed on the tail lamp causing it to crack.

ACTION:

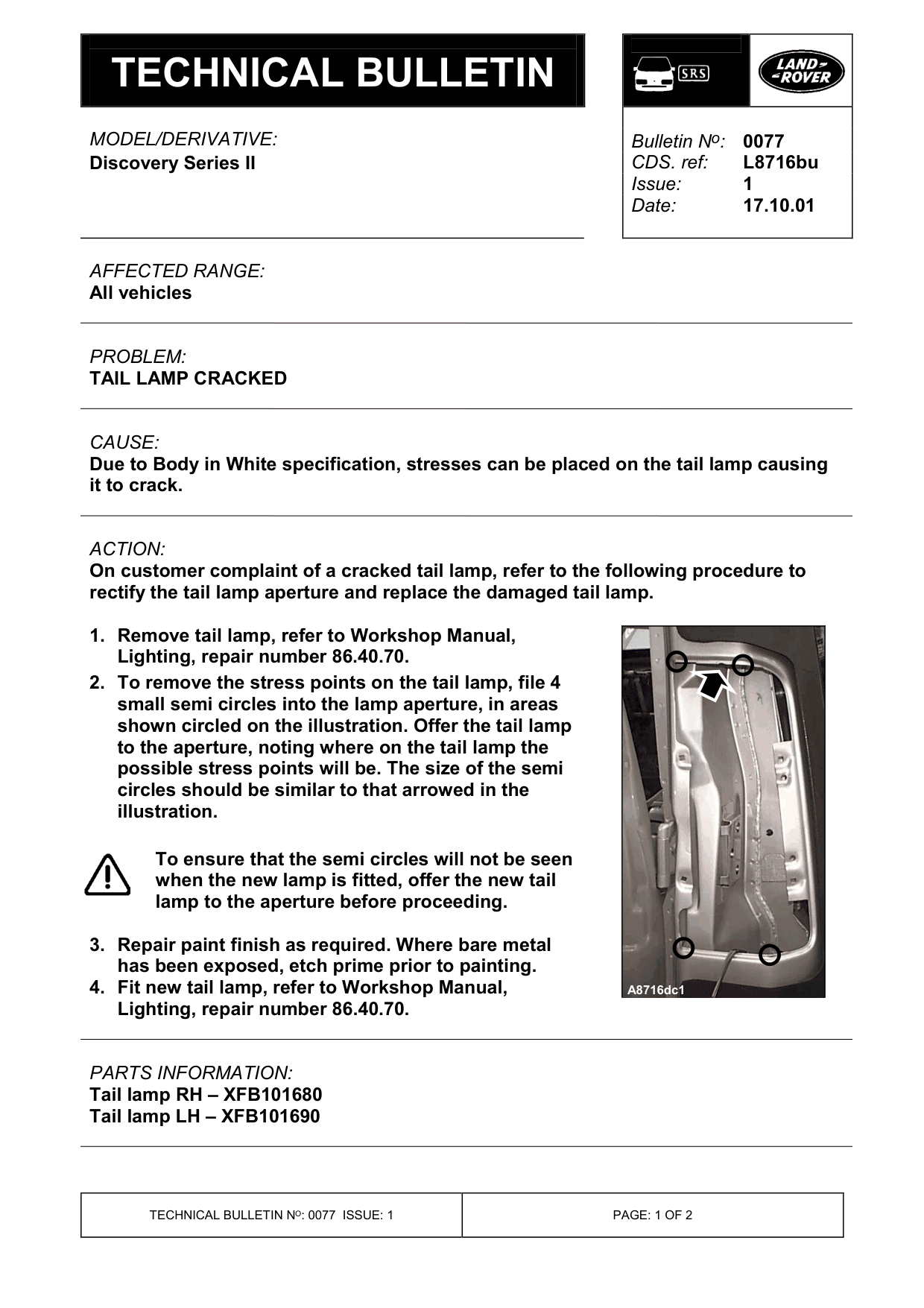

On customer complaint of a cracked tail lamp, refer to the following procedure to rectify the tail lamp aperture and replace the damaged tail lamp.

1. Remove tail lamp, refer to Workshop Manual, Lighting, repair number 86.40.70. 2. To remove the stress points on the tail lamp, file 4 small semi circles into the lamp aperture, in areas shown circled on the illustration. Offer the tail lamp to the aperture, noting where on the tail lamp the possible stress points will be. The size of the semi circles should be similar to that arrowed in the illustration.

To ensure that the semi circles will not be seen when the new lamp is fitted, offer the new tail lamp to the aperture before proceeding.

3. Repair paint finish as required. Where bare metal has been exposed, etch prime prior to painting. 4. Fit new tail lamp, refer to Workshop Manual, Lighting, repair number 86.40.70.

PARTS INFORMATION:

Tail lamp RH - XFB101680 Tail lamp LH - XFB101690

Bulletin N o : 0077

A8716dc1

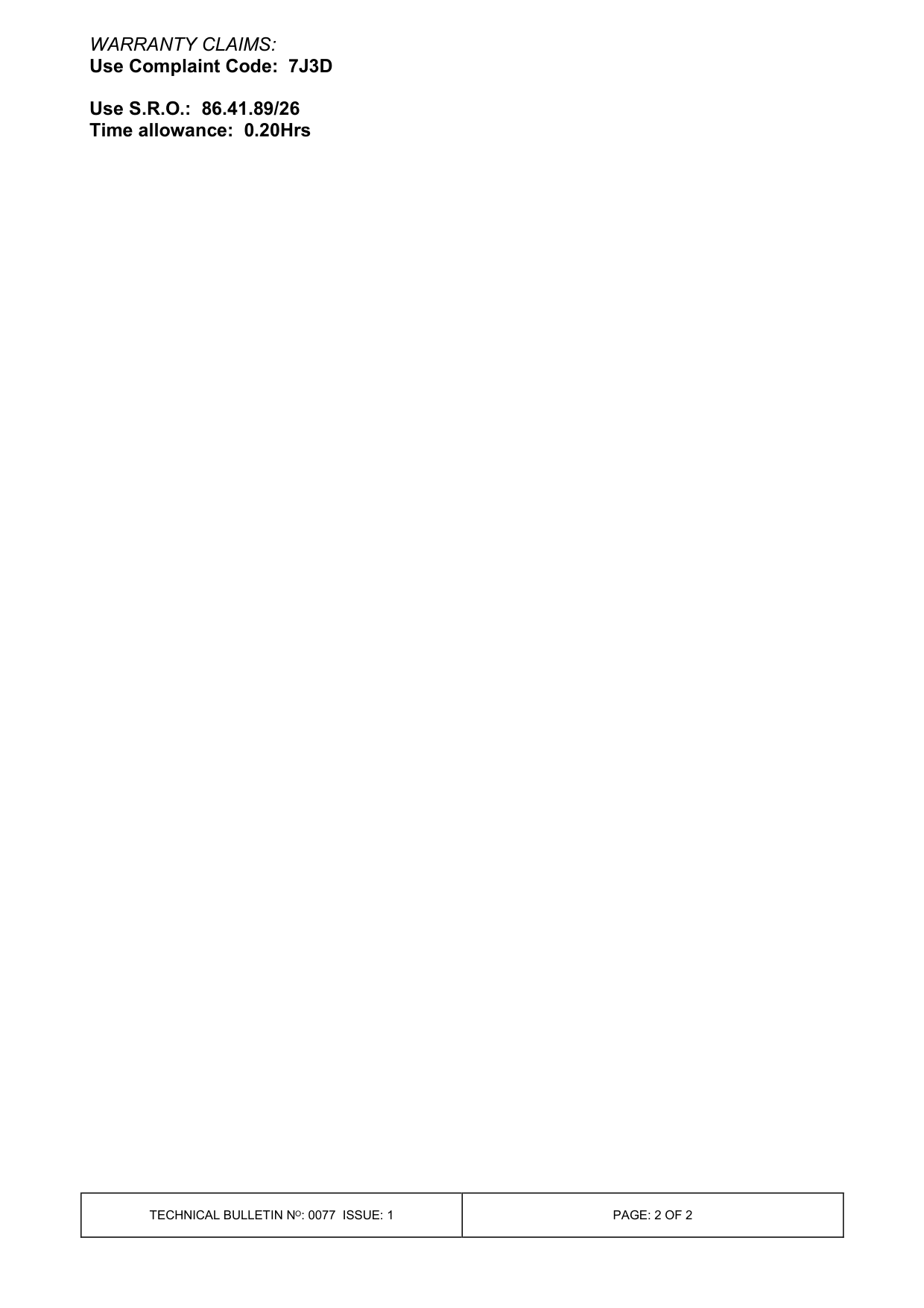

WARRANTY CLAIMS: Use Complaint Code: 7J3D

Use S.R.O.: 86.41.89/26 Time allowance: 0.20Hrs
