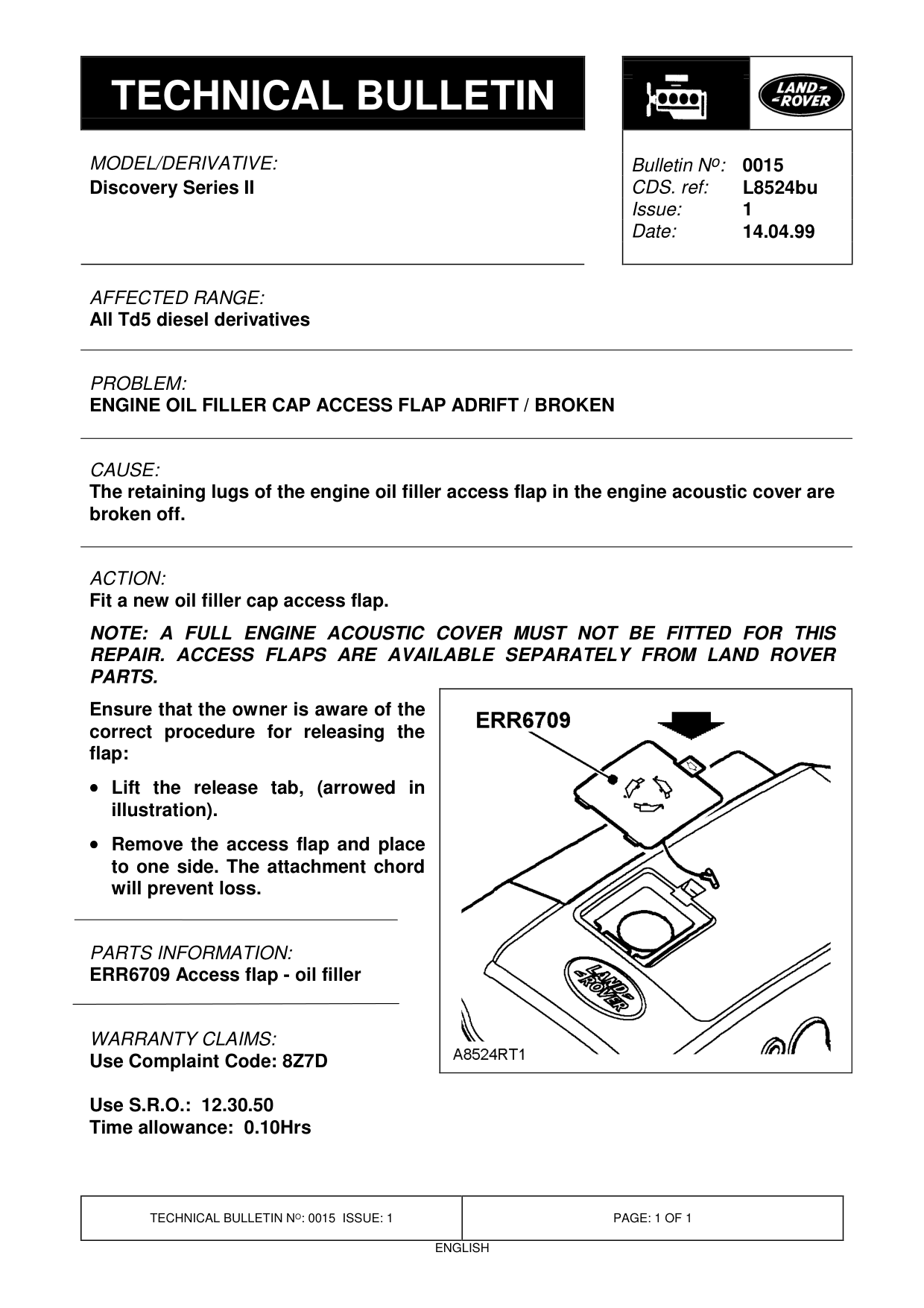

Engine oil filler cap access flap adrift / broken

ENGINE OIL FILLER CAP ACCESS FLAP ADRIFT / BROKEN

Model

Discovery Series II

Affected vehicles

All Td5 diesel derivatives

Date

1999-04-14

Reference

Bulletin 0015, CDS ref L8524bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All Td5 diesel derivatives

PROBLEM:

ENGINE OIL FILLER CAP ACCESS FLAP ADRIFT / BROKEN

CAUSE:

The retaining lugs of the engine oil filler access flap in the engine acoustic cover are broken off.

ACTION:

Fit a new oil filler cap access flap. NOTE: A FULL ENGINE ACOUSTIC COVER MUST NOT BE FITTED FOR THIS REPAIR. ACCESS FLAPS ARE AVAILABLE SEPARATELY FROM LAND ROVER PARTS. Ensure that the owner is aware of the correct procedure for releasing the flap: • = Lift the release tab, (arrowed in illustration). = • = Remove the access flap and place to one side. The attachment chord will prevent loss.

PARTS INFORMATION:

ERR6709 Access flap - oil filler

WARRANTY CLAIMS: Use Complaint Code: 8Z7D

Use S.R.O.: 12.30.50 Time allowance: 0.10Hrs

Bulletin N o : 0015 L8524bu 1 14.04.99
