Brake fluid reservoir - fluid flow

BRAKE FLUID RESERVOIR - FLUID FLOW

Model

Discovery II

Reference

Service action 362

Bulletin text

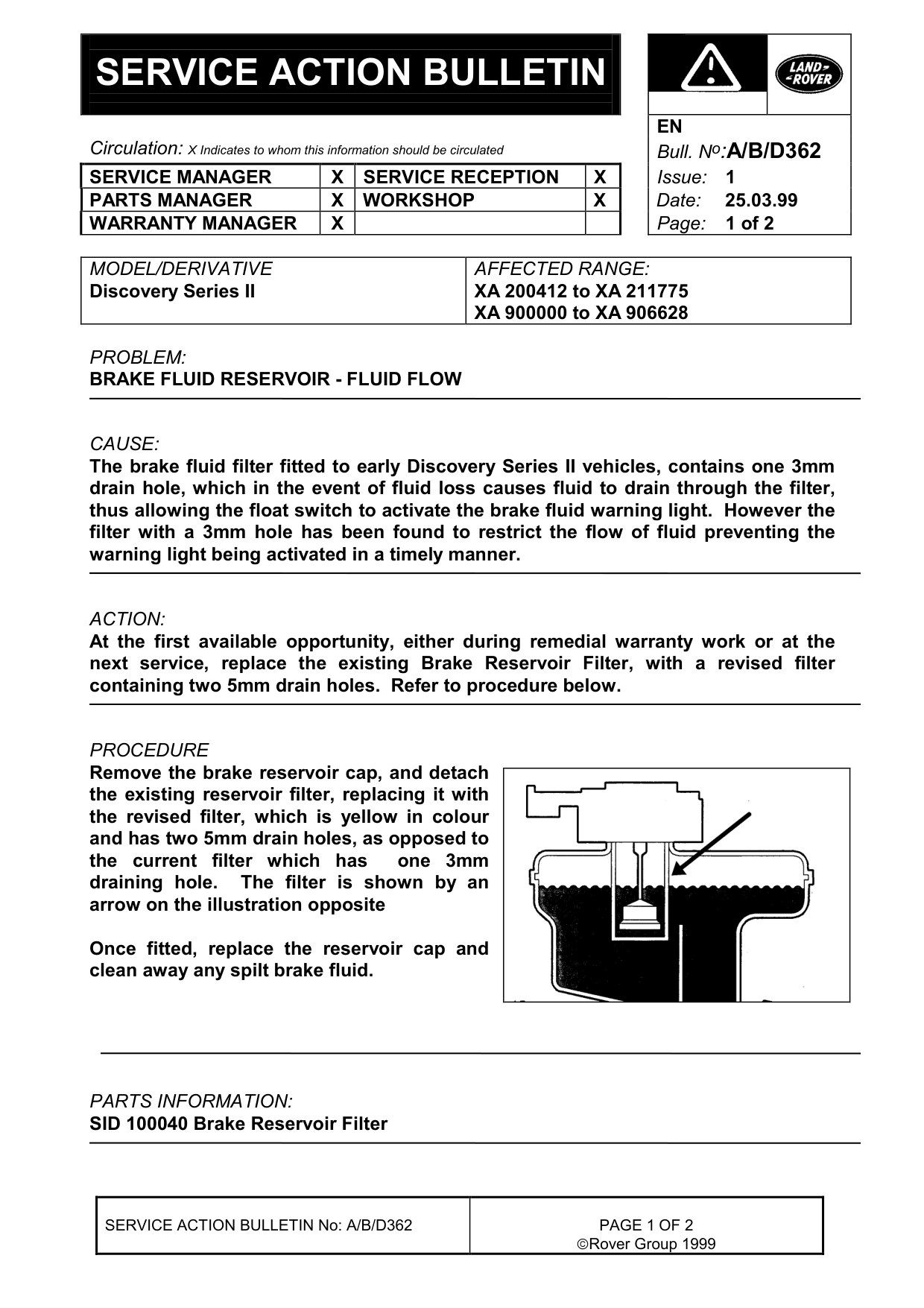

SERVICE ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

Discovery Series II

PROBLEM:

BRAKE FLUID RESERVOIR - FLUID FLOW

CAUSE:

The brake fluid filter fitted to early Discovery Series II vehicles, contains one 3mm drain hole, which in the event of fluid loss causes fluid to drain through the filter, thus allowing the float switch to activate the brake fluid warning light. However the filter with a 3mm hole has been found to restrict the flow of fluid preventing the warning light being activated in a timely manner.

ACTION:

At the first available opportunity, either during remedial warranty work or at the next service, replace the existing Brake Reservoir Filter, with a revised filter containing two 5mm drain holes. Refer to procedure below.

PROCEDURE

Remove the brake reservoir cap, and detach the existing reservoir filter, replacing it with the revised filter, which is yellow in colour and has two 5mm drain holes, as opposed to the current filter which has one 3mm draining hole. The filter is shown by an arrow on the illustration opposite

Once fitted, replace the reservoir cap and clean away any spilt brake fluid.

PARTS INFORMATION:

SID 100040 Brake Reservoir Filter

SERVICE ACTION BULLETIN No: A/B/D362

EN Bull. N o : A/B/D362

25.03.99

AFFECTED RANGE:

XA 200412 to XA 211775 XA 900000 to XA 906628

Rover Group 1999

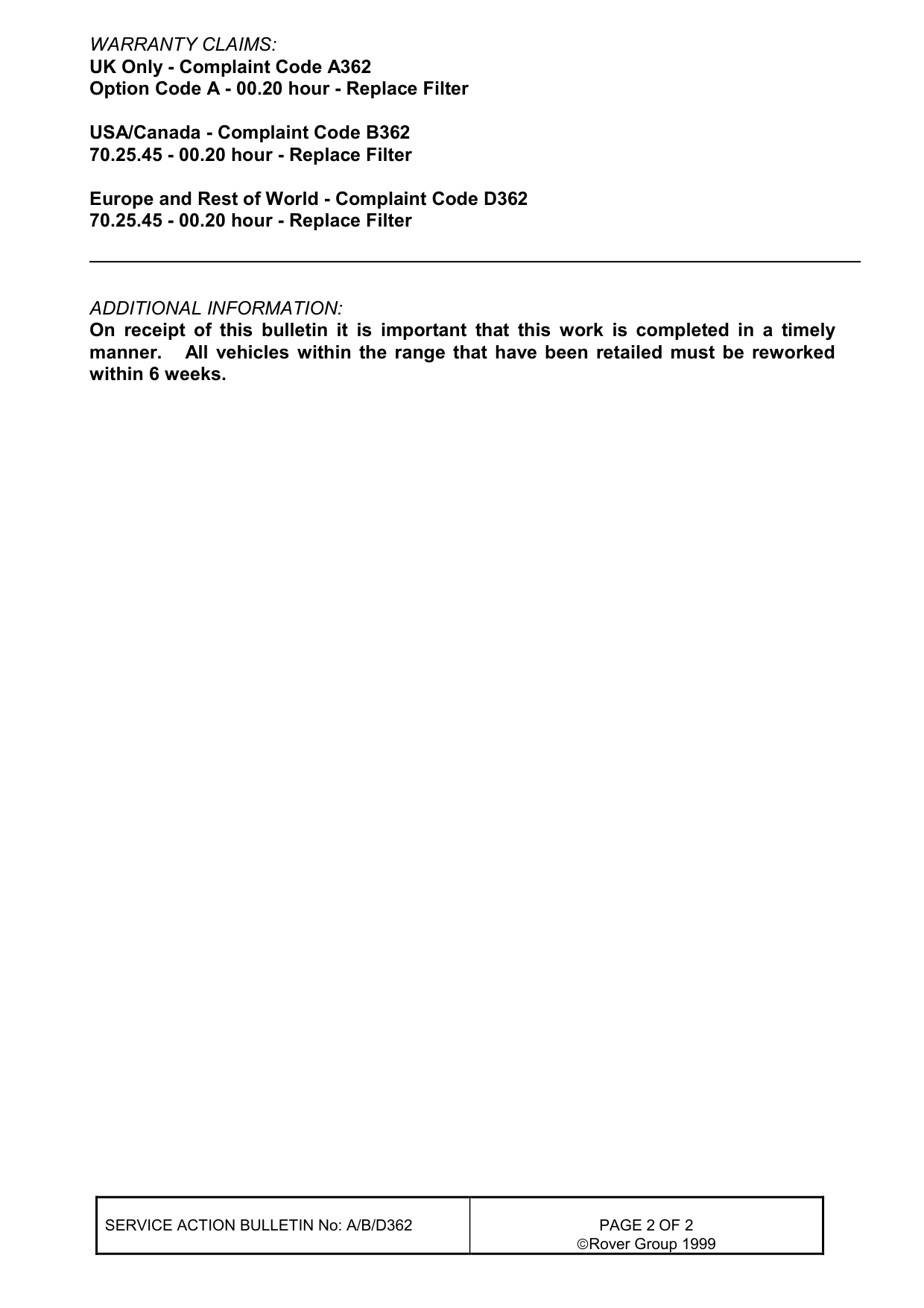

WARRANTY CLAIMS: UK Only - Complaint Code A362 Option Code A - 00.20 hour - Replace Filter

USA/Canada - Complaint Code B362 70.25.45 - 00.20 hour - Replace Filter

Europe and Rest of World - Complaint Code D362 70.25.45 - 00.20 hour - Replace Filter

ADDITIONAL INFORMATION: On receipt of this bulletin it is important that this work is completed in a timely manner. All vehicles within the range that have been retailed must be reworked within 6 weeks.

SERVICE ACTION BULLETIN No: A/B/D362
Rover Group 1999
