Inadvertent alarm activation

INADVERTENT ALARM ACTIVATION

Model

Discovery II

Reference

Service action 366

Bulletin text

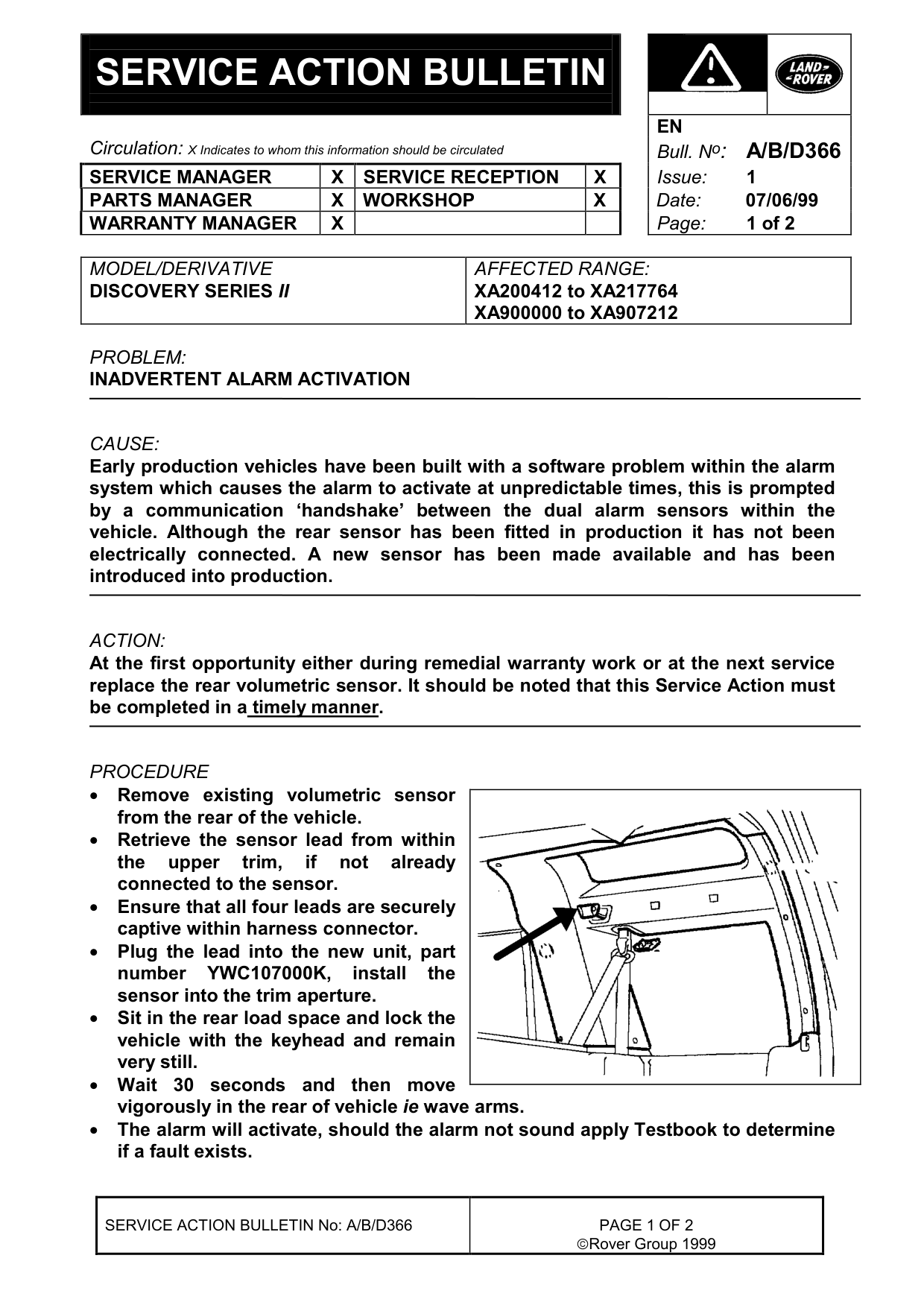

SERVICE ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

DISCOVERY SERIES II

PROBLEM:

INADVERTENT ALARM ACTIVATION

CAUSE:

Early production vehicles have been built with a software problem within the alarm system which causes the alarm to activate at unpredictable times, this is prompted by a communication ‘handshake’ between the dual alarm sensors within the vehicle. Although the rear sensor has been fitted in production it has not been electrically connected. A new sensor has been made available and has been introduced into production.

ACTION:

At the first opportunity either during remedial warranty work or at the next service replace the rear volumetric sensor. It should be noted that this Service Action must be completed in a timely manner.

PROCEDURE

• Remove existing volumetric sensor from the rear of the vehicle. • Retrieve the sensor lead from within the upper trim, if not already connected to the sensor. • Ensure that all four leads are securely captive within harness connector. • Plug the lead into the new unit, part number YWC107000K, install sensor into the trim aperture. • Sit in the rear load space and lock the vehicle with the keyhead and remain very still. • Wait 30 seconds and then move vigorously in the rear of vehicle ie wave arms. • The alarm will activate, should the alarm not sound apply Testbook to determine if a fault exists.

SERVICE ACTION BULLETIN No: A/B/D366

EN Bull. N o : A/B/D366

AFFECTED RANGE:

XA200412 to XA217764 XA900000 to XA907212

the

Rover Group 1999

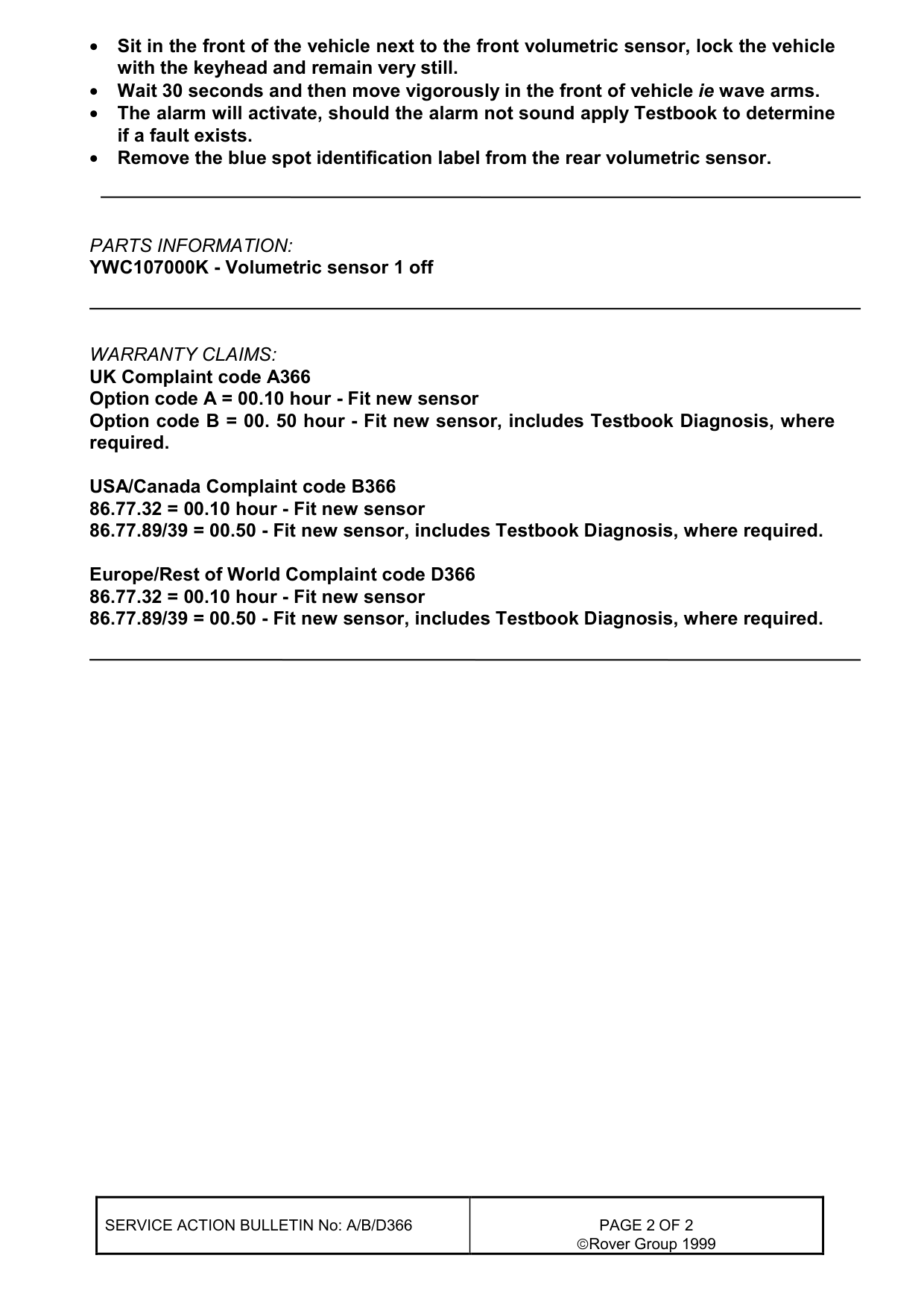

• Sit in the front of the vehicle next to the front volumetric sensor, lock the vehicle with the keyhead and remain very still. • Wait 30 seconds and then move vigorously in the front of vehicle ie wave arms. • The alarm will activate, should the alarm not sound apply Testbook to determine if a fault exists. • Remove the blue spot identification label from the rear volumetric sensor.

PARTS INFORMATION:

YWC107000K - Volumetric sensor 1 off

WARRANTY CLAIMS: UK Complaint code A366 Option code A = 00.10 hour - Fit new sensor Option code B = 00. 50 hour - Fit new sensor, includes Testbook Diagnosis, where required.

USA/Canada Complaint code B366 86.77.32 = 00.10 hour - Fit new sensor 86.77.89/39 = 00.50 - Fit new sensor, includes Testbook Diagnosis, where required.

Europe/Rest of World Complaint code D366 86.77.32 = 00.10 hour - Fit new sensor 86.77.89/39 = 00.50 - Fit new sensor, includes Testbook Diagnosis, where required.

SERVICE ACTION BULLETIN No: A/B/D366
Rover Group 1999
