SRS PRE-TENSIONER HARNESS ROUTING

Model

Discovery II

Reference

Service action 378

Bulletin text

SERVICE ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

Discovery Series II All derivatives with factory fitted powered front seats

PROBLEM:

SRS PRE-TENSIONER HARNESS ROUTING

CAUSE:

The routing of the SRS pre-tensioner harness, beneath the front left hand seat on vehicles fitted with power seats, may foul on the seat adjust mechanism which could result in damage to the harness.

ACTION:

At the first available opportunity, next service or during remedial warranty work check the routing of the SRS harness beneath the front left hand seat on vehicles fitted with power seats and apply an additional tie wrap. Those vehicles that do not have powered seats will require inspection to determine if powered seats are fitted and a warranty claim must be made for inspection to remove the vehicle from the warranty database.

PROCEDURE

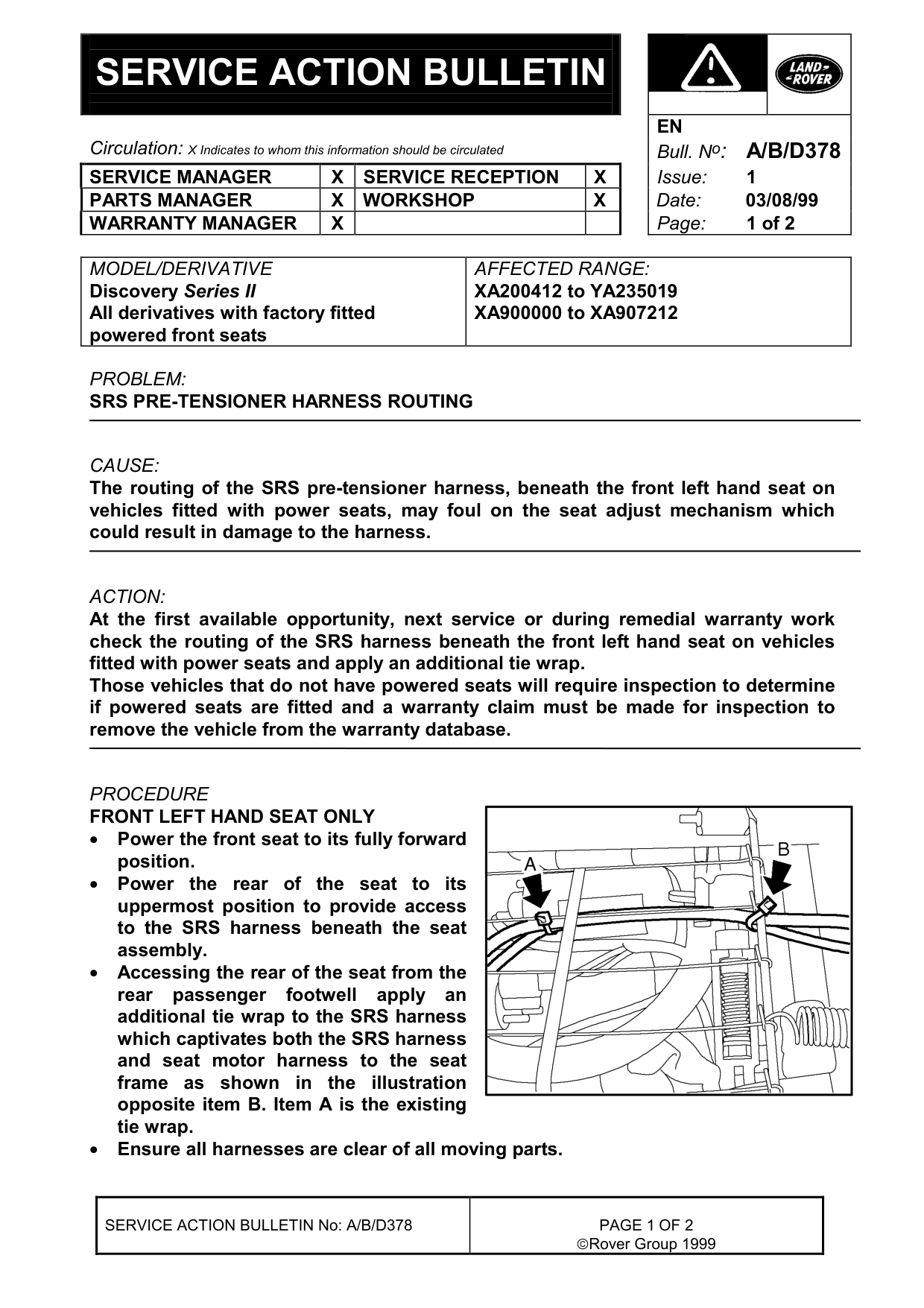

FRONT LEFT HAND SEAT ONLY • Power the front seat to its fully forward position. • Power the rear of the seat to its uppermost position to provide access to the SRS harness beneath the seat assembly. • Accessing the rear of the seat from the rear passenger footwell apply an additional tie wrap to the SRS harness which captivates both the SRS harness and seat motor harness to the seat frame as shown in the illustration opposite item B. Item A is the existing tie wrap. • Ensure all harnesses are clear of all moving parts.

SERVICE ACTION BULLETIN No: A/B/D378

EN Bull. N o : A/B/D378

AFFECTED RANGE:

XA200412 to YA235019 XA900000 to XA907212

Rover Group 1999

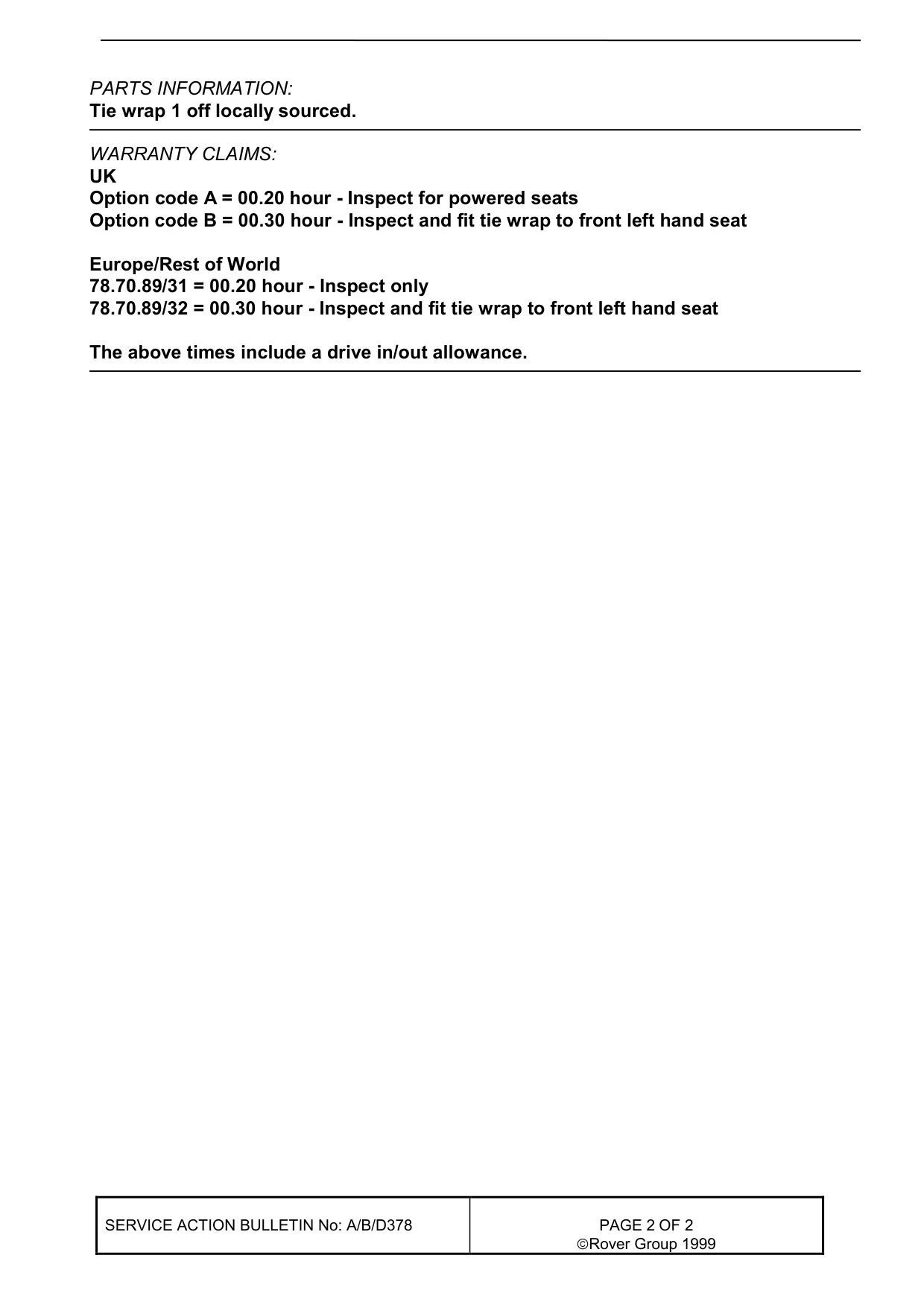

PARTS INFORMATION:

Tie wrap 1 off locally sourced.

WARRANTY CLAIMS: UK Option code A = 00.20 hour - Inspect for powered seats Option code B = 00.30 hour - Inspect and fit tie wrap to front left hand seat

Europe/Rest of World 78.70.89/31 = 00.20 hour - Inspect only 78.70.89/32 = 00.30 hour - Inspect and fit tie wrap to front left hand seat

The above times include a drive in/out allowance.
