Throttle cable damage

THROTTLE CABLE DAMAGE

Model

Discovery II

Reference

Recall action Abd274

Bulletin text

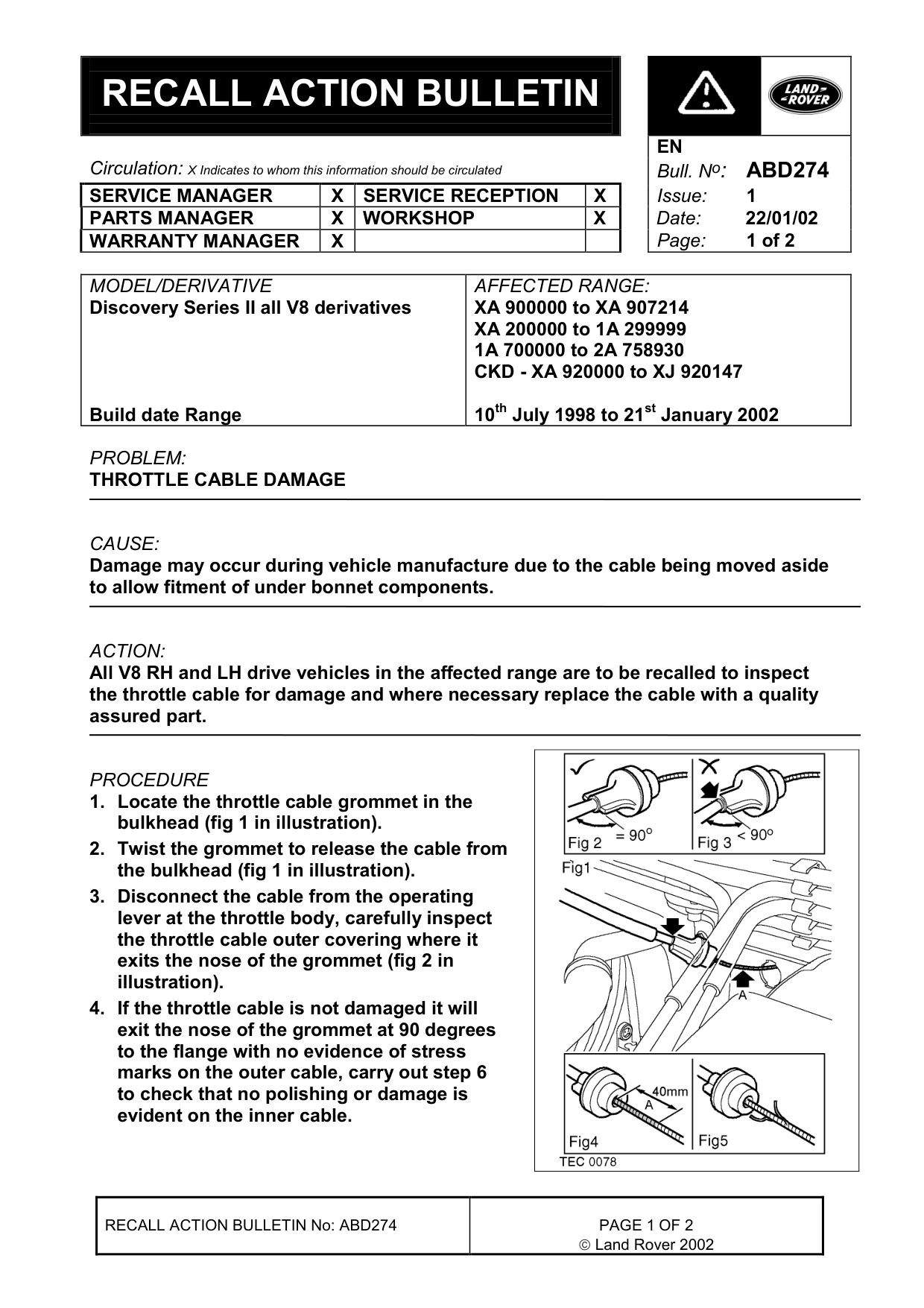

RECALL ACTION BULLETIN

Circulation: X Indicates to whom this information should be circulated SERVICE MANAGER X SERVICE RECEPTION PARTS MANAGER WARRANTY MANAGER

Discovery Series II all V8 derivatives

Build date Range

PROBLEM:

THROTTLE CABLE DAMAGE

CAUSE:

Damage may occur during vehicle manufacture due to the cable being moved aside to allow fitment of under bonnet components.

ACTION:

All V8 RH and LH drive vehicles in the affected range are to be recalled to inspect the throttle cable for damage and where necessary replace the cable with a quality assured part.

PROCEDURE

1. Locate the throttle cable grommet in the bulkhead (fig 1 in illustration). 2. Twist the grommet to release the cable from the bulkhead (fig 1 in illustration). 3. Disconnect the cable from the operating lever at the throttle body, carefully inspect the throttle cable outer covering where it exits the nose of the grommet (fig 2 in illustration). 4. If the throttle cable is not damaged it will exit the nose of the grommet at 90 degrees to the flange with no evidence of stress marks on the outer cable, carry out step 6 to check that no polishing or damage is evident on the inner cable.

RECALL ACTION BULLETIN No: ABD274

EN Bull. N o : ABD274

AFFECTED RANGE:

XA 900000 to XA 907214 XA 200000 to 1A 299999 1A 700000 to 2A 758930 CKD - XA 920000 to XJ 920147

10 th July 1998 to 21 st January 2002

 Land Rover 2002

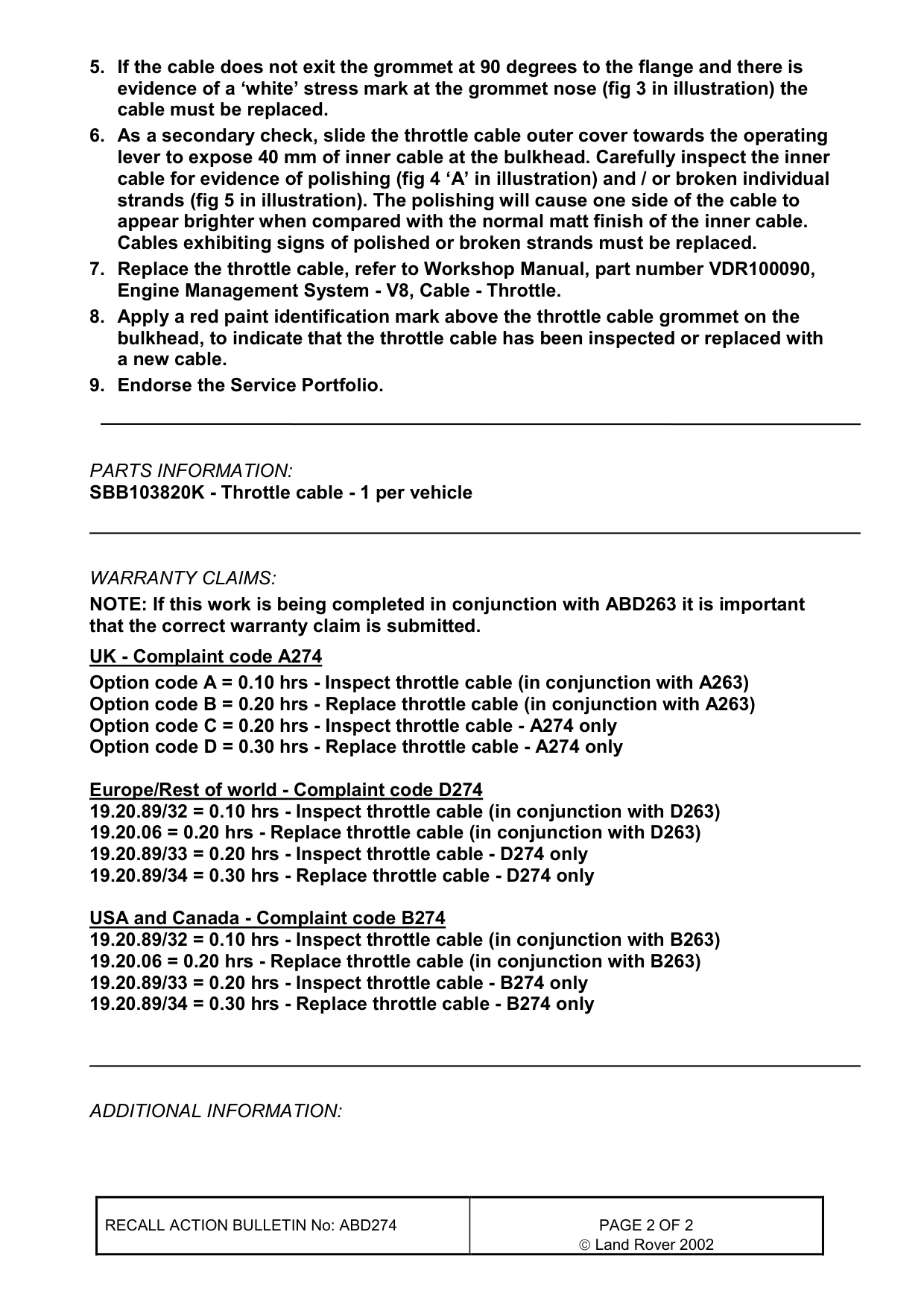

5. If the cable does not exit the grommet at 90 degrees to the flange and there is evidence of a ‘white’ stress mark at the grommet nose (fig 3 in illustration) the cable must be replaced. 6. As a secondary check, slide the throttle cable outer cover towards the operating lever to expose 40 mm of inner cable at the bulkhead. Carefully inspect the inner cable for evidence of polishing (fig 4 ‘A’ in illustration) and / or broken individual strands (fig 5 in illustration). The polishing will cause one side of the cable to appear brighter when compared with the normal matt finish of the inner cable. Cables exhibiting signs of polished or broken strands must be replaced. 7. Replace the throttle cable, refer to Workshop Manual, part number VDR100090, Engine Management System - V8, Cable - Throttle. 8. Apply a red paint identification mark above the throttle cable grommet on the bulkhead, to indicate that the throttle cable has been inspected or replaced with a new cable. 9. Endorse the Service Portfolio.

PARTS INFORMATION:

SBB103820K - Throttle cable - 1 per vehicle

WARRANTY CLAIMS: NOTE: If this work is being completed in conjunction with ABD263 it is important that the correct warranty claim is submitted. UK - Complaint code A274 Option code A = 0.10 hrs - Inspect throttle cable (in conjunction with A263) Option code B = 0.20 hrs - Replace throttle cable (in conjunction with A263) Option code C = 0.20 hrs - Inspect throttle cable - A274 only Option code D = 0.30 hrs - Replace throttle cable - A274 only

Europe/Rest of world - Complaint code D274 19.20.89/32 = 0.10 hrs - Inspect throttle cable (in conjunction with D263) 19.20.06 = 0.20 hrs - Replace throttle cable (in conjunction with D263) 19.20.89/33 = 0.20 hrs - Inspect throttle cable - D274 only 19.20.89/34 = 0.30 hrs - Replace throttle cable - D274 only

USA and Canada - Complaint code B274 19.20.89/32 = 0.10 hrs - Inspect throttle cable (in conjunction with B263) 19.20.06 = 0.20 hrs - Replace throttle cable (in conjunction with B263) 19.20.89/33 = 0.20 hrs - Inspect throttle cable - B274 only 19.20.89/34 = 0.30 hrs - Replace throttle cable - B274 only

ADDITIONAL INFORMATION:

RECALL ACTION BULLETIN No: ABD274  Land Rover 2002
