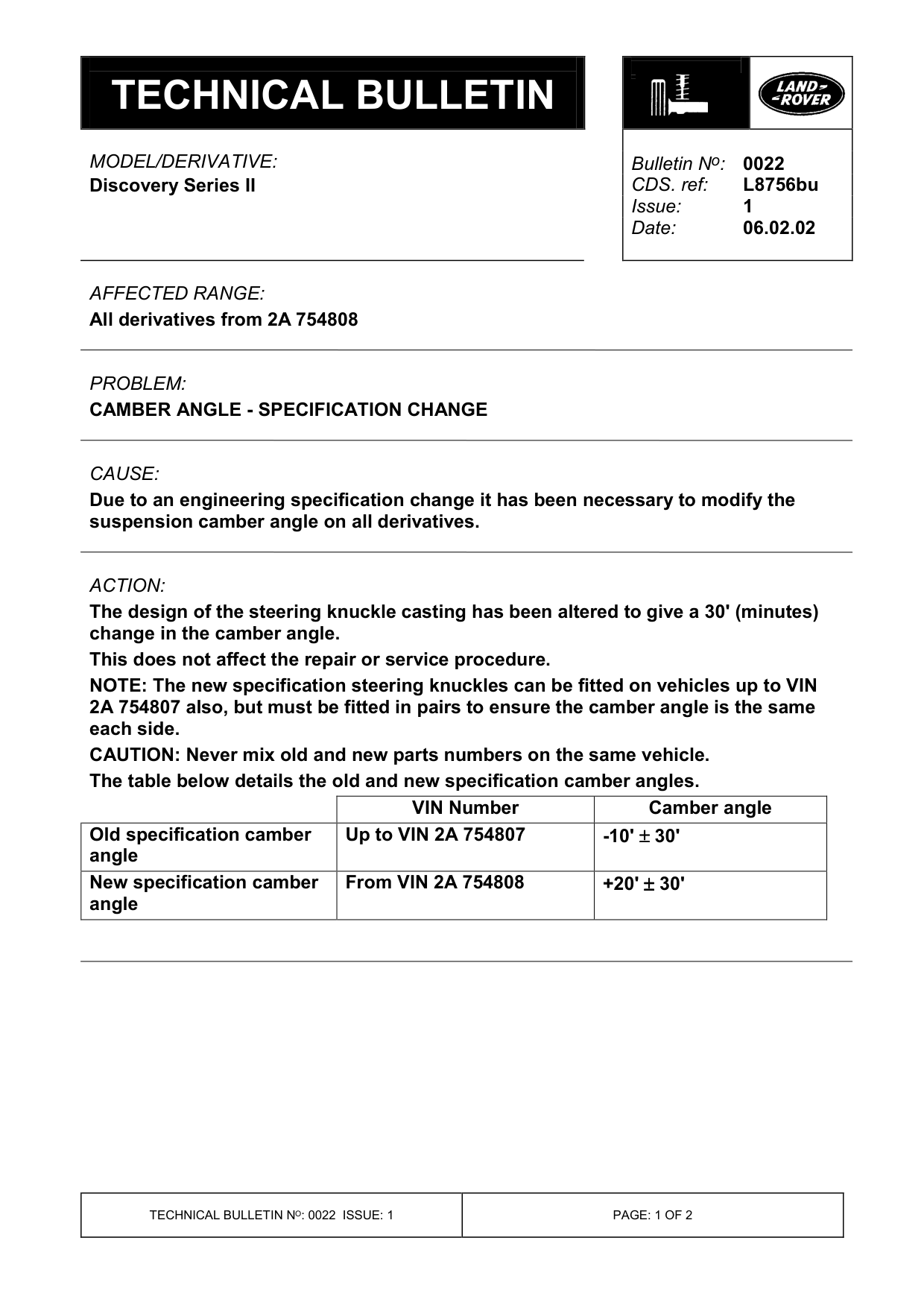

Camber angle - specification change

CAMBER ANGLE - SPECIFICATION CHANGE

Model

Discovery Series II

Affected vehicles

All derivatives from 2A 754808

Date

2002-02-06

Reference

Bulletin 0022, CDS ref L8756bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All derivatives from 2A 754808

PROBLEM:

CAMBER ANGLE - SPECIFICATION CHANGE

CAUSE:

Due to an engineering specification change it has been necessary to modify the suspension camber angle on all derivatives.

ACTION:

The design of the steering knuckle casting has been altered to give a 30' (minutes) change in the camber angle. This does not affect the repair or service procedure. NOTE: The new specification steering knuckles can be fitted on vehicles up to VIN 2A 754807 also, but must be fitted in pairs to ensure the camber angle is the same each side. CAUTION: Never mix old and new parts numbers on the same vehicle. The table below details the old and new specification camber angles.

Old specification camber Up to VIN 2A 754807 angle New specification camber From VIN 2A 754808 angle

Bulletin N o : 0022

VIN Number Camber angle -10' ± 30'

+20' ± 30'

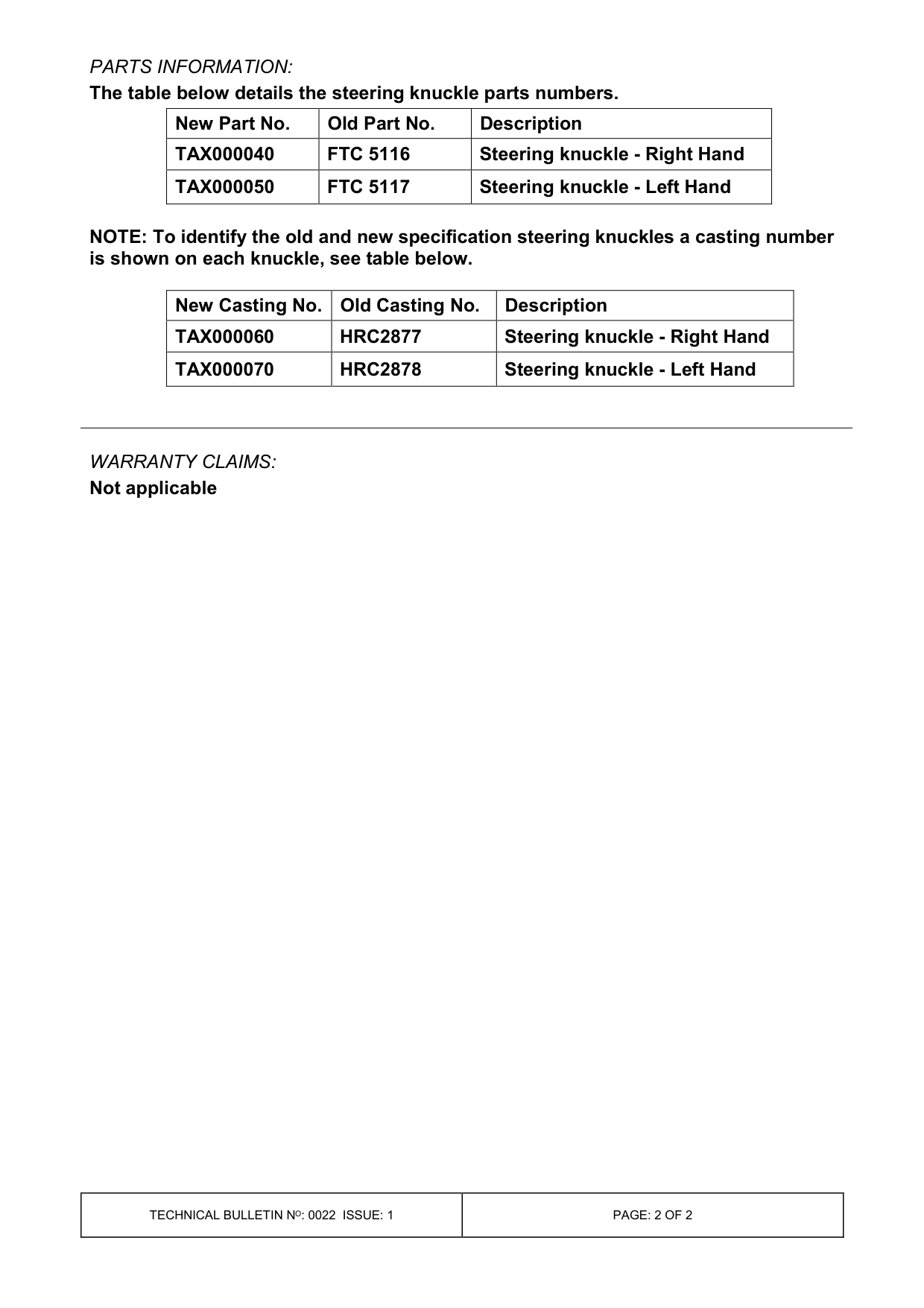

PARTS INFORMATION:

The table below details the steering knuckle parts numbers. New Part No. Old Part No. TAX000040 FTC 5116

TAX000050 FTC 5117

NOTE: To identify the old and new specification steering knuckles a casting number is shown on each knuckle, see table below.

New Casting No. Old Casting No. TAX000060 HRC2877

TAX000070 HRC2878

WARRANTY CLAIMS: Not applicable

Description Steering knuckle - Right Hand

Steering knuckle - Left Hand

Description Steering knuckle - Right Hand

Steering knuckle - Left Hand
