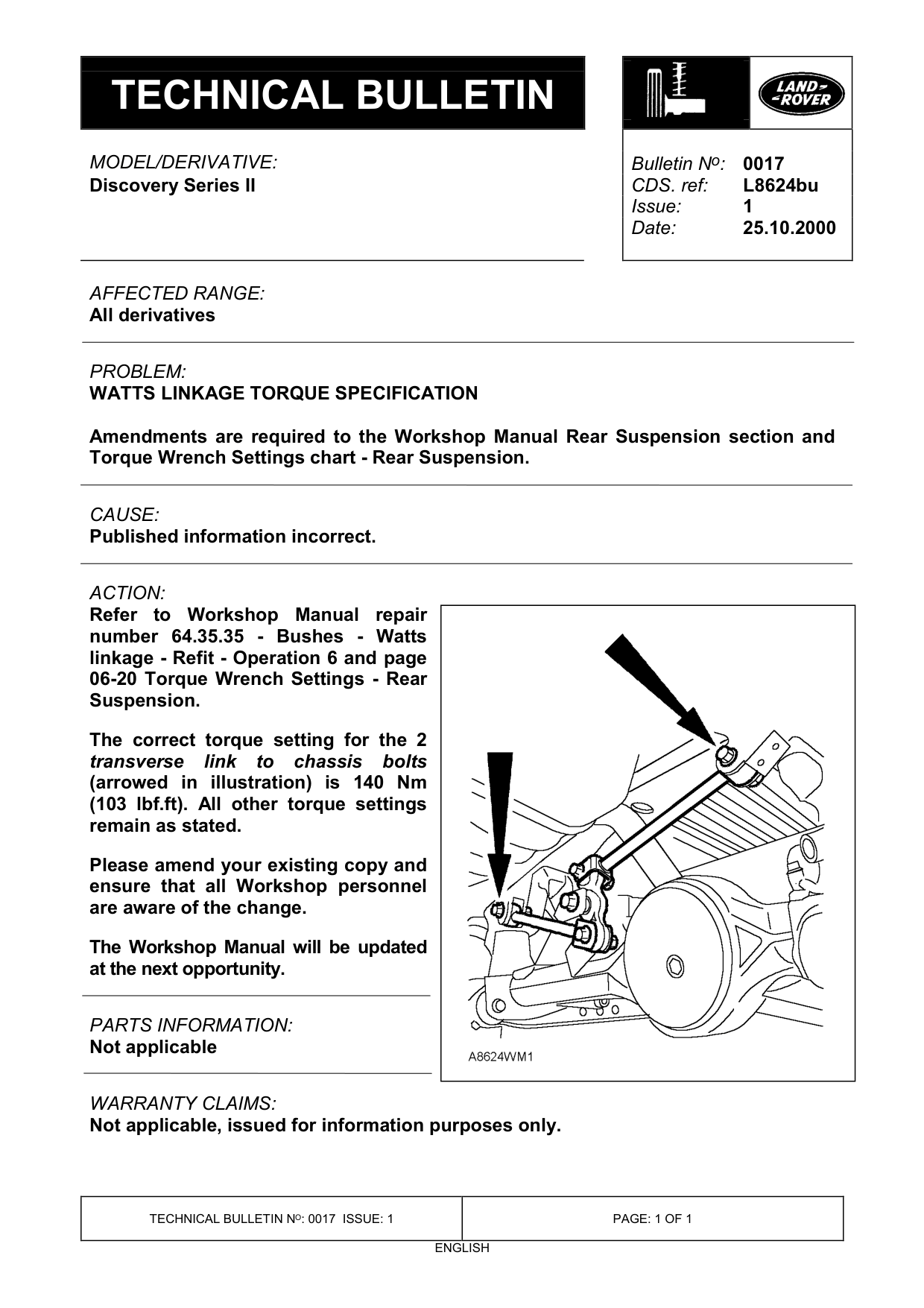

Watts linkage torque specification

WATTS LINKAGE TORQUE SPECIFICATION

Model

Discovery Series II

Affected vehicles

All derivatives

Date

2000-10-25

Reference

Bulletin 0017, CDS ref L8624bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All derivatives

PROBLEM:

WATTS LINKAGE TORQUE SPECIFICATION

Amendments are required to the Workshop Manual Rear Suspension section and Torque Wrench Settings chart - Rear Suspension.

CAUSE:

Published information incorrect.

ACTION:

Refer to Workshop Manual repair number 64.35.35 - Bushes - Watts linkage - Refit - Operation 6 and page 06-20 Torque Wrench Settings - Rear Suspension.

The correct torque setting for the 2 transverse link to chassis bolts (arrowed in illustration) is 140 Nm (103 lbf.ft). All other torque settings remain as stated.

Please amend your existing copy and ensure that all Workshop personnel are aware of the change.

The Workshop Manual will be updated at the next opportunity.

PARTS INFORMATION:

Not applicable

WARRANTY CLAIMS: Not applicable, issued for information purposes only.

Bulletin N o : 0017 L8624bu 1 25.10.2000
