Gear selector position indicator adrift

GEAR SELECTOR POSITION INDICATOR ADRIFT

Model

Discovery Series II

Affected vehicles

All derivatives with automatic transmission

Date

1999-04-14

Reference

Bulletin 0011, CDS ref L8515bu

Bulletin text

Discovery Series II

AFFECTED RANGE:

All derivatives with automatic transmission

PROBLEM:

GEAR SELECTOR POSITION INDICATOR ADRIFT

The selector position indicator assembly is insecure on the centre console.

CAUSE:

The four selector indicator retaining lugs have not entered the sockets on the centre console correctly and have been damaged.

ACTION:

On customer complaint of the above, rectify as follows:

1. Remove the gear lever knob.

2. Lift the selector indicator from the centre console.

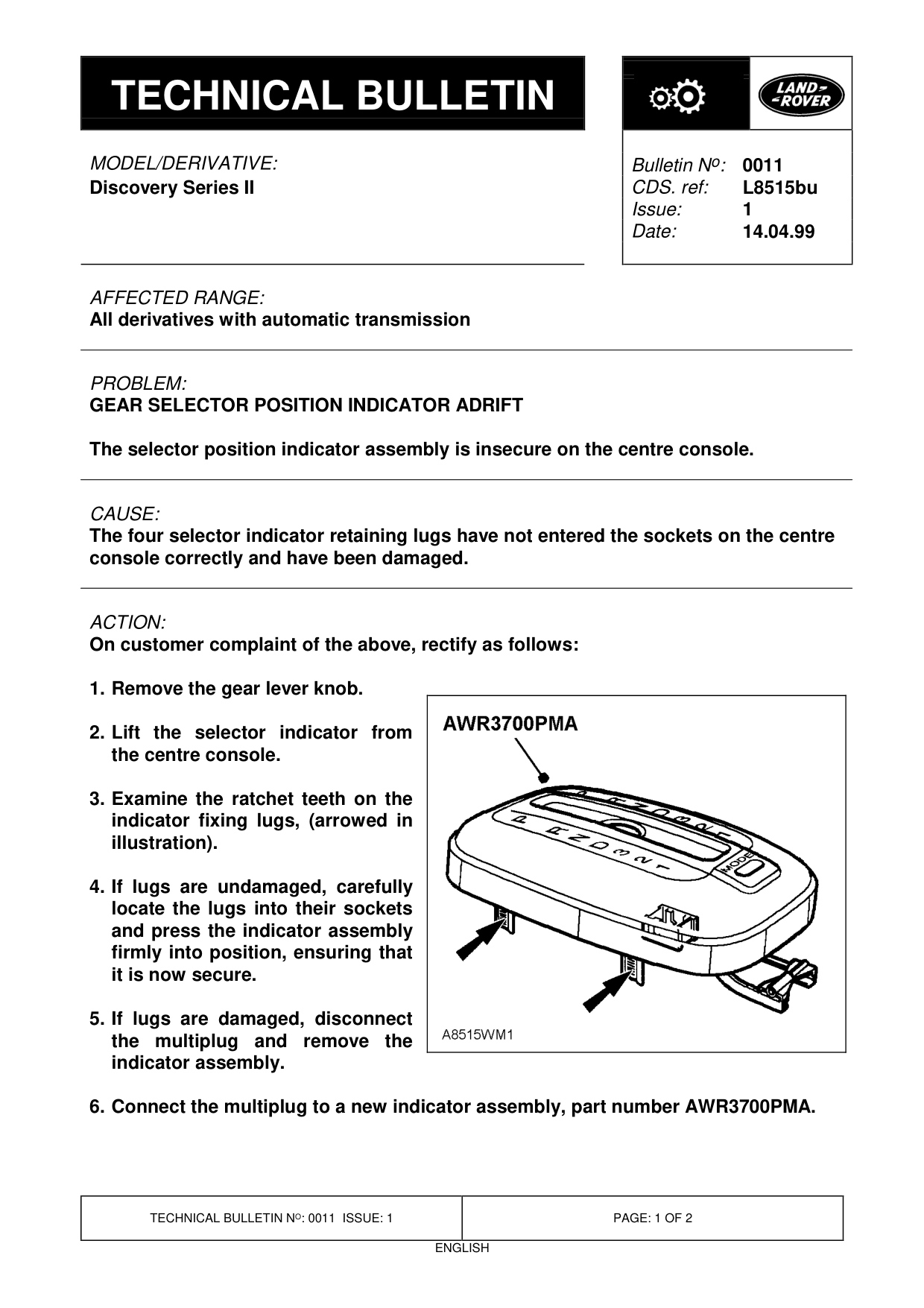

3. Examine the ratchet teeth on the indicator fixing lugs, (arrowed in illustration).

4. If lugs are undamaged, carefully locate the lugs into their sockets and press the indicator assembly firmly into position, ensuring that it is now secure.

5. If lugs are damaged, disconnect the multiplug and remove the indicator assembly.

6. Connect the multiplug to a new indicator assembly, part number AWR3700PMA.

Bulletin N o : 0011 L8515bu 1 14.04.99

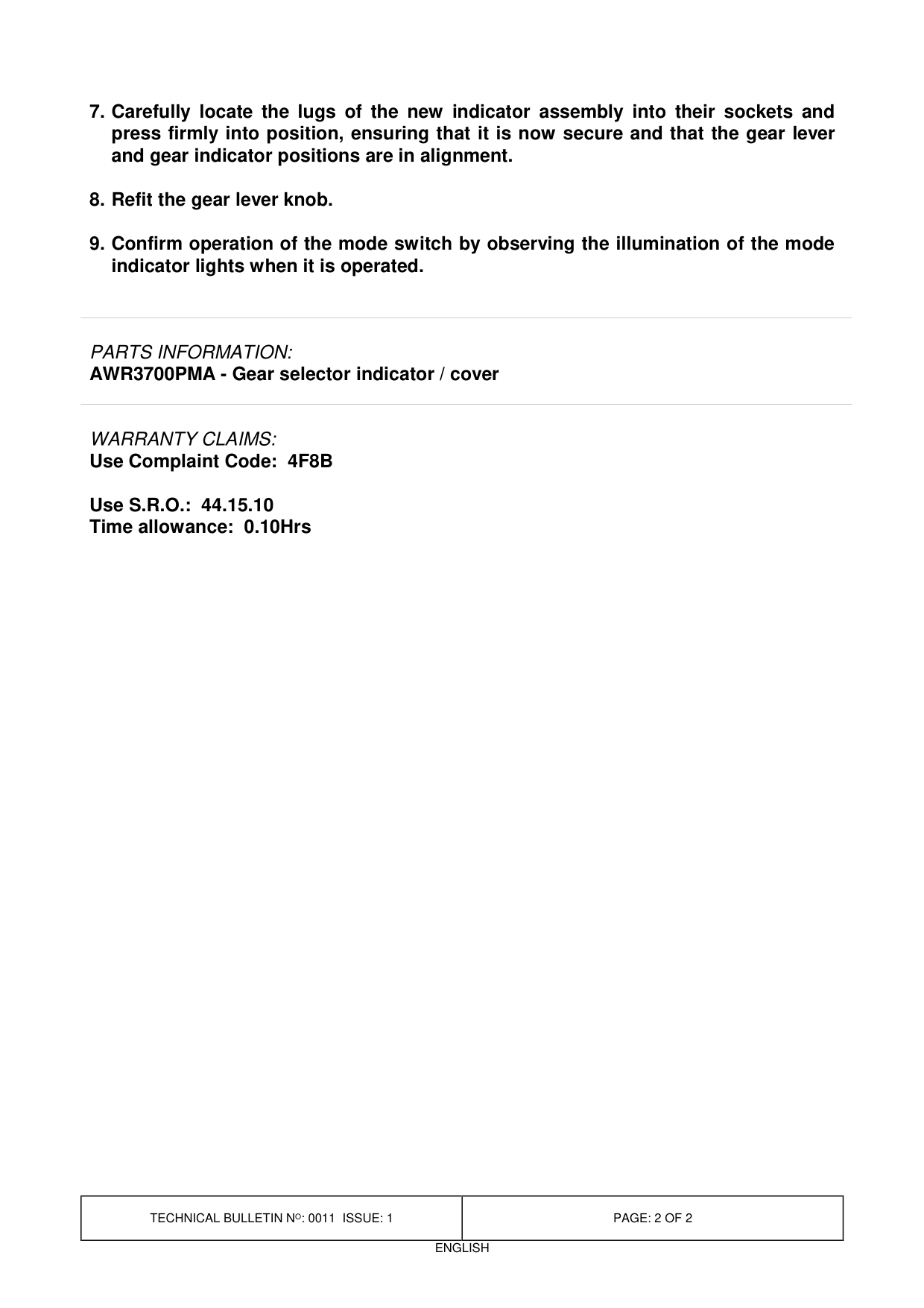

7. Carefully locate the lugs of the new indicator assembly into their sockets and press firmly into position, ensuring that it is now secure and that the gear lever and gear indicator positions are in alignment.

8. Refit the gear lever knob.

9. Confirm operation of the mode switch by observing the illumination of the mode indicator lights when it is operated.

PARTS INFORMATION:

AWR3700PMA - Gear selector indicator / cover

WARRANTY CLAIMS: Use Complaint Code: 4F8B

Use S.R.O.: 44.15.10 Time allowance: 0.10Hrs
