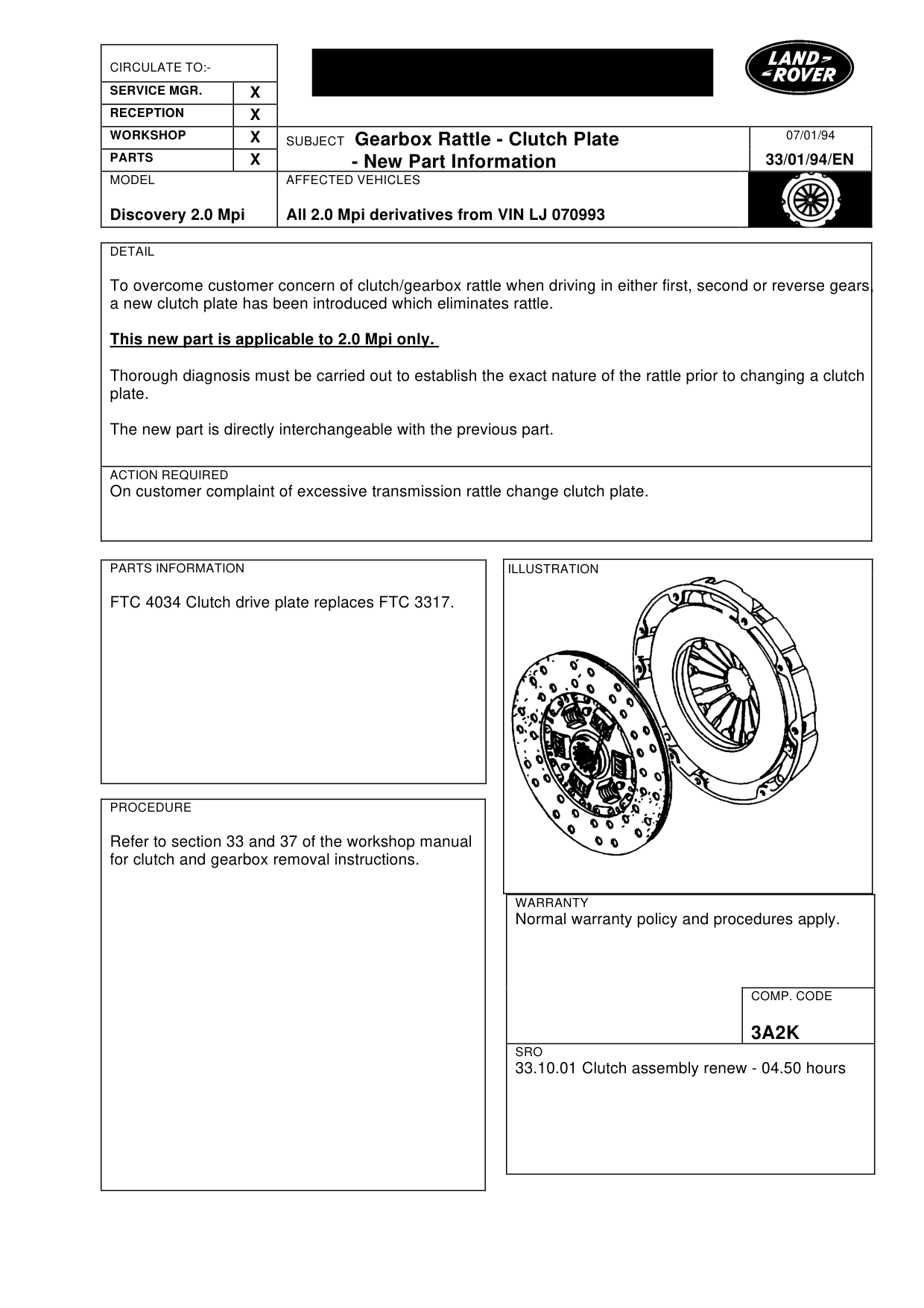

Gearbox rattle-clutch plate-new part introduction

GEARBOX RATTLE-CLUTCH PLATE-NEW PART INTRODUCTION

Model

Discovery 2.0 Mpi

Affected vehicles

All 2.0 Mpi derivatives from VIN LJ 070993

Date

1994-01-07

Reference

07/01/94

Bulletin text

SUBJECT Gearbox Rattle - Clutch Plate - New Part Information

MODEL AFFECTED VEHICLES

Discovery 2.0 Mpi All 2.0 Mpi derivatives from VIN LJ 070993

DETAIL

To overcome customer concern of clutch/gearbox rattle when driving in either first, second or reverse gears, a new clutch plate has been introduced which eliminates rattle.

This new part is applicable to 2.0 Mpi only.

Thorough diagnosis must be carried out to establish the exact nature of the rattle prior to changing a clutch plate.

The new part is directly interchangeable with the previous part.

ACTION REQUIRED

On customer complaint of excessive transmission rattle change clutch plate.

PARTS INFORMATION

FTC 4034 Clutch drive plate replaces FTC 3317.

PROCEDURE

Refer to section 33 and 37 of the workshop manual for clutch and gearbox removal instructions.

07/01/94

33/01/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

3A2K

SRO

33.10.01 Clutch assembly renew - 04.50 hours
