Discovery II
COOLING SYSTEM - V8
26-2-16 REPAIRS

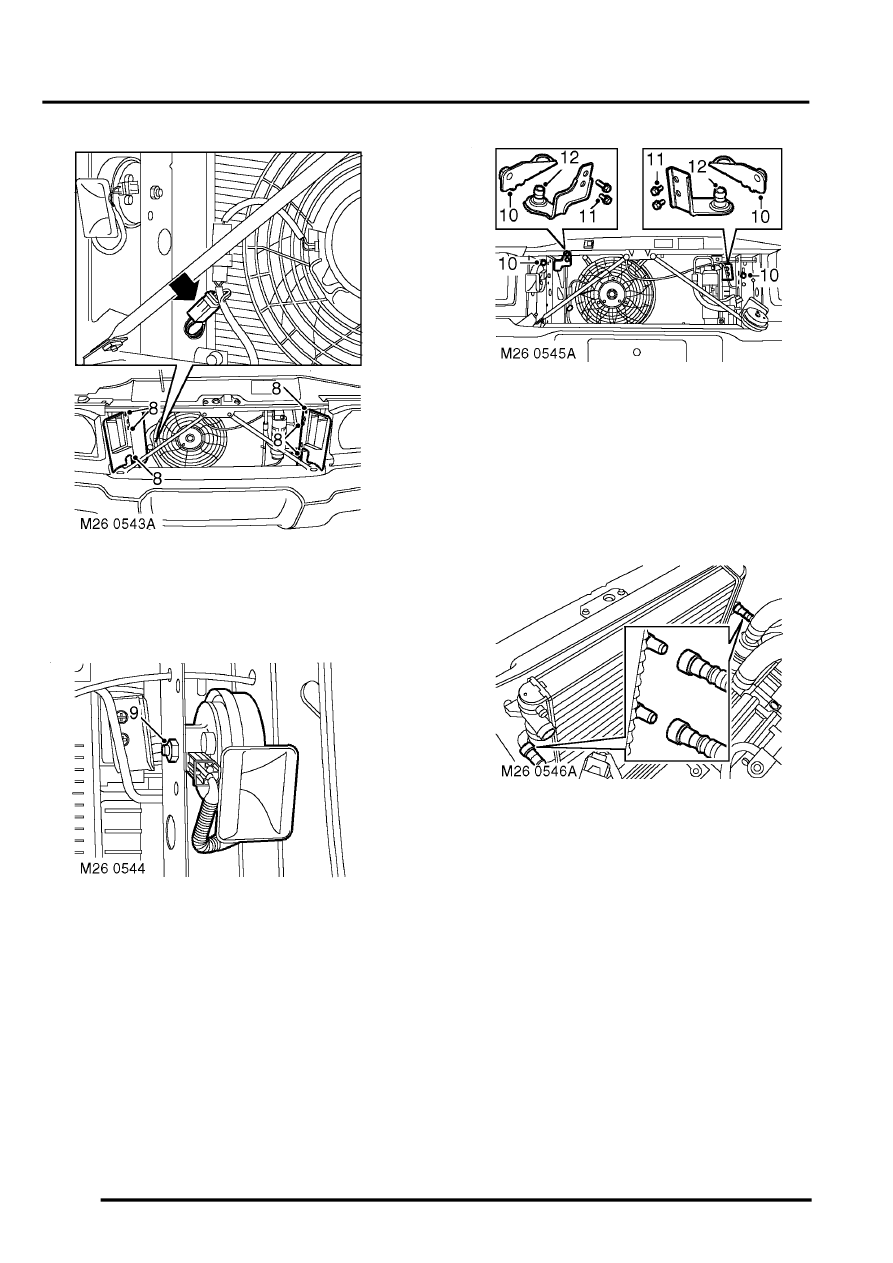

8. Remove 6 scrivets and remove LH and RH air
deflectors from front panel. Disconnect
multiplug of gearbox oil temperature sensor
(arrowed).
9. Remove nut and move horn aside.
10. Remove 2 bolts securing radiator LH and RH
upper mounting brackets to body panel and
remove brackets.
11. Remove 4 screws securing air conditioning
condenser LH and RH upper mounting
brackets to condenser.
12. Remove brackets with rubber mounts from
radiator extension brackets.
13. Position absorbent cloth under each cooler
hose to collect oil spillage.
14. Push against coupling release rings and
disconnect hoses from gearbox oil cooler.
CAUTION: Always fit plugs to open
connections to prevent contamination.
15. If fitted: Push against coupling release rings
and disconnect hoses from engine oil cooler.
