Discovery II
EMISSION CONTROL - V8
17-2-64 REPAIRS
Pump - Fuel Leak Detection - up to 03MY
$% 17.45.41
Remove
1. Raise the vehicle on lift.
2. Disconnect multiplug from fuel leak detection
pump.
3. Release leak detection air filter hose from top of
pump.
4. Remove 3 Torx screws securing pump to
mounting bracket.
5. Remove clip securing EVAP canister hose to
pump.
6. Release EVAP canister hose from pump.
7. Remove pump.
Refit
1. Connect EVAP canister hose to pump and
secure with clip.
2. Position pump to mounting bracket and secure
with Torx screws.
3. Connect leak detection air filter hose to top of
leak detection pump.
4. Connect multiplug to pump.
5. Lower vehicle.

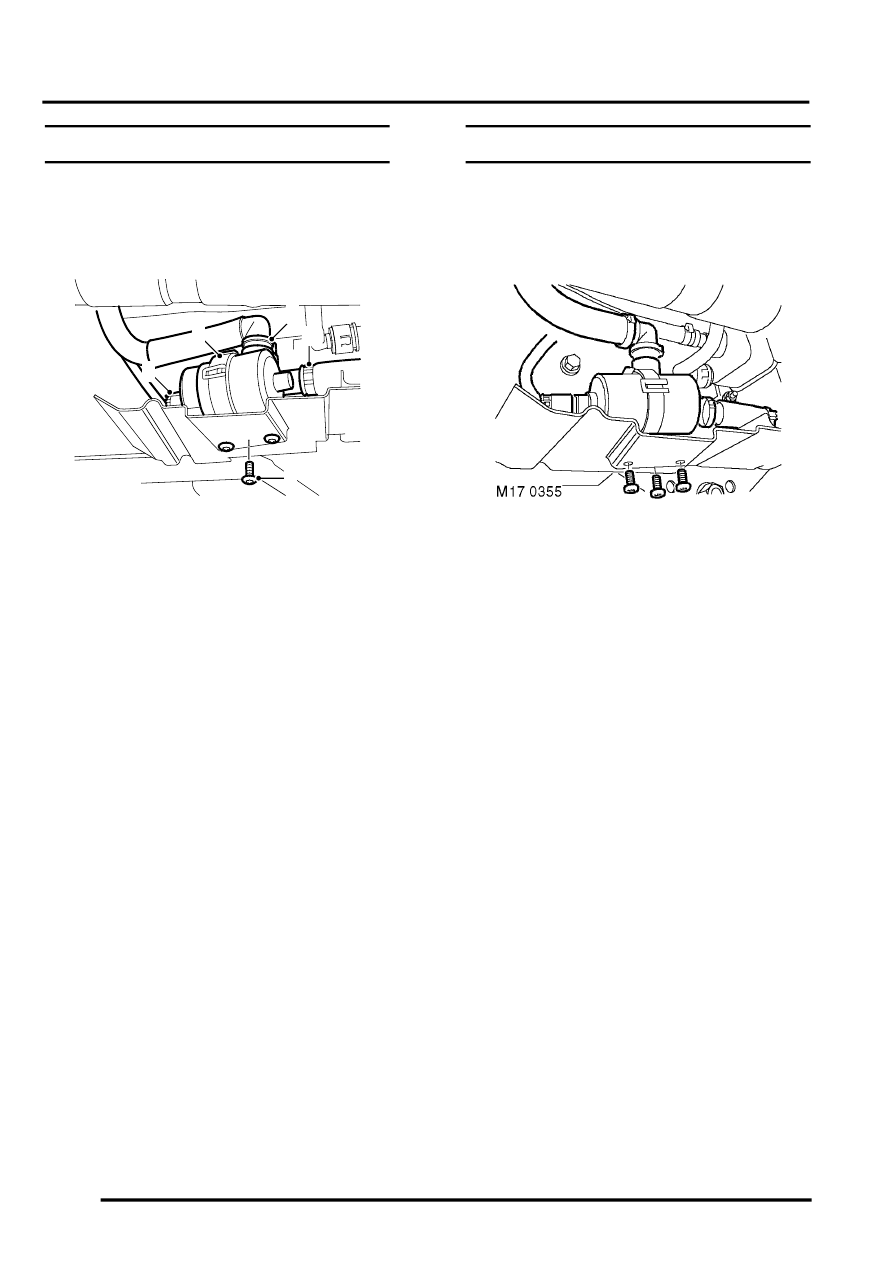

Pump - fuel leak detection - from 03MY
$% 17.45.41
Remove
1. Raise the vehicle on lift.
2. Disconnect multiplug from the fuel leak
detection pump.
3. Remove 3 screws securing the fuel leak
detection pump to the chassis mounting
bracket.
4. Position absorbent cloth around fuel hoses to
collect any fuel spillage.
5. Disconnect the fuel leak detection filter pipe
from the fuel leak detection pump.
CAUTION: Always fit plugs to open
connections to prevent contamination.
6. Remove and discard clip securing EVAP pipe
to the fuel leak detection pump and disconnect
the pipe.
7. Remove the fuel leak detection pump.
Refit
1. Connect the EVAP pipe to the fuel leak
detection pump and secure with a new clip.
2. Connect the fuel leak detection filter pipe to the
fuel leak detection pump.
3. Remove absorbent cloth.
4. Fit and tighten 3 screws securing the fuel leak
detection pump to the chassis mounting
bracket.
5. Connect multiplug to the fuel leak detection
pump.
6. Lower the vehicle lift.
M17 0235
2
3
4
5
7
