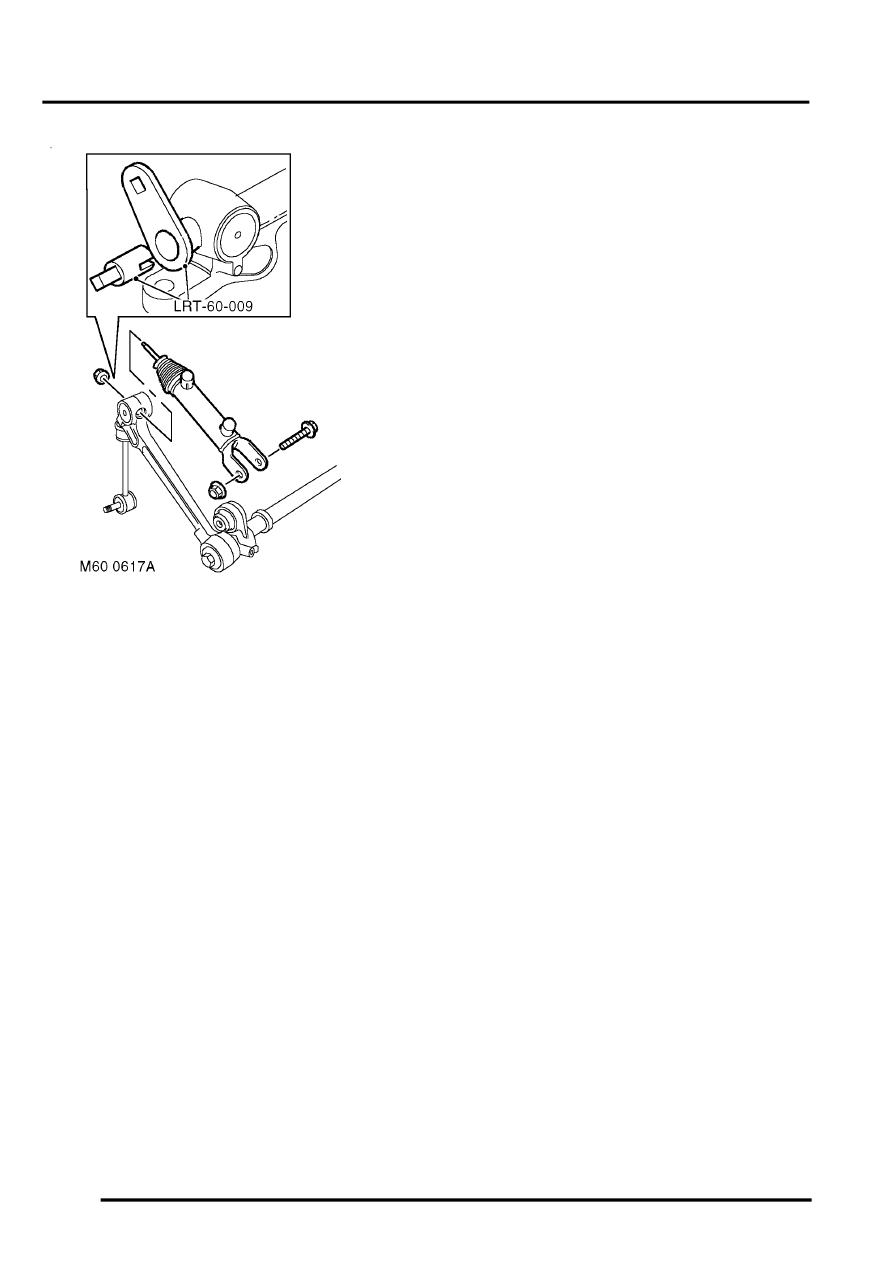

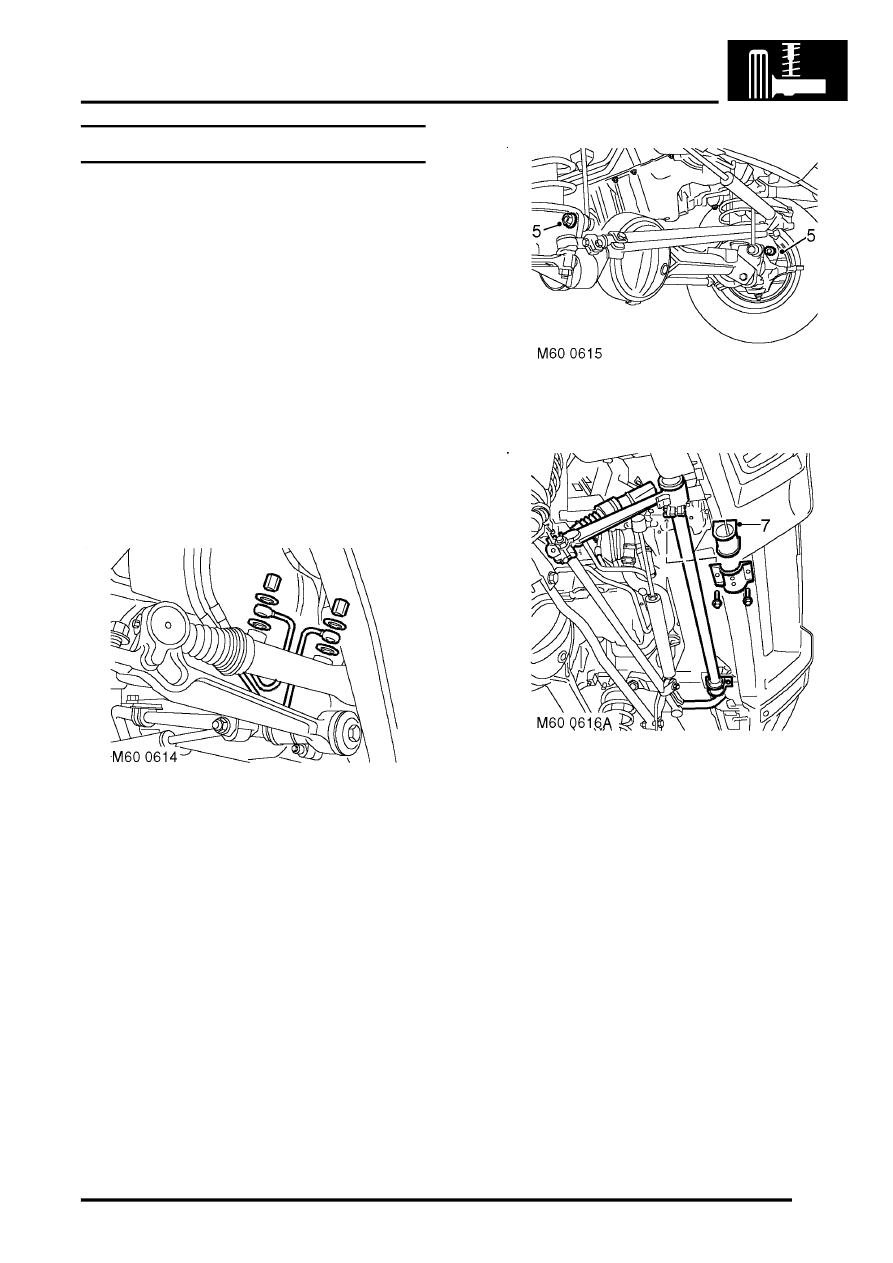

9. Use LRT-60-009 to remove nut securing
actuator to long arm.
10. Remove nut and bolt securing actuator to short
arm and remove actuator.
CAUTION: The short arm and torsion bar
are supplied as an assembly and must not
be separated.
Refit
1. Fit actuator to torsion bar. Use LRT-60-009to
tighten actuator to long arm nut to 48 Nm (35
lbf.ft). Tighten actuator to short arm nut and bolt
to 180 Nm (133 lbf.ft).
2. Ensure torsion bar mounting rubber mating
faces are clean and free from damage.
3. Fit mounting rubbers to torsion bar.
4. With assistance, position torsion bar and
actuator assembly to vehicle. Fit clamp plates
and tighten bolts to 45 Nm (33 lbf.ft).
5. Ensure washer is in place on lower ball joint of
each anti-roll bar link, then connect lower ball
joint to axle and tighten nuts to 100 Nm (74
lbf.ft).
6. Connect pipes to actuator with cap nuts and
new sealing washers. Tighten cap nuts to 29
Nm (21 lbf.ft). Ensure pipes are not under
tension or kinked.
7. Renew ACE high pressure filter.
8. Bleed ACE hydraulic system.
ADJUSTMENTS, ACE hydraulic system
bleeding.
9. Fit RH front road wheel and tighten nuts to 140
Nm (103 lbf.ft).
10. Lower vehicle.
