Discovery II
HARNESSES
86-7-2
REPAIRS

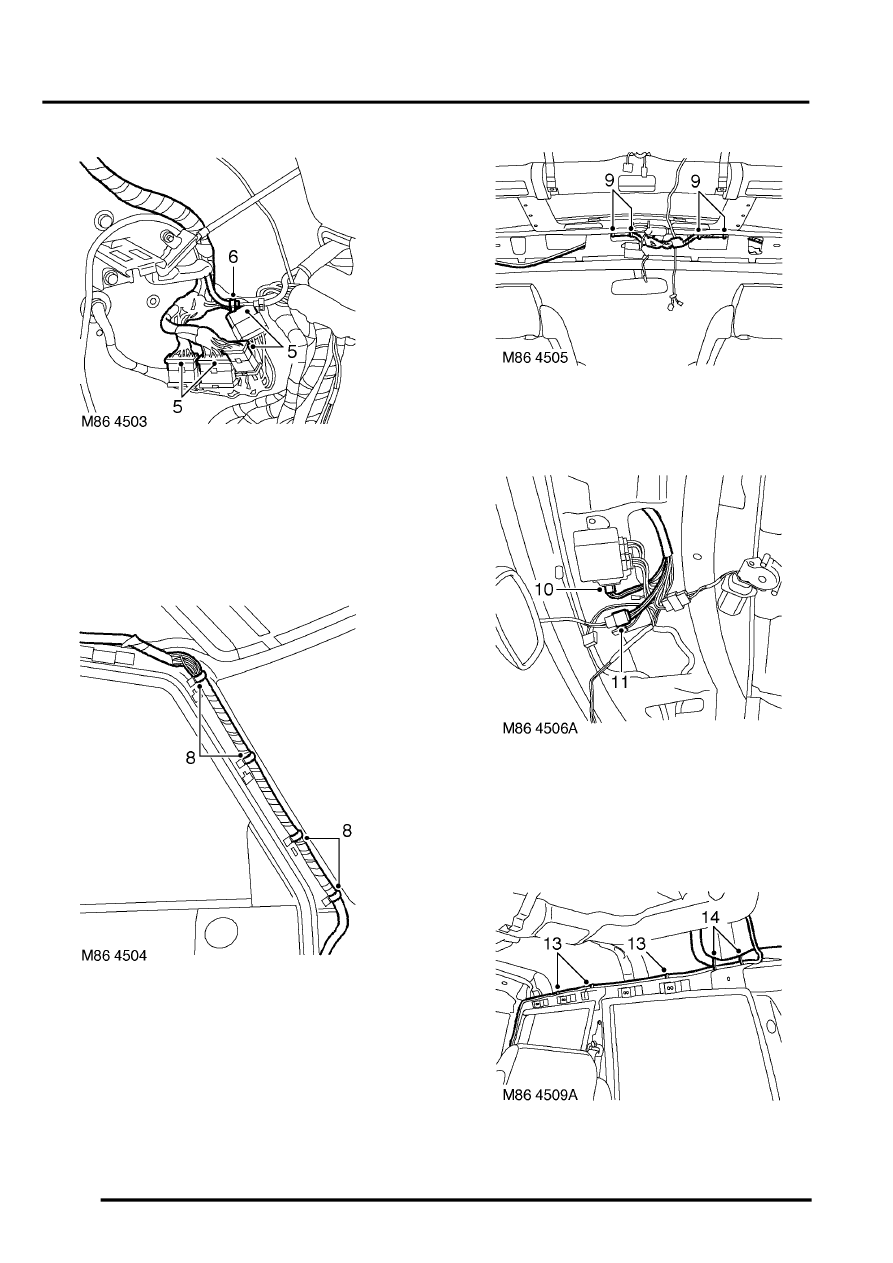

5. Release and disconnect 4 multiplugs from LH
lower 'A' post.
6. Release clip and disconnect rear washer pipe
from LH lower 'A' post.
7. Release harness from behind bonnet release
cable.
8. Release harness from 4 retainers in LH upper
'A' post and collect protective sleeves.
9. Release 4 clips securing harness to centre of
roof.
10. Disconnect multiplug from ACE accelerometer.
11. Disconnect multiplug from interior mirror.
12. Feed harness through roof to upper 'A' post.
13. Release 3 retainers securing harness to RH
roof panel.
14. Release 2 cable clips securing body harness to
sunroof harness.
