Discovery II
HARNESSES
REPAIRS
86-7-5

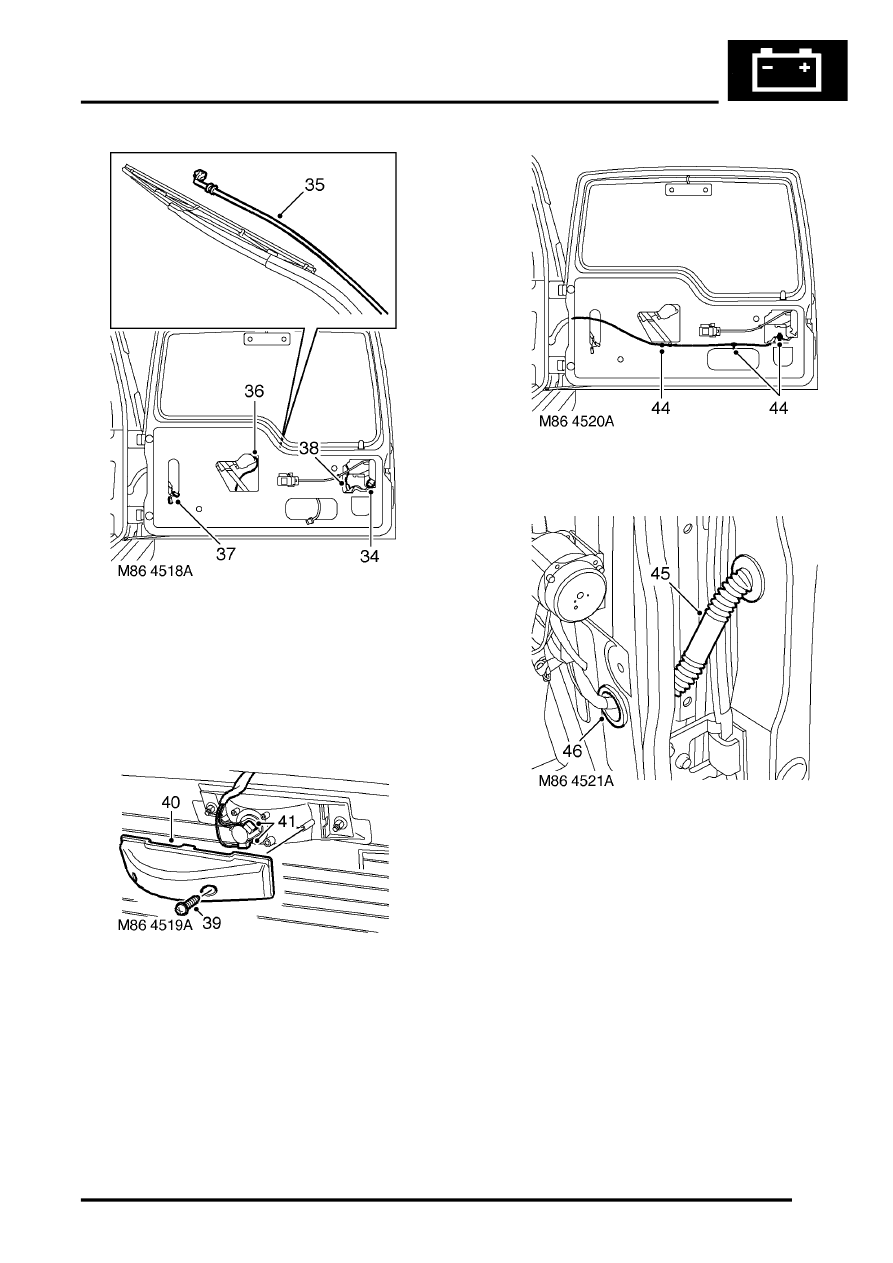

34. Disconnect multiplug from door latch.
35. Disconnect multiplug and washer tube from
rear wiper arm.
36. Disconnect multiplug from rear wiper motor.
37. Disconnect 2 Lucars from heated rear window
(HRW).
38. Disconnect multiplug from number plate lamp.
39. Remove 2 screws securing centre high
mounted stop lamp (CHMSL) cover to tail door
glass.
40. Remove CHMSL cover.
41. Disconnect 2 Lucars from CHMSL.
42. Attach draw string to harness and draw
harness through tail door.
43. Disconnect draw string from harness, and tape
to the tail door.
44. Release 3 clips securing harness to tail door.
45. Release harness sleeve from door outer edge
and feed harness through door.
46. Release grommet from 'E' post and feed tail
door harness back to upper 'E' post.
