HARNESSES
86-7-18 REPAIRS

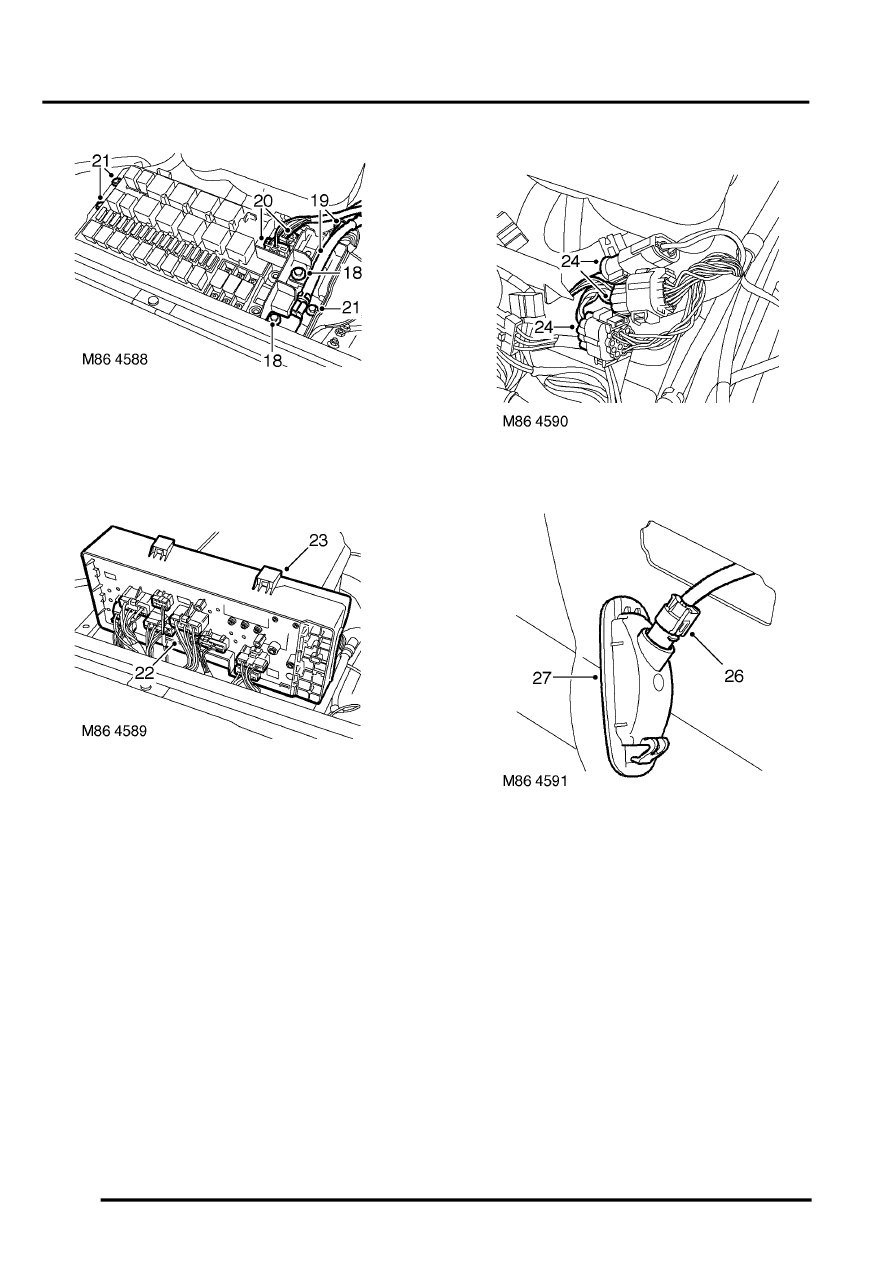

18. Remove 2 bolts securing battery and starter
lead to fuse box.
19. Release leads from fusebox.
20. Remove 2 multiplugs from fusebox front.
21. Remove 3 bolts securing fusebox to body.
22. Release fuse box and remove 9 multiplugs
from rear of fuse box.
23. Remove fuse box.
24. Disconnect 3 multiplugs from chassis harness.
25. Remove RH front indicator repeater lamp from
wing.
26. Disconnect multiplug from repeater lamp.
27. Remove repeater lamp.
28. Attach draw string to indicator lamp harness.
29. Withdraw harness to fuse box.
30. Remove draw string and secure.
