Discovery II
INTERIOR TRIM COMPONENTS
76-3-12 REPAIRS

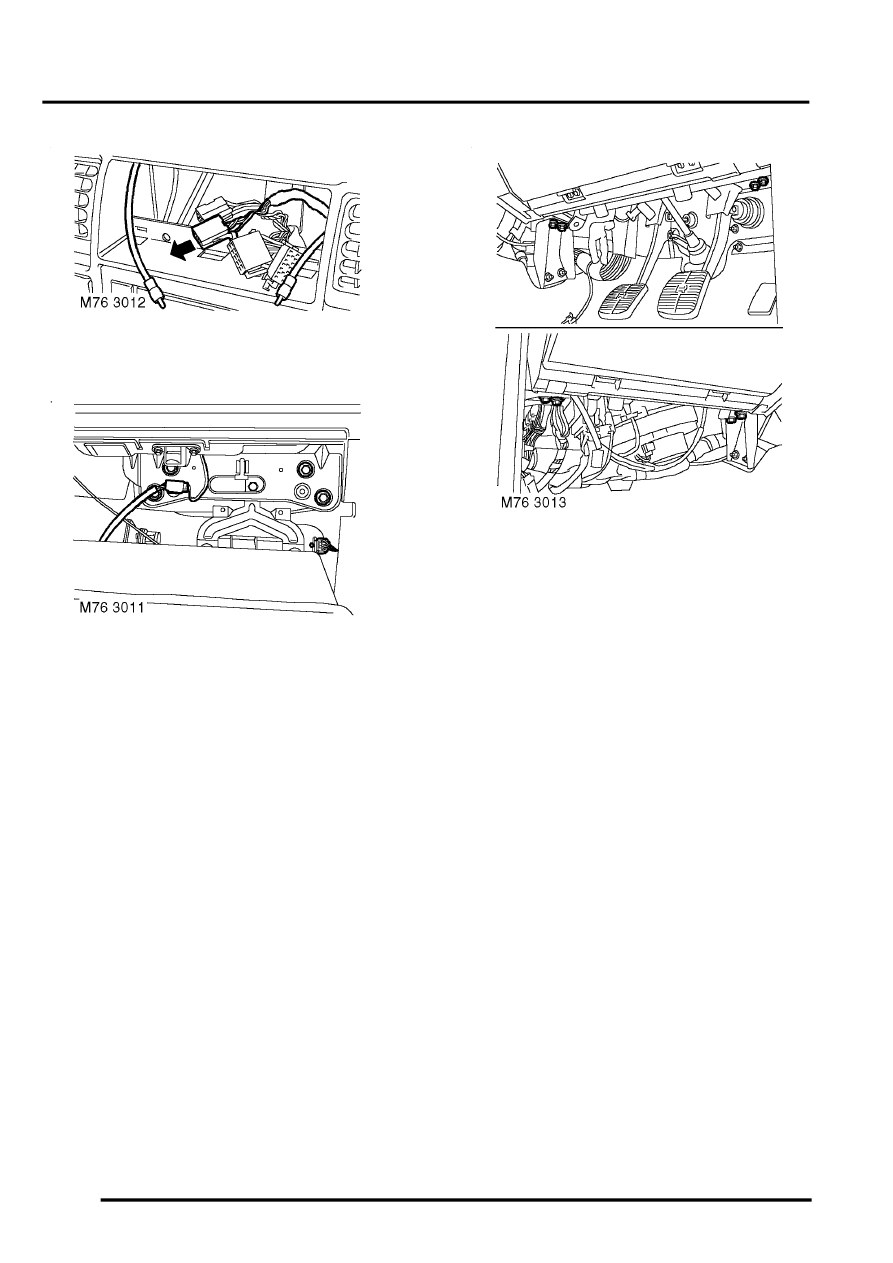

20. Separate blue section from ICE multiplug.
21. Release coaxial cables from fascia panel.
22. Disconnect multiplug from passenger air bag.
23. Disconnect multiplug from blower motor.
24. Working through glove box aperture remove 2
bolts, or 4 bolts if passenger airbag module is
fitted, securing fascia to body.
25. Remove 4 bolts securing lower edge of fascia
to mounting brackets on transmission tunnel.
26. Remove 4 bolts securing lower edge of fascia
to brackets on 'A' post.
27. With assistance carefully remove fascia from
vehicle.
28. If renewing fascia, transfer components to new
fascia as necessary.
Refit
1. With assistance carefully fit fascia and tighten
bolts securing lower edge of fascia to 26 Nm
(19 lbf.ft).
2. Tighten bolts securing fascia to body to 26 Nm
(19 lbf.ft).
3. Fit nuts securingfascia to steering column
bracket to 11 Nm (8 lbf.ft).
4. Secure coaxial cables to fascia and secure blue
multiplug to main ICE multiplug.
5. Models with A/C: Connect heater control
multiplug.
6. Models without A/C: Connect temperature
and air distribution inner cables to heater
control levers. Set temperature control knobs to
fully hot, distribution knob to demist position
and, with flap levers fully closed, secure outer
cables to clips on heater casing.
7. Connect multiplugs to blower motor and
passenger air bag (where fitted).
8. Fit glove box and secure with bolts.
9. Connect fascia harness multiplugs to main
harness and fuse box.
10. Position instrument pack and connect
multiplugs.
