TRANSFER BOX - LT230SE
OVERHAUL
41-51

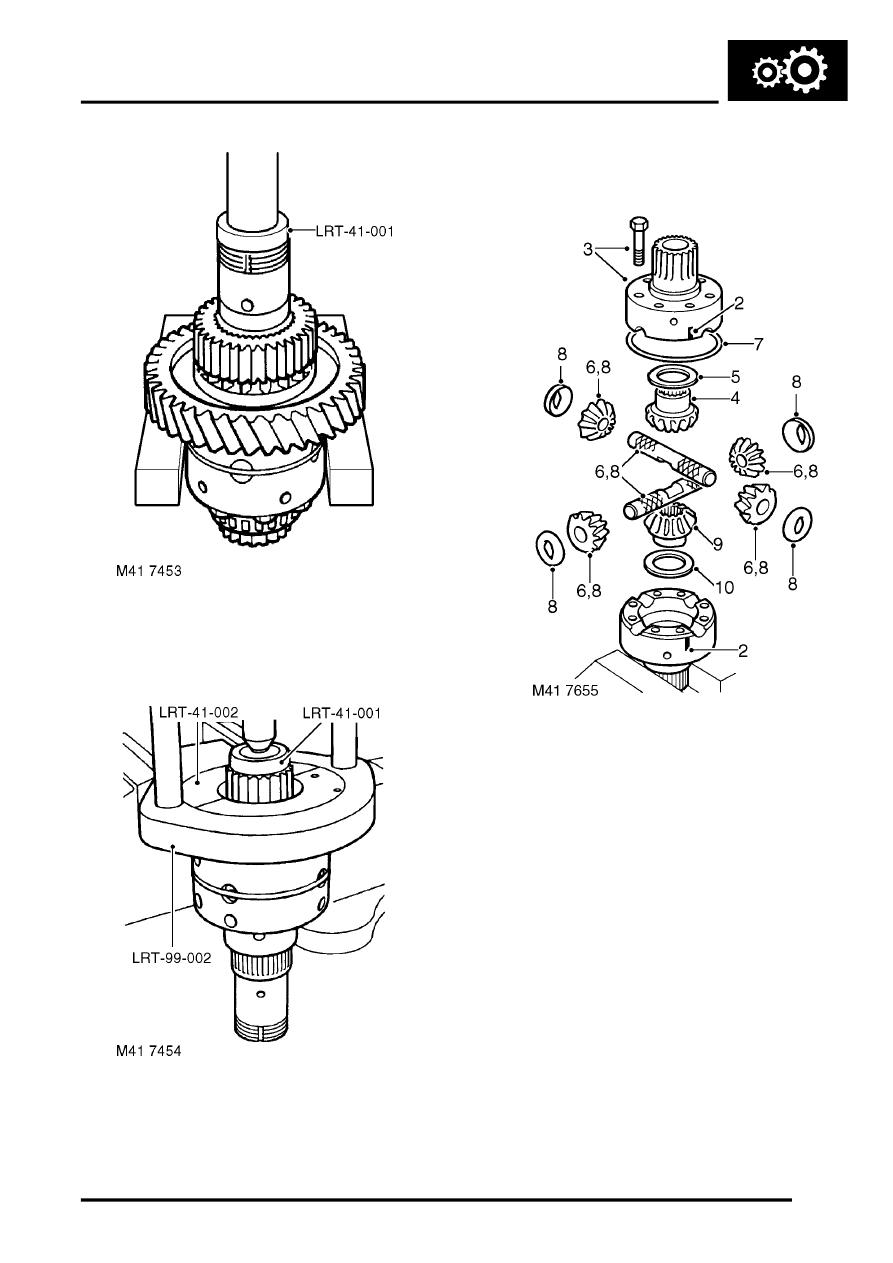

34. Using a suitable press and thrust button LRT-
41-001 remove high/low hub and low range
gear.
35. Position tool LRT-41-002 around front
differential bearing and tool LRT-41-001 thrust
button to differential shaft and press off
bearing.
Disassembly
1. Secure rear half of differential carrier in a soft
jawed vice.
2. Make suitable alignment marks between front
and rear halves of differential carrier.
3. Remove 8 bolts securing front half of carrier to
rear and separate both halves of carrier.
4. Suitably identify front sun gear to front half of
carrier, then remove sun gear.
5. Remove and discard thrust washer.
6. Suitably identify each planet gear to its shaft
and fitted position of each cross shaft to rear
half of carrier
7. Remove retaining ring.
8. Remove planet gears and cross shafts, remove
and discard dished thrust washers.
9. Suitably identify rear sun gear to rear half of
carrier, then remove sun gear.
10. Remove and discard thrust washer.
