Bonnet liner

BONNET LINER

Model

Discovery

Affected vehicles

All

Date

1996-06-26

Reference

26/06/96

Bulletin text

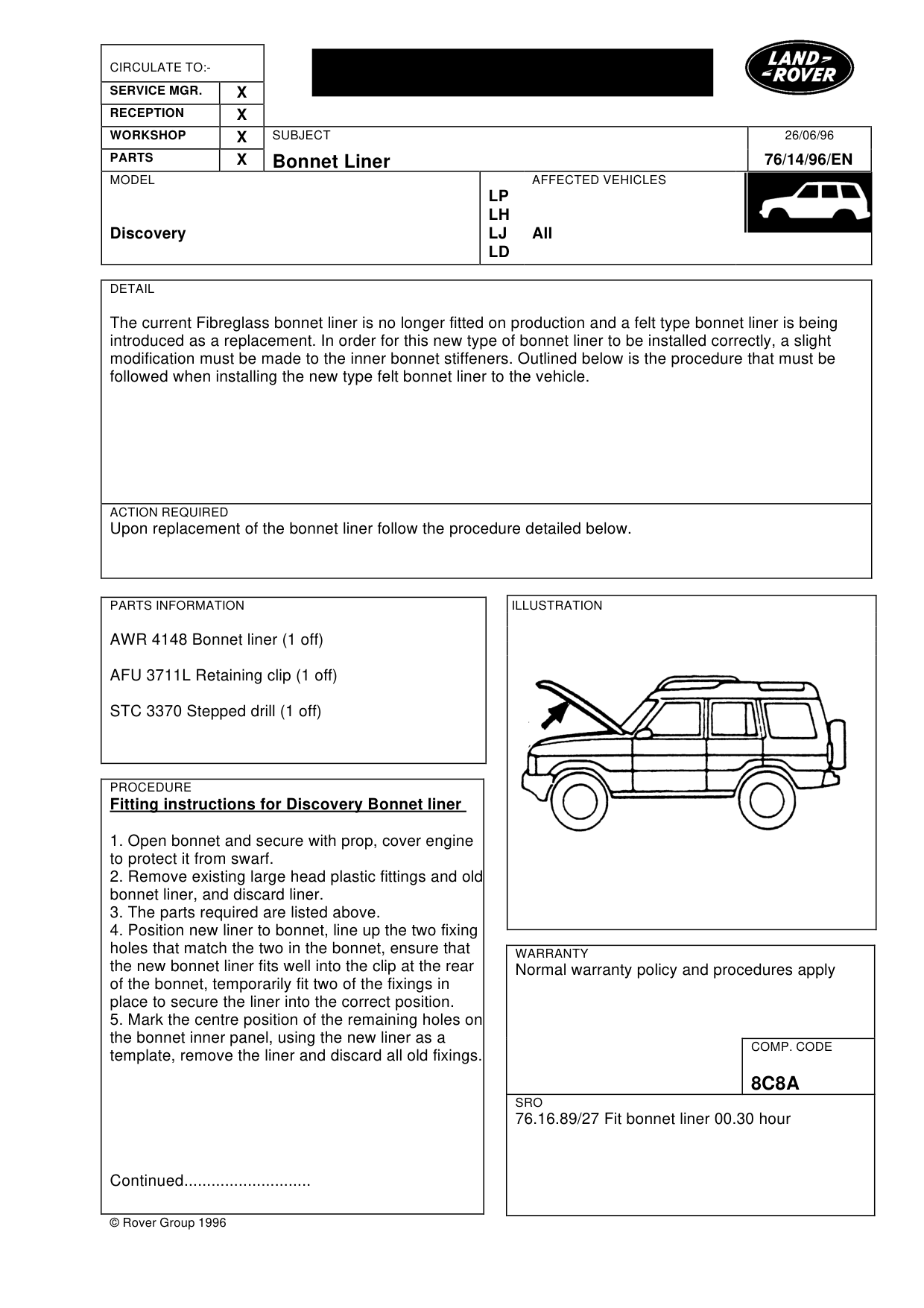

Bonnet Liner

MODEL

Discovery

DETAIL

The current Fibreglass bonnet liner is no longer fitted on production and a felt type bonnet liner is being introduced as a replacement. In order for this new type of bonnet liner to be installed correctly, a slight modification must be made to the inner bonnet stiffeners. Outlined below is the procedure that must be followed when installing the new type felt bonnet liner to the vehicle.

ACTION REQUIRED

Upon replacement of the bonnet liner follow the procedure detailed below.

PARTS INFORMATION

AWR 4148 Bonnet liner (1 off)

AFU 3711L Retaining clip (1 off)

STC 3370 Stepped drill (1 off)

PROCEDURE

Fitting instructions for Discovery Bonnet liner

1. Open bonnet and secure with prop, cover engine to protect it from swarf. 2. Remove existing large head plastic fittings and old bonnet liner, and discard liner. 3. The parts required are listed above. 4. Position new liner to bonnet, line up the two fixing holes that match the two in the bonnet, ensure that the new bonnet liner fits well into the clip at the rear of the bonnet, temporarily fit two of the fixings in place to secure the liner into the correct position. 5. Mark the centre position of the remaining holes on the bonnet inner panel, using the new liner as a template, remove the liner and discard all old fixings.

Continued............................

© Rover Group 1996

26/06/96

76/14/96/EN

AFFECTED VEHICLES

LP LH LJ All LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

8C8A

SRO

76.16.89/27 Fit bonnet liner 00.30 hour

Bonnet Liner

MODEL

Discovery

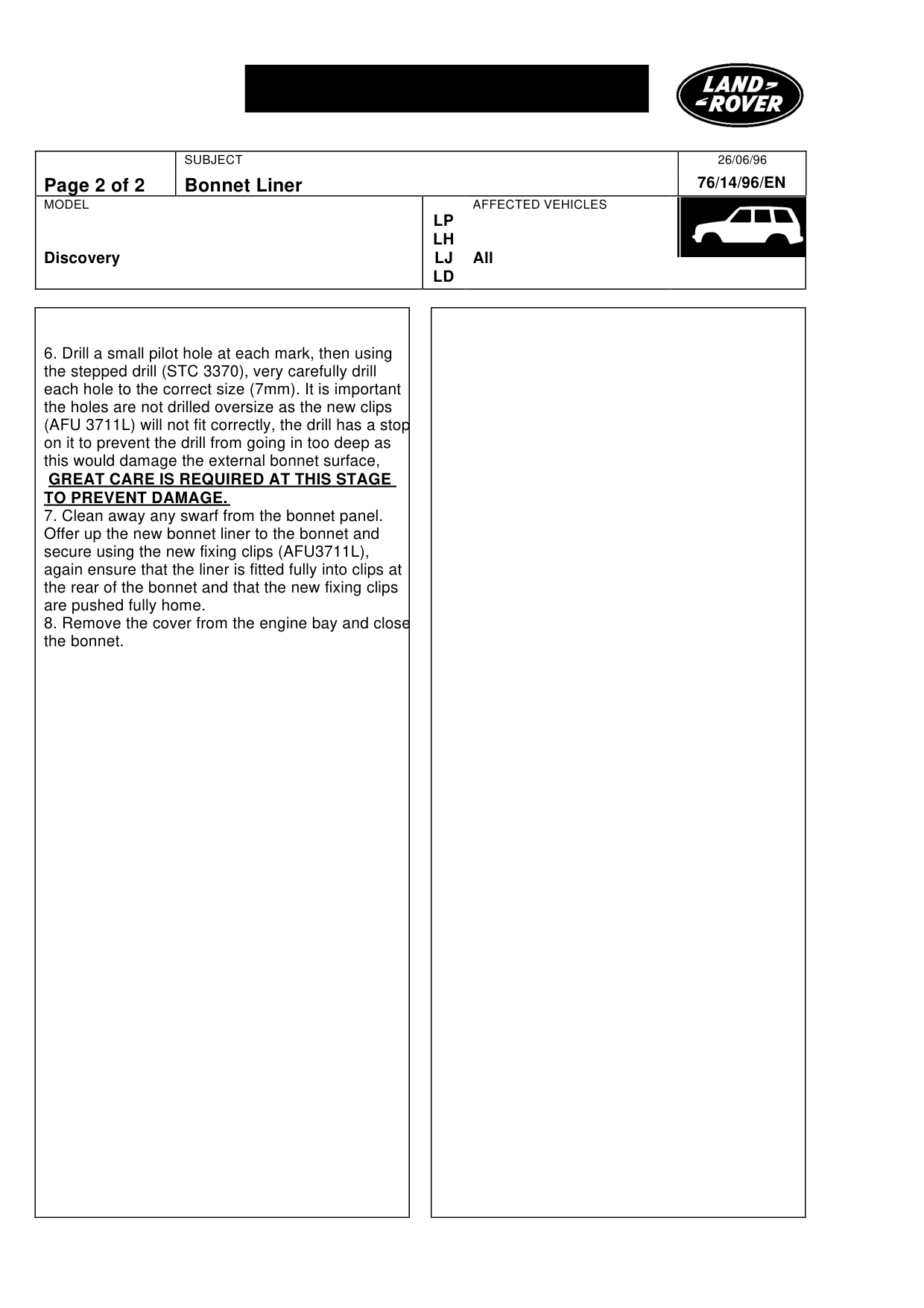

6. Drill a small pilot hole at each mark, then using the stepped drill (STC 3370), very carefully drill each hole to the correct size (7mm). It is important the holes are not drilled oversize as the new clips (AFU 3711L) will not fit correctly, the drill has a stop on it to prevent the drill from going in too deep as this would damage the external bonnet surface, GREAT CARE IS REQUIRED AT THIS STAGE TO PREVENT DAMAGE. 7. Clean away any swarf from the bonnet panel. Offer up the new bonnet liner to the bonnet and secure using the new fixing clips (AFU3711L), again ensure that the liner is fitted fully into clips at the rear of the bonnet and that the new fixing clips are pushed fully home. 8. Remove the cover from the engine bay and close the bonnet.

26/06/96 76/14/96/EN

AFFECTED VEHICLES

LP LH LJ All LD
