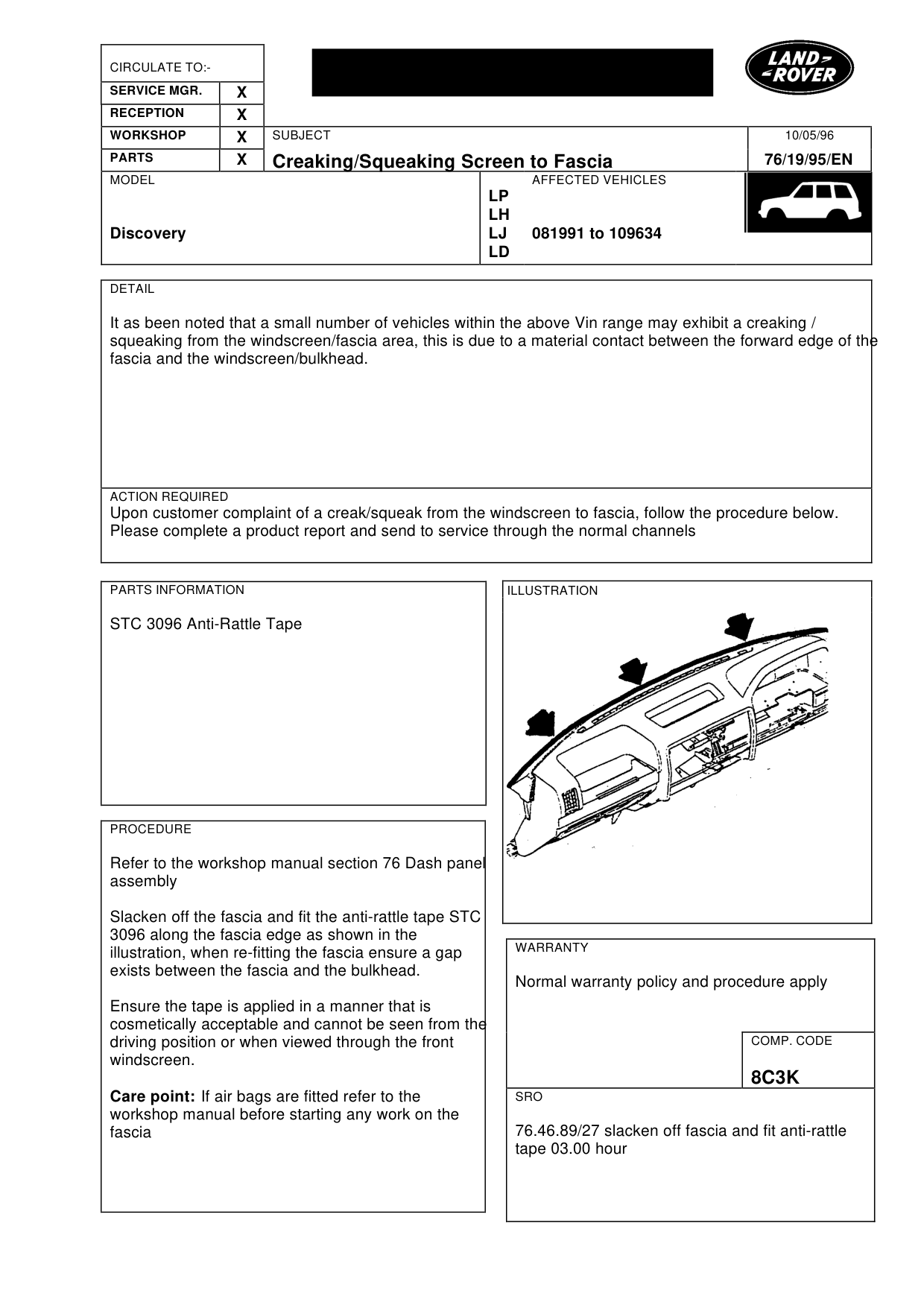

Creaking/squeaking screen to fascia

CREAKING/SQUEAKING SCREEN TO FASCIA

Model

Discovery

Affected vehicles

081991 to 109634

Date

1996-05-10

Reference

10/05/96

Bulletin text

Creaking/Squeaking Screen to Fascia

MODEL

Discovery

DETAIL

It as been noted that a small number of vehicles within the above Vin range may exhibit a creaking / squeaking from the windscreen/fascia area, this is due to a material contact between the forward edge of the fascia and the windscreen/bulkhead.

ACTION REQUIRED

Upon customer complaint of a creak/squeak from the windscreen to fascia, follow the procedure below. Please complete a product report and send to service through the normal channels

PARTS INFORMATION

STC 3096 Anti-Rattle Tape

PROCEDURE

Refer to the workshop manual section 76 Dash panel assembly

Slacken off the fascia and fit the anti-rattle tape STC 3096 along the fascia edge as shown in the illustration, when re-fitting the fascia ensure a gap exists between the fascia and the bulkhead.

Ensure the tape is applied in a manner that is cosmetically acceptable and cannot be seen from the driving position or when viewed through the front windscreen.

Care point: If air bags are fitted refer to the workshop manual before starting any work on the fascia

10/05/96

76/19/95/EN

AFFECTED VEHICLES

LP LH LJ 081991 to 109634 LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8C3K

SRO

76.46.89/27 slacken off fascia and fit anti-rattle tape 03.00 hour
