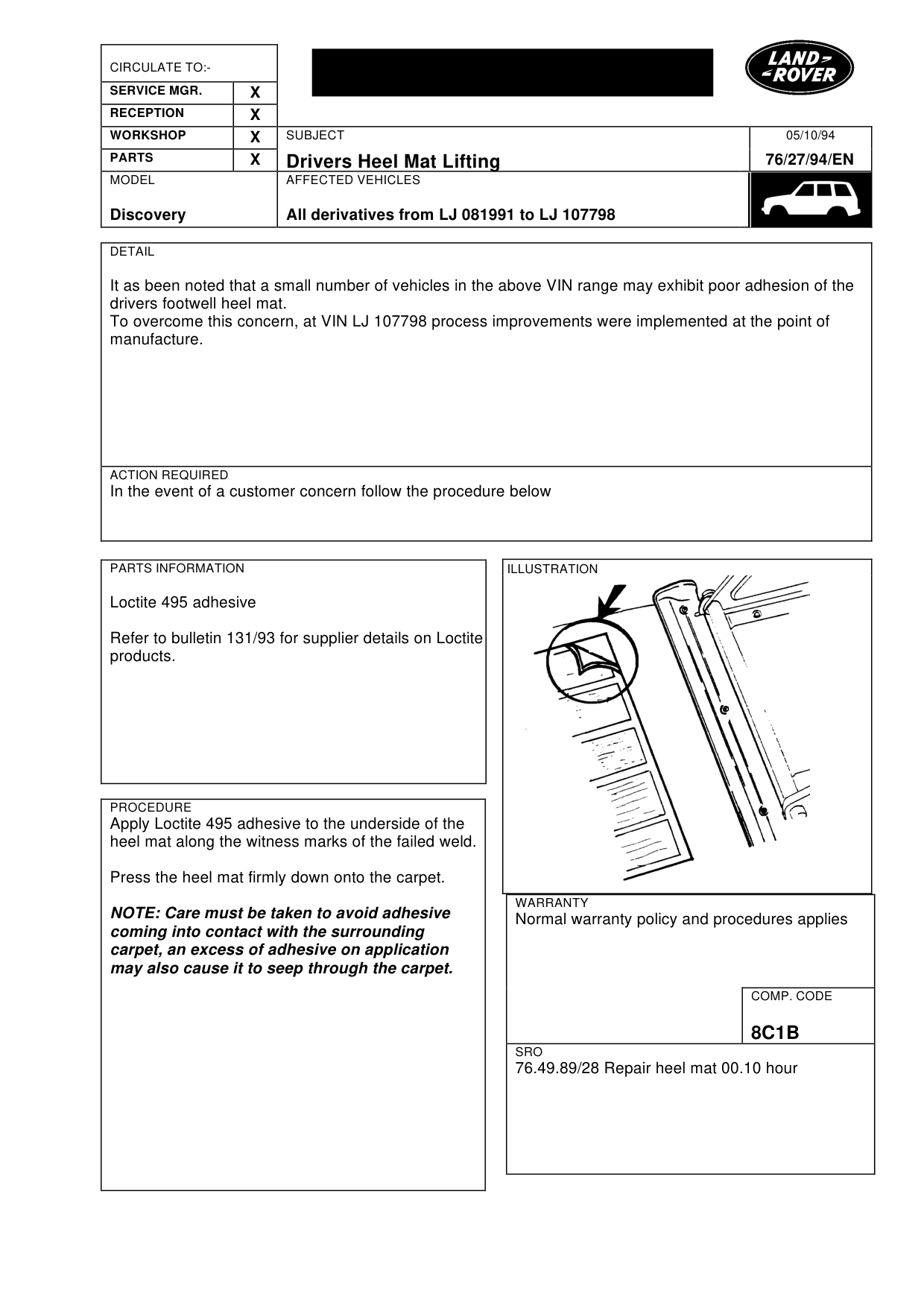

DRIVERS HEEL MAT LIFTING

Model

Discovery

Affected vehicles

All derivatives from LJ 081991 to LJ 107798

Date

1994-10-05

Reference

05/10/94

Bulletin text

Drivers Heel Mat Lifting

MODEL AFFECTED VEHICLES

Discovery All derivatives from LJ 081991 to LJ 107798

DETAIL

It as been noted that a small number of vehicles in the above VIN range may exhibit poor adhesion of the drivers footwell heel mat. To overcome this concern, at VIN LJ 107798 process improvements were implemented at the point of manufacture.

ACTION REQUIRED

In the event of a customer concern follow the procedure below

PARTS INFORMATION

Loctite 495 adhesive

Refer to bulletin 131/93 for supplier details on Loctite products.

PROCEDURE

Apply Loctite 495 adhesive to the underside of the heel mat along the witness marks of the failed weld.

Press the heel mat firmly down onto the carpet.

NOTE: Care must be taken to avoid adhesive coming into contact with the surrounding carpet, an excess of adhesive on application may also cause it to seep through the carpet.

05/10/94

76/27/94/EN

WARRANTY

Normal warranty policy and procedures applies

COMP. CODE

8C1B

SRO

76.49.89/28 Repair heel mat 00.10 hour
