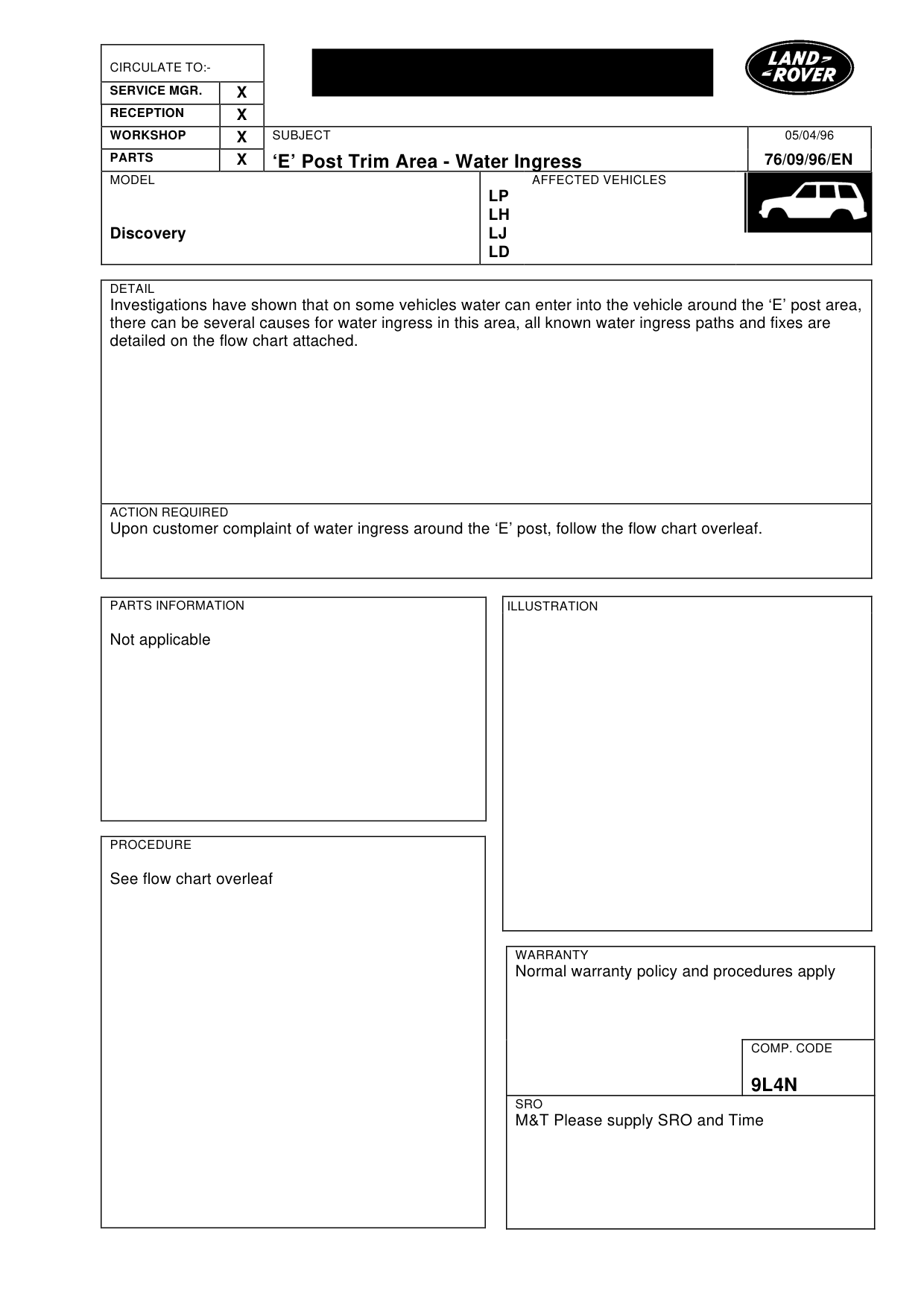

‘E’ Post Trim Area - Water Ingress

MODEL

Discovery

DETAIL

Investigations have shown that on some vehicles water can enter into the vehicle around the ‘E’ post area, there can be several causes for water ingress in this area, all known water ingress paths and fixes are detailed on the flow chart attached.

ACTION REQUIRED

Upon customer complaint of water ingress around the ‘E’ post, follow the flow chart overleaf.

PARTS INFORMATION

Not applicable

PROCEDURE

See flow chart overleaf

05/04/96

76/09/96/EN

AFFECTED VEHICLES

LP LH LJ LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

9L4N

SRO

M&T Please supply SRO and Time

MODEL

WATER EVIDENT IN ‘E’ POST AREA - DIAGNOSTIC CHART

*Remove quarter trim and alpine light trim *Visually check for evidence of leak *If necessery hose water over roof *Rear header/alpine light/fixed glass Continue

Water drips water evident on right rear from alpine floor carpet light

AFFECTED VEHICLES

LP LH LJ LD

water dripa from cantrail inner near ‘E’ post

Continue

Hose water onto roof driprail only -Is leak still evident?
