Load space cover creaking

LOAD SPACE COVER CREAKING

Model

Discovery

Affected vehicles

All

Date

1997-06-03

Reference

03/06/97

Bulletin text

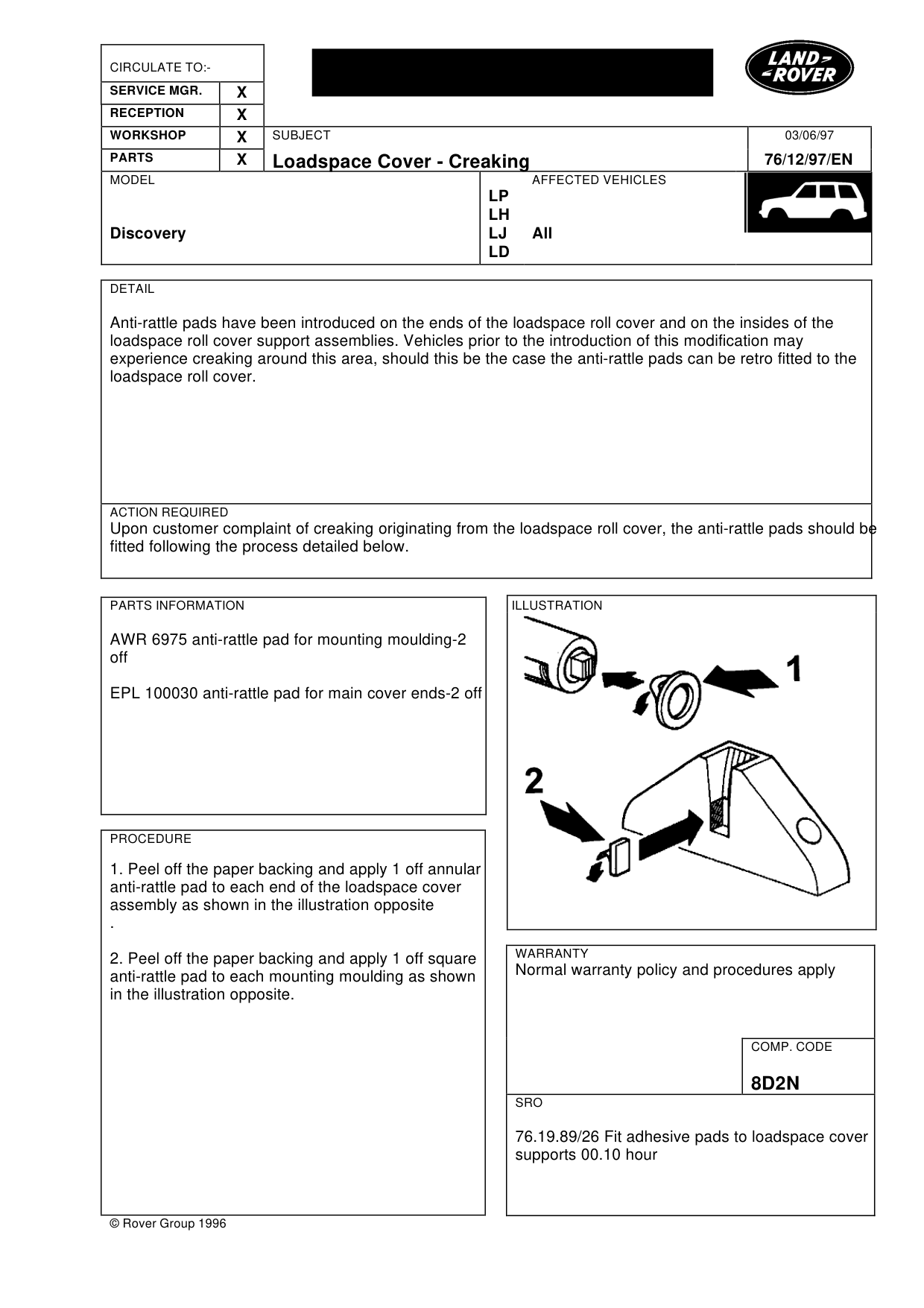

Loadspace Cover - Creaking

MODEL

Discovery

DETAIL

Anti-rattle pads have been introduced on the ends of the loadspace roll cover and on the insides of the loadspace roll cover support assemblies. Vehicles prior to the introduction of this modification may experience creaking around this area, should this be the case the anti-rattle pads can be retro fitted to the loadspace roll cover.

ACTION REQUIRED

Upon customer complaint of creaking originating from the loadspace roll cover, the anti-rattle pads should be fitted following the process detailed below.

PARTS INFORMATION

AWR 6975 anti-rattle pad for mounting moulding-2 off

EPL 100030 anti-rattle pad for main cover ends-2 off

PROCEDURE

1. Peel off the paper backing and apply 1 off annular anti-rattle pad to each end of the loadspace cover assembly as shown in the illustration opposite .

2. Peel off the paper backing and apply 1 off square anti-rattle pad to each mounting moulding as shown in the illustration opposite.

© Rover Group 1996

03/06/97

76/12/97/EN

AFFECTED VEHICLES

LP LH LJ All LD

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

8D2N

SRO

76.19.89/26 Fit adhesive pads to loadspace cover supports 00.10 hour
