New part introduction-torx screws

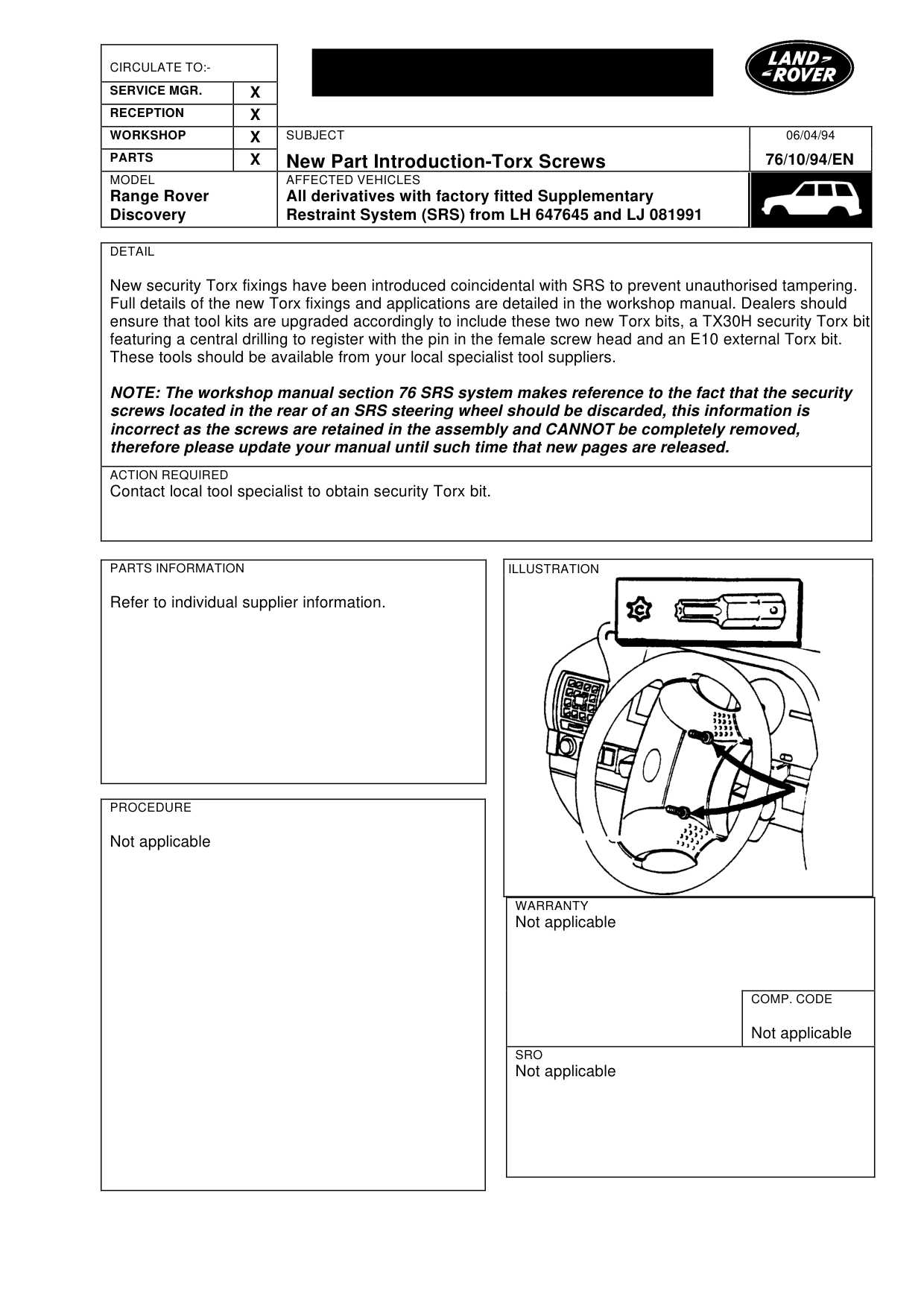

NEW PART INTRODUCTION-TORX SCREWS

Model

Range Rover Discovery

Affected vehicles

All derivatives with factory fitted Supplementary Restraint System (SRS) from LH 647645 and LJ 081991

Date

1994-04-06

Reference

06/04/94

Bulletin text

New Part Introduction-Torx Screws

MODEL AFFECTED VEHICLES

Range Rover All derivatives with factory fitted Supplementary Discovery Restraint System (SRS) from LH 647645 and LJ 081991

DETAIL

New security Torx fixings have been introduced coincidental with SRS to prevent unauthorised tampering. Full details of the new Torx fixings and applications are detailed in the workshop manual. Dealers should ensure that tool kits are upgraded accordingly to include these two new Torx bits, a TX30H security Torx bit featuring a central drilling to register with the pin in the female screw head and an E10 external Torx bit. These tools should be available from your local specialist tool suppliers.

NOTE: The workshop manual section 76 SRS system makes reference to the fact that the security screws located in the rear of an SRS steering wheel should be discarded, this information is incorrect as the screws are retained in the assembly and CANNOT be completely removed, therefore please update your manual until such time that new pages are released.

ACTION REQUIRED

Contact local tool specialist to obtain security Torx bit.

PARTS INFORMATION

Refer to individual supplier information.

PROCEDURE

Not applicable

06/04/94

76/10/94/EN

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
