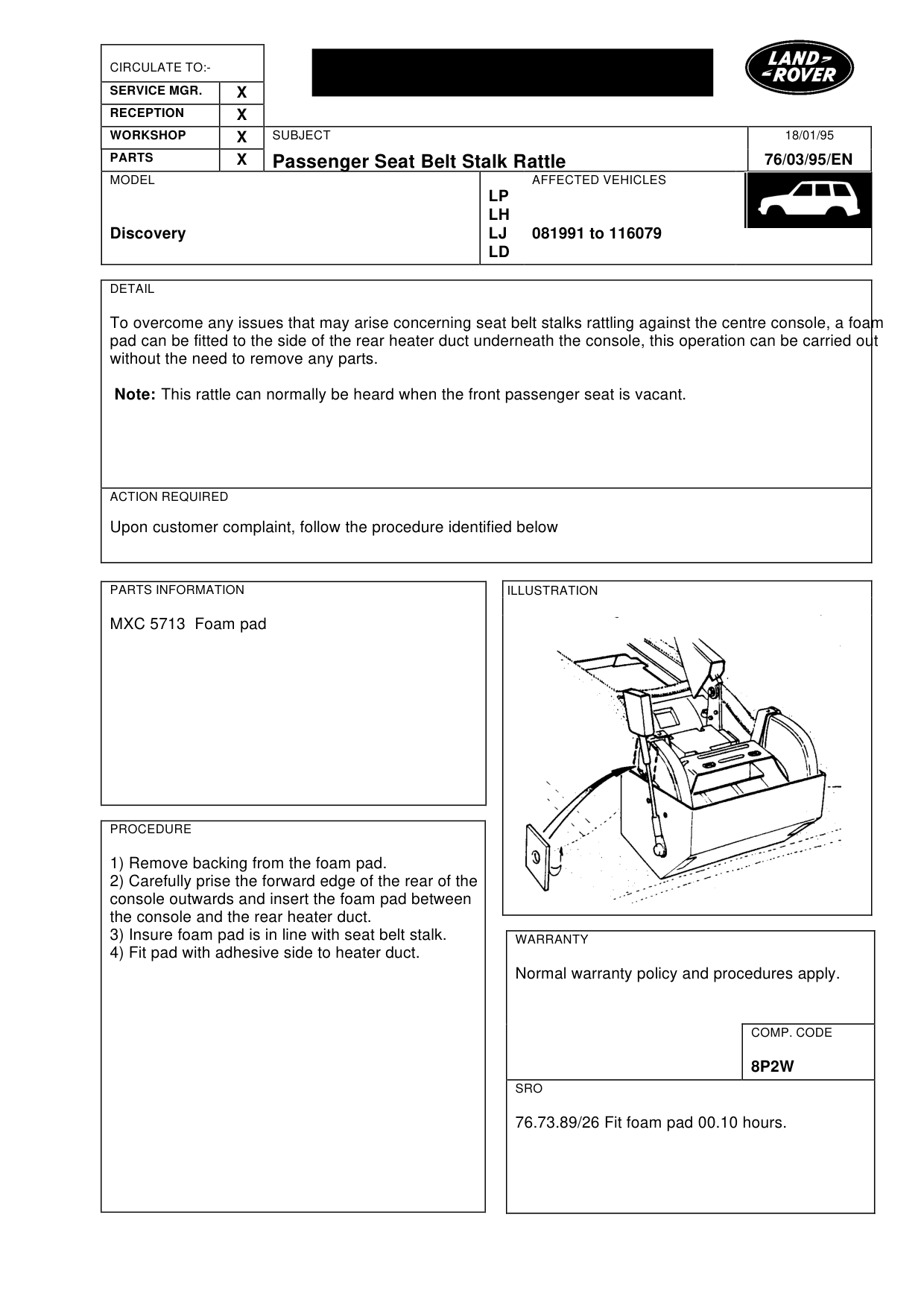

Passenger seat belt stalk rattle

PASSENGER SEAT BELT STALK RATTLE

Model

Discovery

Affected vehicles

081991 to 116079

Date

1995-01-18

Reference

18/01/95

Bulletin text

Passenger Seat Belt Stalk Rattle

MODEL

Discovery

DETAIL

To overcome any issues that may arise concerning seat belt stalks rattling against the centre console, a foam pad can be fitted to the side of the rear heater duct underneath the console, this operation can be carried out without the need to remove any parts.

Note: This rattle can normally be heard when the front passenger seat is vacant.

ACTION REQUIRED

Upon customer complaint, follow the procedure identified below

PARTS INFORMATION

MXC 5713 Foam pad

PROCEDURE

1) Remove backing from the foam pad. 2) Carefully prise the forward edge of the rear of the console outwards and insert the foam pad between the console and the rear heater duct. 3) Insure foam pad is in line with seat belt stalk. 4) Fit pad with adhesive side to heater duct.

18/01/95

76/03/95/EN

AFFECTED VEHICLES

LP LH LJ 081991 to 116079 LD

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

8P2W

SRO

76.73.89/26 Fit foam pad 00.10 hours.
