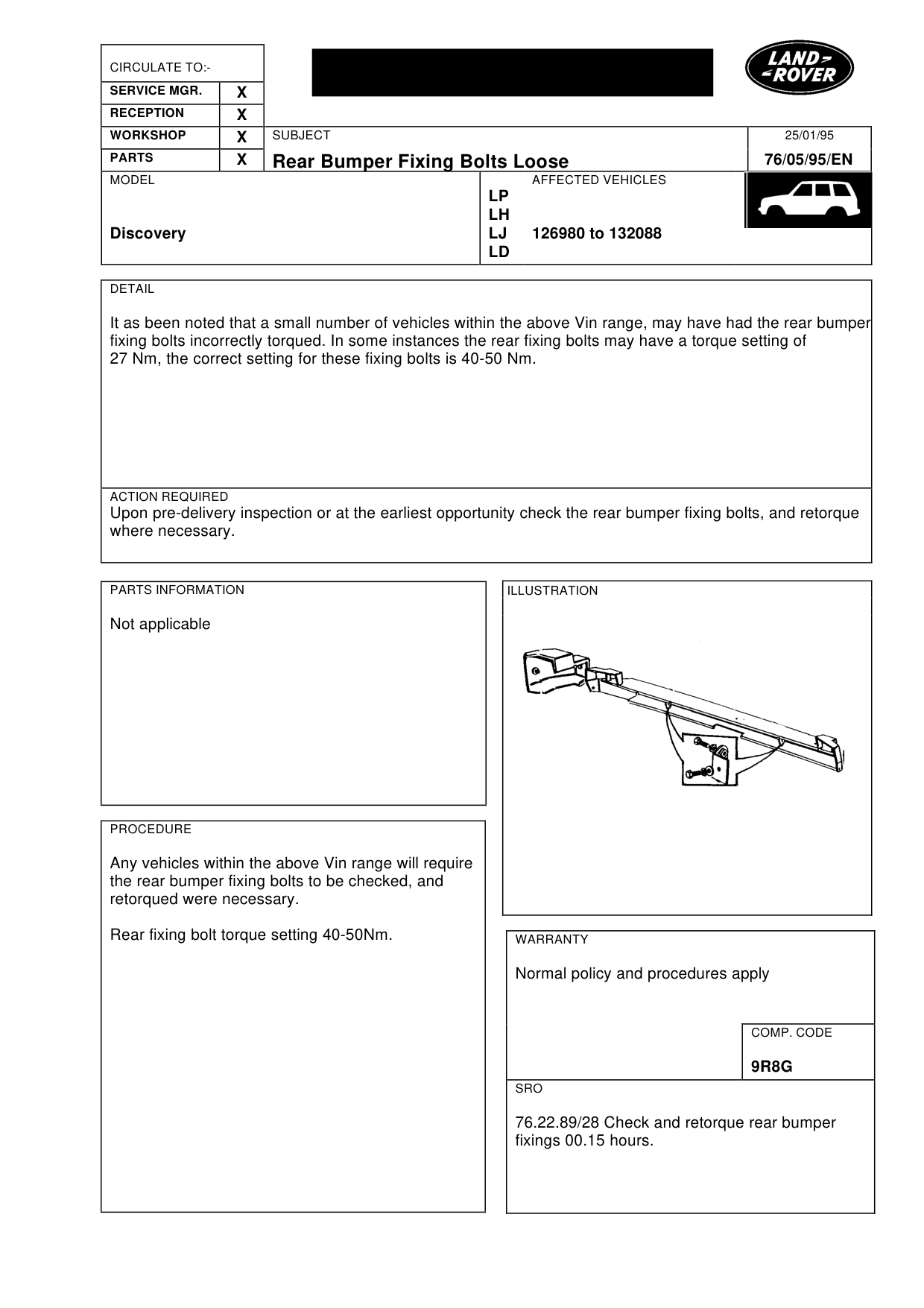

Rear bumper fixing bolts loose

REAR BUMPER FIXING BOLTS LOOSE

Model

Discovery

Affected vehicles

126980 to 132088

Date

1995-01-25

Reference

25/01/95

Bulletin text

Rear Bumper Fixing Bolts Loose

MODEL

Discovery

DETAIL

It as been noted that a small number of vehicles within the above Vin range, may have had the rear bumper fixing bolts incorrectly torqued. In some instances the rear fixing bolts may have a torque setting of 27 Nm, the correct setting for these fixing bolts is 40-50 Nm.

ACTION REQUIRED

Upon pre-delivery inspection or at the earliest opportunity check the rear bumper fixing bolts, and retorque where necessary.

PARTS INFORMATION

Not applicable

PROCEDURE

Any vehicles within the above Vin range will require the rear bumper fixing bolts to be checked, and retorqued were necessary.

Rear fixing bolt torque setting 40-50Nm.

25/01/95

76/05/95/EN

AFFECTED VEHICLES

LP LH LJ 126980 to 132088 LD

WARRANTY

Normal policy and procedures apply

COMP. CODE

9R8G

SRO

76.22.89/28 Check and retorque rear bumper fixings 00.15 hours.
