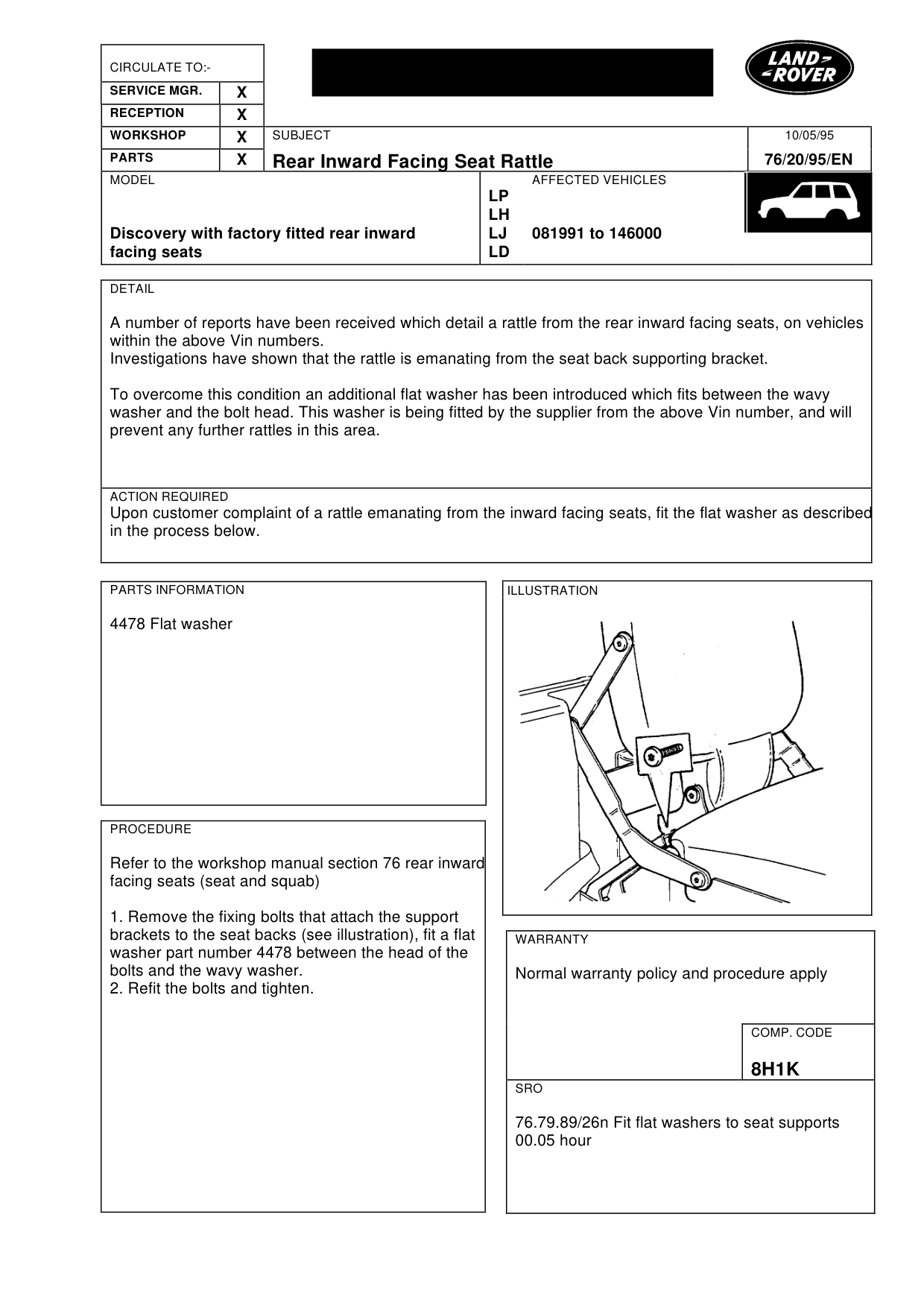

Rear inward facing seat rattle

REAR INWARD FACING SEAT RATTLE

Model

Discovery with factory fitted rear inward facing seats

Affected vehicles

081991 to 146000

Date

1995-05-10

Reference

10/05/95

Bulletin text

Rear Inward Facing Seat Rattle

MODEL

Discovery with factory fitted rear inward facing seats

DETAIL

A number of reports have been received which detail a rattle from the rear inward facing seats, on vehicles within the above Vin numbers. Investigations have shown that the rattle is emanating from the seat back supporting bracket.

To overcome this condition an additional flat washer has been introduced which fits between the wavy washer and the bolt head. This washer is being fitted by the supplier from the above Vin number, and will prevent any further rattles in this area.

ACTION REQUIRED

Upon customer complaint of a rattle emanating from the inward facing seats, fit the flat washer as described in the process below.

PARTS INFORMATION

4478 Flat washer

PROCEDURE

Refer to the workshop manual section 76 rear inward facing seats (seat and squab)

1. Remove the fixing bolts that attach the support brackets to the seat backs (see illustration), fit a flat washer part number 4478 between the head of the bolts and the wavy washer. 2. Refit the bolts and tighten.

10/05/95

76/20/95/EN

AFFECTED VEHICLES

LP LH LJ 081991 to 146000 LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

8H1K

SRO

76.79.89/26n Fit flat washers to seat supports 00.05 hour
