Side door water retention

SIDE DOOR WATER RETENTION

Model

Discovery

Affected vehicles

178119 to 179326 508909 to 510205

Date

1995-01-17

Reference

17/01/95

Bulletin text

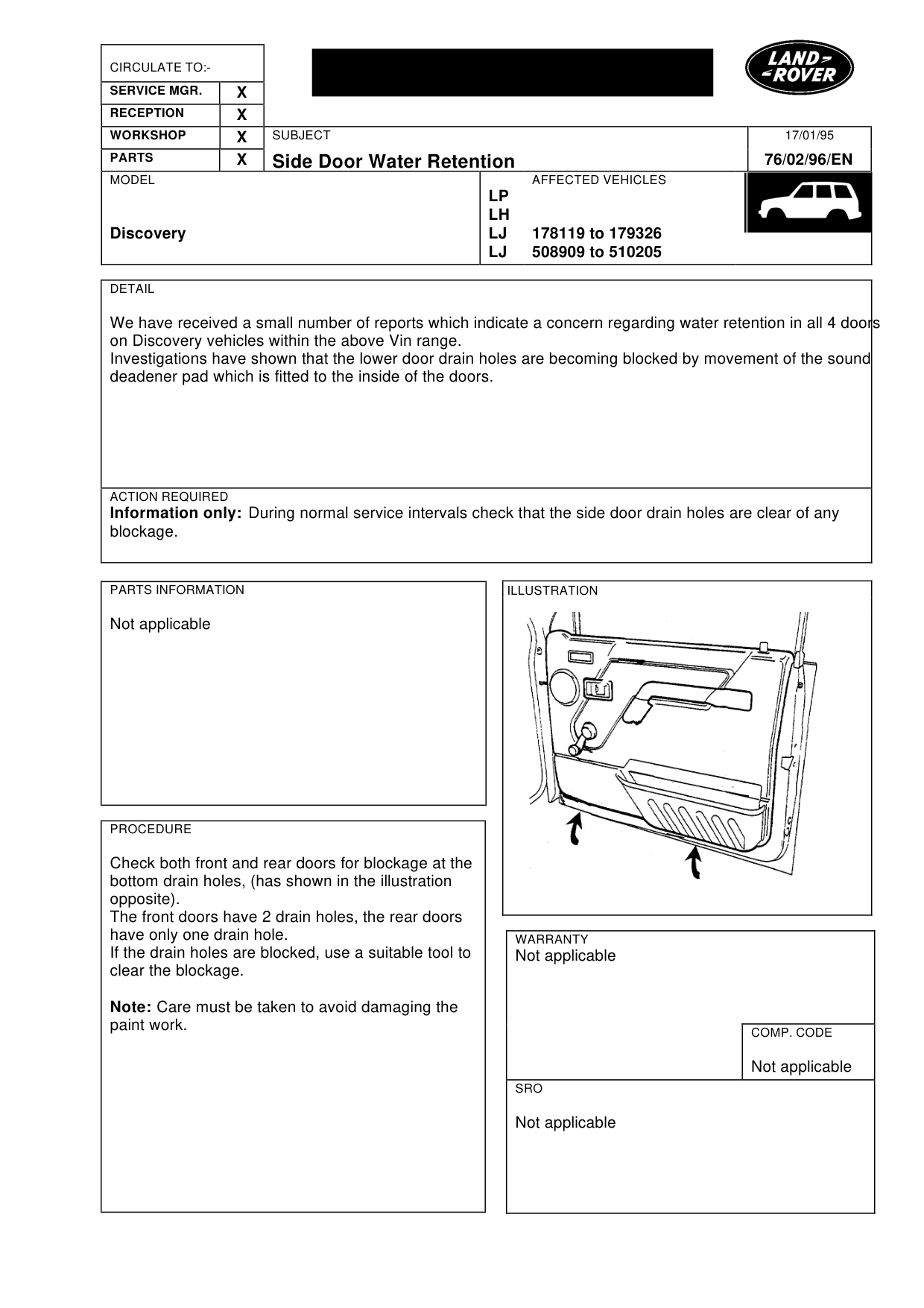

Side Door Water Retention

MODEL

Discovery

DETAIL

We have received a small number of reports which indicate a concern regarding water retention in all 4 doors on Discovery vehicles within the above Vin range. Investigations have shown that the lower door drain holes are becoming blocked by movement of the sound deadener pad which is fitted to the inside of the doors.

ACTION REQUIRED

Information only: During normal service intervals check that the side door drain holes are clear of any blockage.

PARTS INFORMATION

Not applicable

PROCEDURE

Check both front and rear doors for blockage at the bottom drain holes, (has shown in the illustration opposite). The front doors have 2 drain holes, the rear doors have only one drain hole. If the drain holes are blocked, use a suitable tool to clear the blockage.

Note: Care must be taken to avoid damaging the paint work.

17/01/95

76/02/96/EN

AFFECTED VEHICLES

LP LH LJ 178119 to 179326 LJ 508909 to 510205

WARRANTY

Not applicable

COMP. CODE

Not applicable

SRO

Not applicable
