Water ingress into vehicle

WATER INGRESS INTO VEHICLE

Model

Discovery

Affected vehicles

All derivatives

Reference

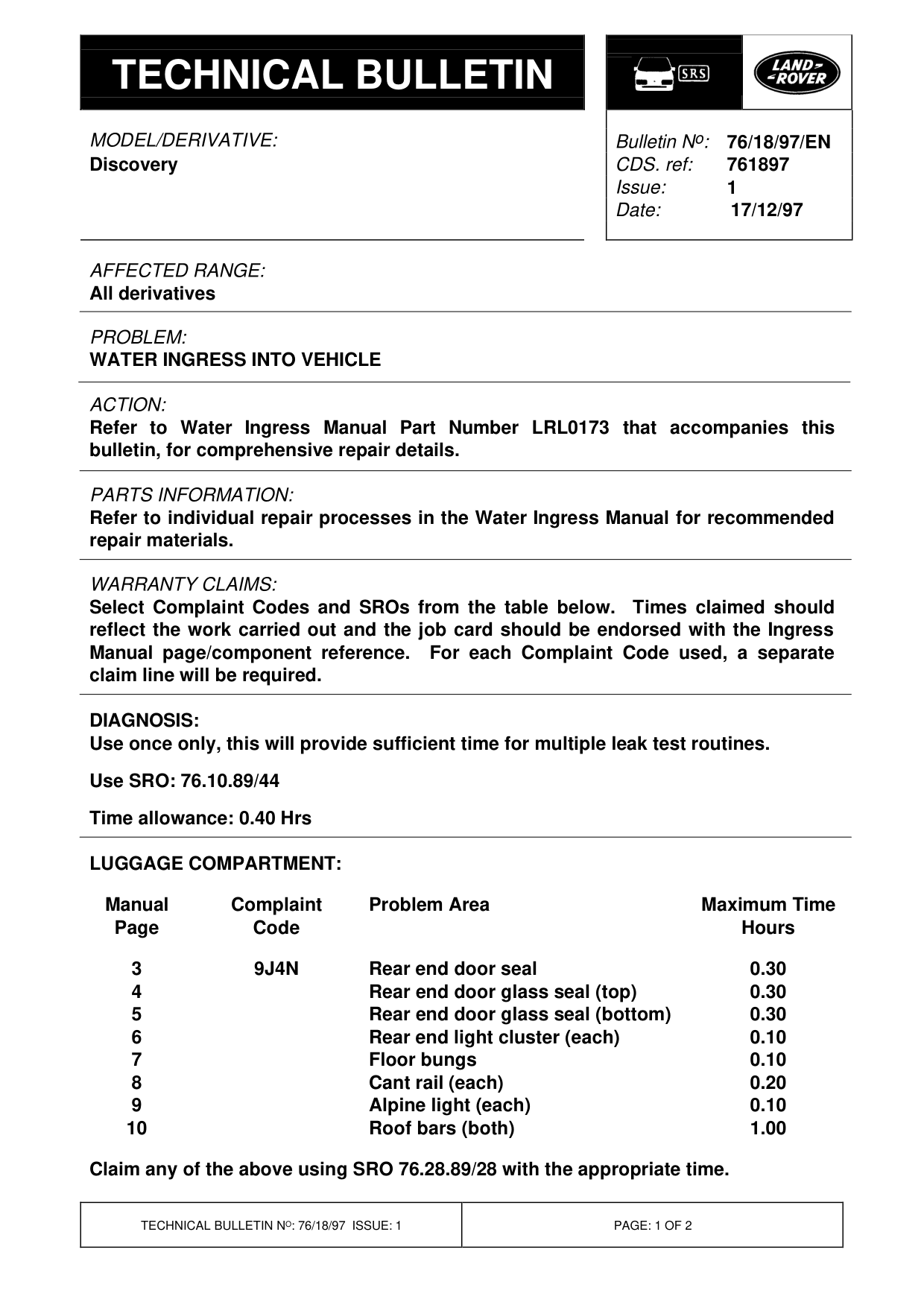

Bulletin 76, CDS ref 761897

Bulletin text

Discovery

AFFECTED RANGE:

All derivatives

PROBLEM:

WATER INGRESS INTO VEHICLE

ACTION:

Refer to Water Ingress Manual Part Number LRL0173 that accompanies this bulletin, for comprehensive repair details.

PARTS INFORMATION:

Refer to individual repair processes in the Water Ingress Manual for recommended repair materials.

WARRANTY CLAIMS: Select Complaint Codes and SROs from the table below. Times claimed should reflect the work carried out and the job card should be endorsed with the Ingress Manual page/component reference. For each Complaint Code used, a separate claim line will be required.

DIAGNOSIS: Use once only, this will provide sufficient time for multiple leak test routines.

Use SRO: 76.10.89/44

Time allowance: 0.40 Hrs

LUGGAGE COMPARTMENT:

Manual Complaint Problem Area Page Code

3 9J4N Rear end door seal 4 Rear end door glass seal (top) 5 Rear end door glass seal (bottom) 6 Rear end light cluster (each) 7 Floor bungs 8 Cant rail (each) 9 Alpine light (each) 10 Roof bars (both)

Claim any of the above using SRO 76.28.89/28 with the appropriate time.

Bulletin N o : 76/18/97/EN 761897 1 17/12/97

Maximum Time Hours

0.30 0.30 0.30 0.10 0.10 0.20 0.10 1.00

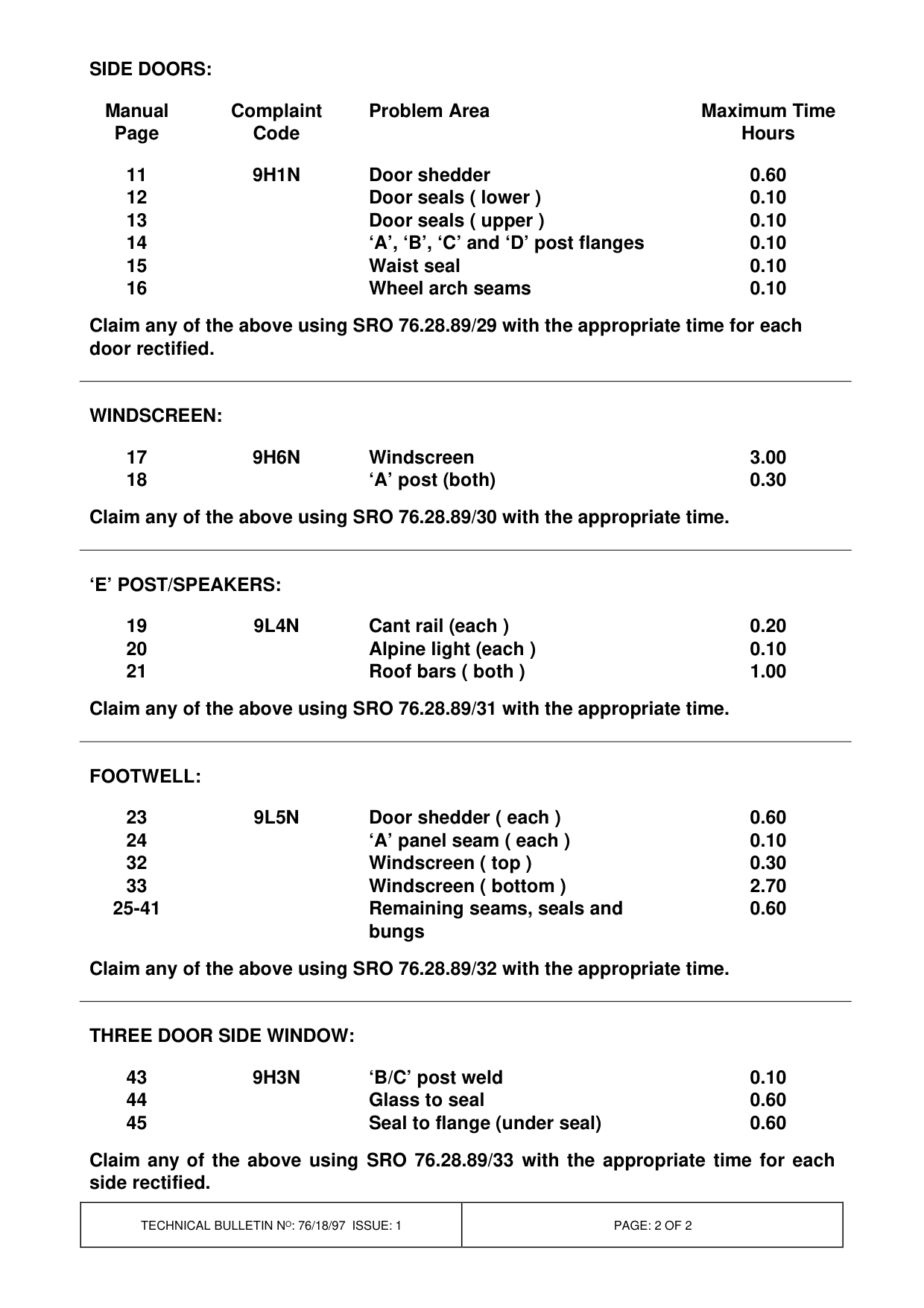

SIDE DOORS:

Manual Complaint Problem Area Page Code

11 9H1N Door shedder 12 Door seals ( lower ) 13 Door seals ( upper ) 14 ‘A’, ‘B’, ‘C’ and ‘D’ post flanges 15 Waist seal 16 Wheel arch seams

Claim any of the above using SRO 76.28.89/29 with the appropriate time for each door rectified.

WINDSCREEN:

17 9H6N Windscreen 18 ‘A’ post (both)

Claim any of the above using SRO 76.28.89/30 with the appropriate time.

‘E’ POST/SPEAKERS:

19 9L4N Cant rail (each ) 20 Alpine light (each ) 21 Roof bars ( both )

Claim any of the above using SRO 76.28.89/31 with the appropriate time.

FOOTWELL:

23 9L5N Door shedder ( each ) 24 ‘A’ panel seam ( each ) 32 Windscreen ( top ) 33 Windscreen ( bottom ) 25-41 Remaining seams, seals and bungs

Claim any of the above using SRO 76.28.89/32 with the appropriate time.

THREE DOOR SIDE WINDOW:

43 9H3N ‘B/C’ post weld 44 Glass to seal 45 Seal to flange (under seal)

Claim any of the above using SRO 76.28.89/33 with the appropriate time for each side rectified.

Maximum Time Hours

0.60 0.10 0.10 0.10 0.10 0.10

3.00 0.30

0.20 0.10 1.00

0.60 0.10 0.30 2.70 0.60

0.10 0.60 0.60
