Windscreen leaks/windnoise

WINDSCREEN LEAKS/WINDNOISE

Model

Range Rover Discovery

Affected vehicles

All Range Rover derivatives from LH 647645 All Discovery derivatives from LJ 081991

Date

1994-04-20

Reference

20/04/94

Bulletin text

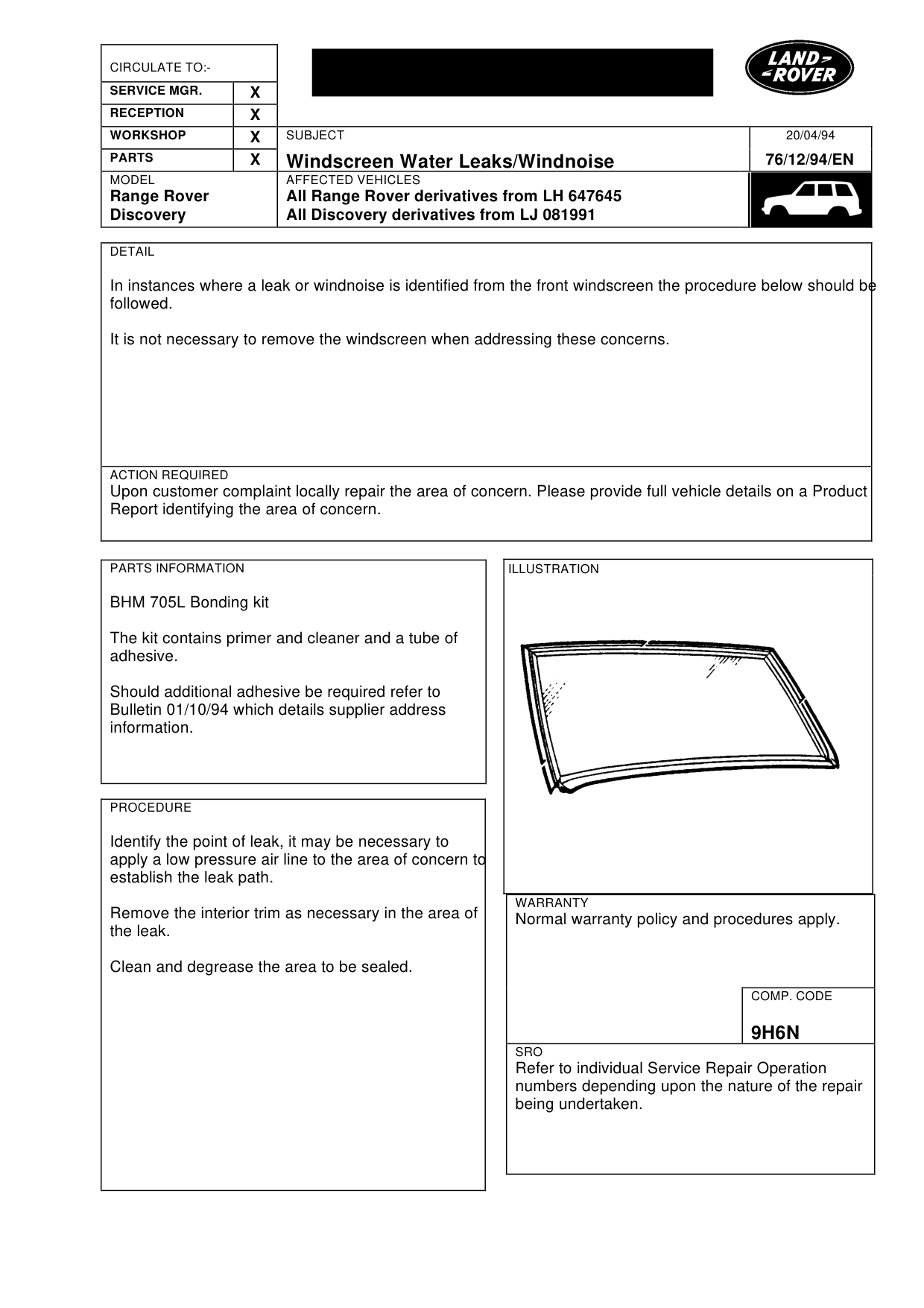

Windscreen Water Leaks/Windnoise

MODEL AFFECTED VEHICLES

Range Rover All Range Rover derivatives from LH 647645 Discovery All Discovery derivatives from LJ 081991

DETAIL

In instances where a leak or windnoise is identified from the front windscreen the procedure below should be followed.

It is not necessary to remove the windscreen when addressing these concerns.

ACTION REQUIRED

Upon customer complaint locally repair the area of concern. Please provide full vehicle details on a Product Report identifying the area of concern.

PARTS INFORMATION

BHM 705L Bonding kit

The kit contains primer and cleaner and a tube of adhesive.

Should additional adhesive be required refer to Bulletin 01/10/94 which details supplier address information.

PROCEDURE

Identify the point of leak, it may be necessary to apply a low pressure air line to the area of concern to establish the leak path.

Remove the interior trim as necessary in the area of the leak.

Clean and degrease the area to be sealed.

20/04/94

76/12/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

9H6N

SRO

Refer to individual Service Repair Operation numbers depending upon the nature of the repair being undertaken.
