Electrical diagnostic aid

ELECTRICAL DIAGNOSTIC AID

Model

New Range Rover Discovery MPI Engine Derivatives Defender

Affected vehicles

302183 to 307055 119467 to 138694 953480 to 960148

Date

1996-03-20

Reference

20/03/96

Bulletin text

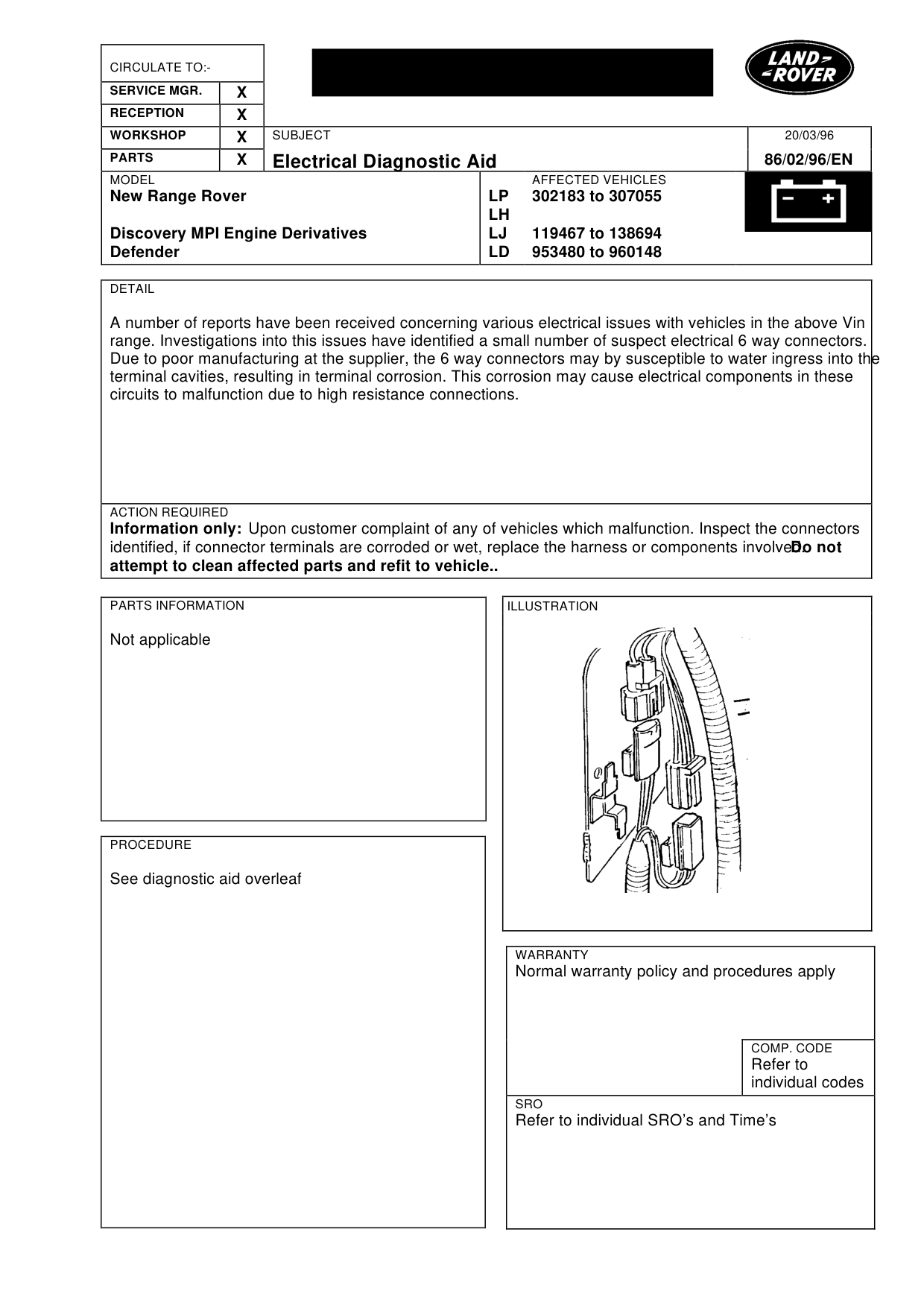

Electrical Diagnostic Aid

MODEL

New Range Rover

Discovery MPI Engine Derivatives Defender

DETAIL

A number of reports have been received concerning various electrical issues with vehicles in the above Vin range. Investigations into this issues have identified a small number of suspect electrical 6 way connectors. Due to poor manufacturing at the supplier, the 6 way connectors may by susceptible to water ingress into the terminal cavities, resulting in terminal corrosion. This corrosion may cause electrical components in these circuits to malfunction due to high resistance connections.

ACTION REQUIRED

Information only: Upon customer complaint of any of vehicles which malfunction. Inspect the connectors identified, if connector terminals are corroded or wet, replace the harness or components involved. attempt to clean affected parts and refit to vehicle..

PARTS INFORMATION

Not applicable

PROCEDURE

See diagnostic aid overleaf

20/03/96

86/02/96/EN

AFFECTED VEHICLES

LP 302183 to 307055 LH LJ 119467 to 138694 LD 953480 to 960148

Do not

WARRANTY

Normal warranty policy and procedures apply

COMP. CODE

Refer to individual codes

SRO

Refer to individual SRO’s and Time’s

Electrical Diagnostic Aid

MODEL

New Range Rover

Discovery MPI Derivatives Defender

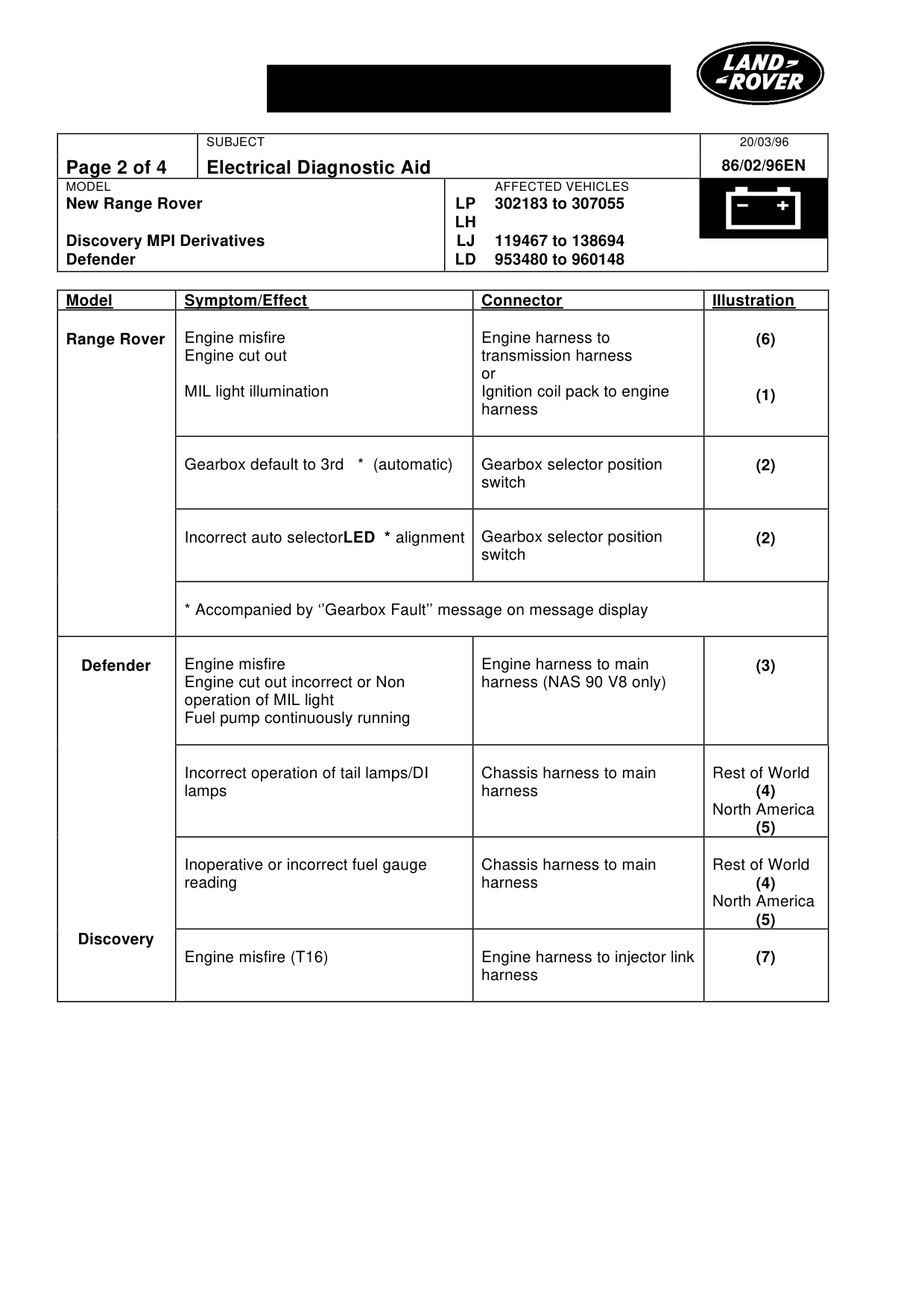

Model Symptom/Effect

Engine misfire Range Rover Engine cut out

MIL light illumination

Gearbox default to 3rd * (automatic)

Incorrect auto selector LED * alignment

* Accompanied by ‘’Gearbox Fault’’ message on message display

Engine misfire Defender Engine cut out incorrect or Non operation of MIL light Fuel pump continuously running

Incorrect operation of tail lamps/DI lamps

Inoperative or incorrect fuel gauge reading

Discovery Engine misfire (T16)

20/03/96 86/02/96EN

AFFECTED VEHICLES

LP 302183 to 307055 LH LJ 119467 to 138694 LD 953480 to 960148

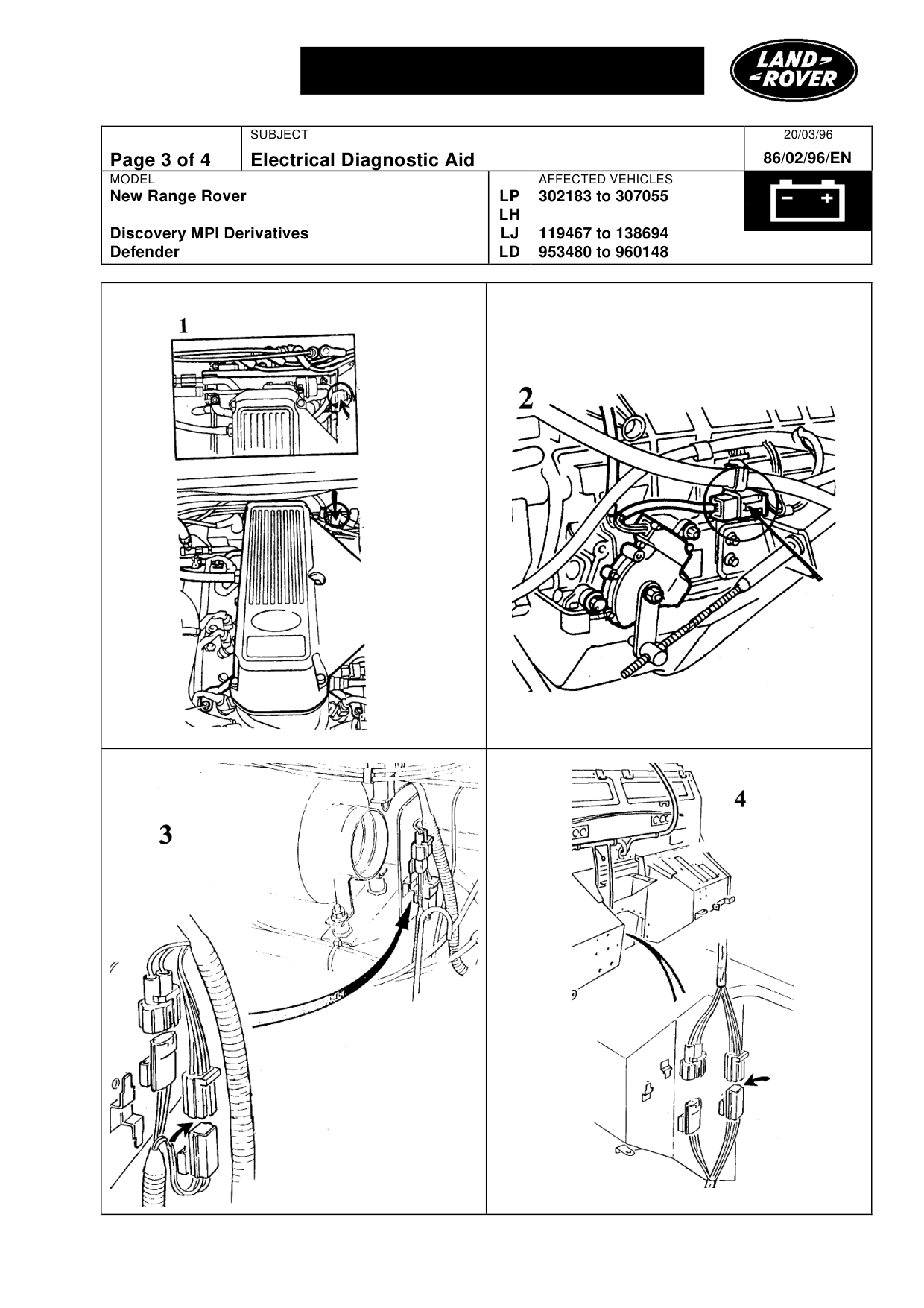

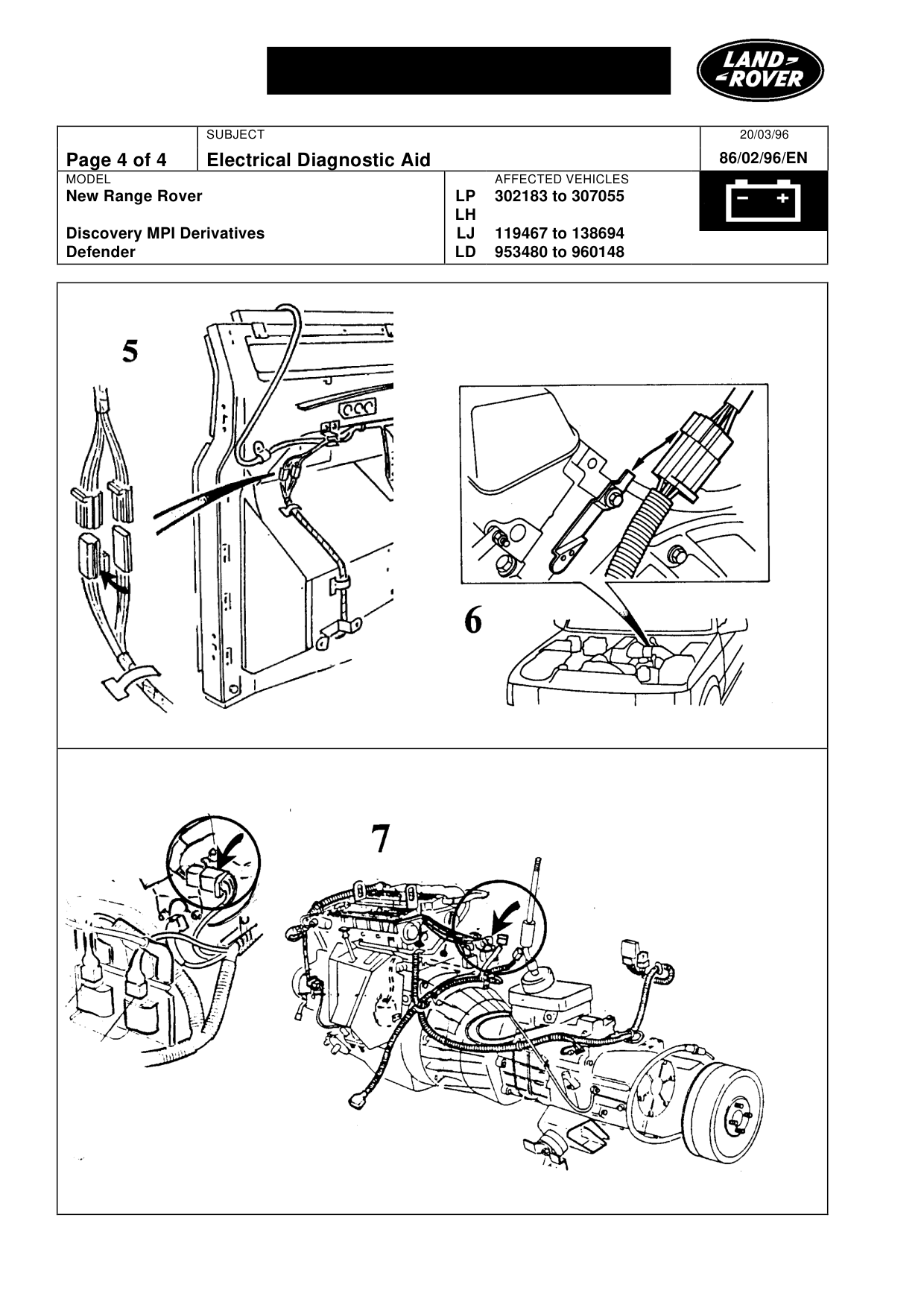

Connector

Engine harness to (6) transmission harness or Ignition coil pack to engine (1) harness

Gearbox selector position (2) switch

Gearbox selector position (2) switch

Engine harness to main (3) harness (NAS 90 V8 only)

Chassis harness to main Rest of World harness (4) North America (5)

Chassis harness to main Rest of World harness (4) North America (5)

Engine harness to injector link (7) harness

Electrical Diagnostic Aid

MODEL

New Range Rover

Discovery MPI Derivatives Defender

20/03/96 86/02/96/EN

AFFECTED VEHICLES

LP 302183 to 307055 LH LJ 119467 to 138694 LD 953480 to 960148

Electrical Diagnostic Aid

MODEL

New Range Rover

Discovery MPI Derivatives Defender

20/03/96 86/02/96/EN

AFFECTED VEHICLES

LP 302183 to 307055 LH LJ 119467 to 138694 LD 953480 to 960148
