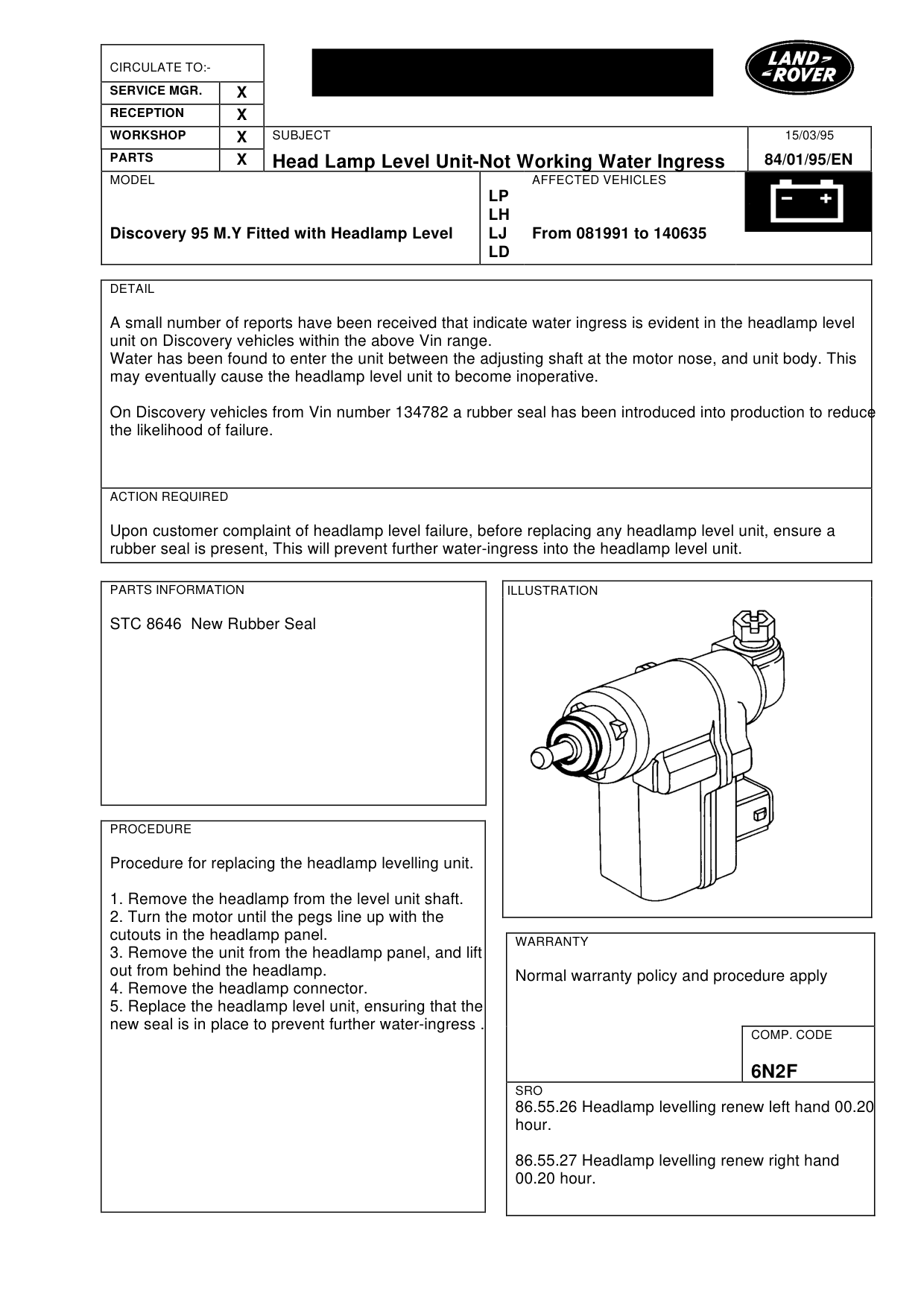

Headlamp level unit-water ingress

HEADLAMP LEVEL UNIT-WATER INGRESS

Model

Discovery 95 M.Y Fitted with Headlamp Level

Affected vehicles

From 081991 to 140635

Date

1995-03-15

Reference

15/03/95

Bulletin text

Head Lamp Level Unit-Not Working Water Ingress

MODEL

Discovery 95 M.Y Fitted with Headlamp Level

DETAIL

A small number of reports have been received that indicate water ingress is evident in the headlamp level unit on Discovery vehicles within the above Vin range. Water has been found to enter the unit between the adjusting shaft at the motor nose, and unit body. This may eventually cause the headlamp level unit to become inoperative.

On Discovery vehicles from Vin number 134782 a rubber seal has been introduced into production to reduce the likelihood of failure.

ACTION REQUIRED

Upon customer complaint of headlamp level failure, before replacing any headlamp level unit, ensure a rubber seal is present, This will prevent further water-ingress into the headlamp level unit.

PARTS INFORMATION

STC 8646 New Rubber Seal

PROCEDURE

Procedure for replacing the headlamp levelling unit.

1. Remove the headlamp from the level unit shaft. 2. Turn the motor until the pegs line up with the cutouts in the headlamp panel. 3. Remove the unit from the headlamp panel, and lift out from behind the headlamp. 4. Remove the headlamp connector. 5. Replace the headlamp level unit, ensuring that the new seal is in place to prevent further water-ingress .

15/03/95

84/01/95/EN

AFFECTED VEHICLES

LP LH LJ From 081991 to 140635 LD

WARRANTY

Normal warranty policy and procedure apply

COMP. CODE

6N2F

SRO

86.55.26 Headlamp levelling renew left hand 00.20 hour.

86.55.27 Headlamp levelling renew right hand 00.20 hour.
