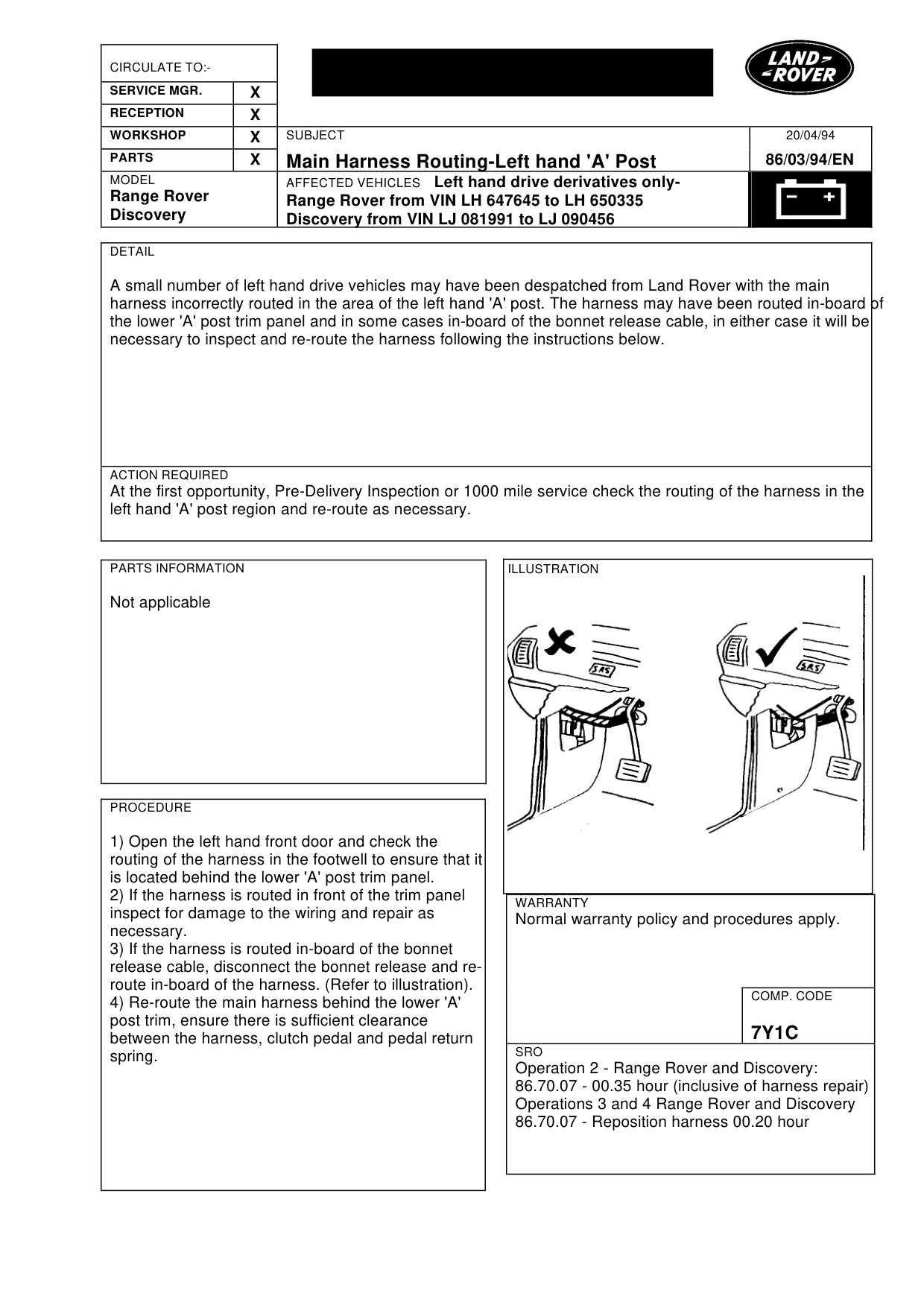

Main harness routing-left hand 'a' post

MAIN HARNESS ROUTING-LEFT HAND 'A' POST

Model

Range Rover Discovery

Date

1994-04-20

Reference

20/04/94

Bulletin text

Main Harness Routing-Left hand 'A' Post AFFECTED VEHICLES Left hand drive derivatives only-

MODEL

Range Rover Range Rover from VIN LH 647645 to LH 650335 Discovery Discovery from VIN LJ 081991 to LJ 090456

DETAIL

A small number of left hand drive vehicles may have been despatched from Land Rover with the main harness incorrectly routed in the area of the left hand 'A' post. The harness may have been routed in-board of the lower 'A' post trim panel and in some cases in-board of the bonnet release cable, in either case it will be necessary to inspect and re-route the harness following the instructions below.

ACTION REQUIRED

At the first opportunity, Pre-Delivery Inspection or 1000 mile service check the routing of the harness in the left hand 'A' post region and re-route as necessary.

PARTS INFORMATION

Not applicable

PROCEDURE

1) Open the left hand front door and check the routing of the harness in the footwell to ensure that it is located behind the lower 'A' post trim panel. 2) If the harness is routed in front of the trim panel inspect for damage to the wiring and repair as necessary. 3) If the harness is routed in-board of the bonnet release cable, disconnect the bonnet release and reroute in-board of the harness. (Refer to illustration). 4) Re-route the main harness behind the lower 'A' post trim, ensure there is sufficient clearance between the harness, clutch pedal and pedal return spring.

20/04/94

86/03/94/EN

WARRANTY

Normal warranty policy and procedures apply.

COMP. CODE

7Y1C

SRO

Operation 2 - Range Rover and Discovery: 86.70.07 - 00.35 hour (inclusive of harness repair) Operations 3 and 4 Range Rover and Discovery 86.70.07 - Reposition harness 00.20 hour
